Boxing Rear Lower Control Arms

Click picture to see larger one
(Please wait while loading…large page)

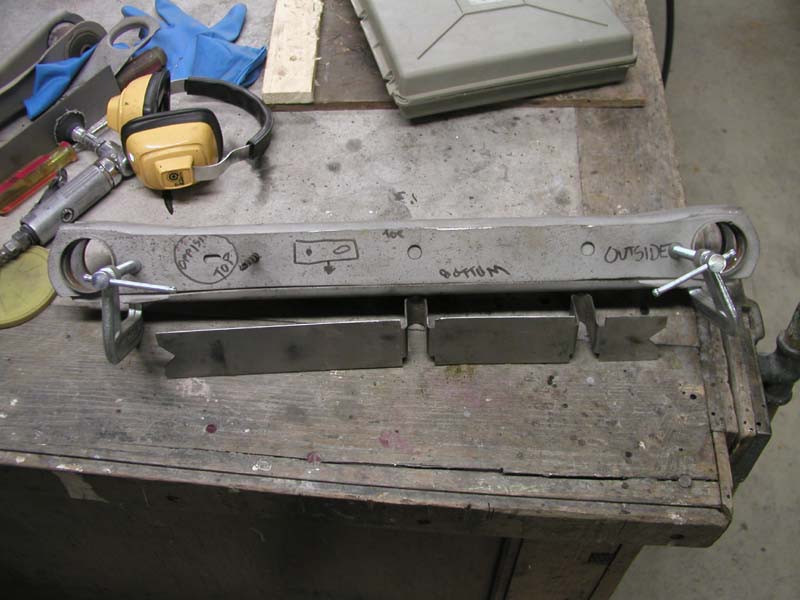

	The first step is to locate the holes for sway bars.I took a set of rear lower control arms that were to pitted for resale. I cut the sides out and now use then for a jig to locate the sway bar holes.If you look closely or click the picture to enlarge it you will see that a drill is being used to locate the jig in the correct location to mark the sway bar bolt holes

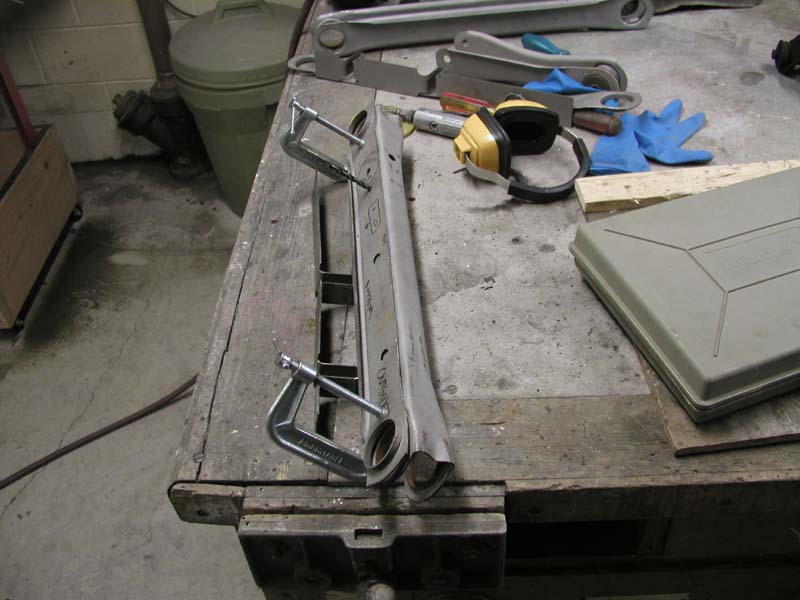

	This is just another view of the “jig” clamped in place with the drill locating the “jig” on the lower control arm to be drilled for sway bar bolt holes.A stepped drill bit is used for a nice clean holes.Both sides of the holes are ground so there are no burrs.

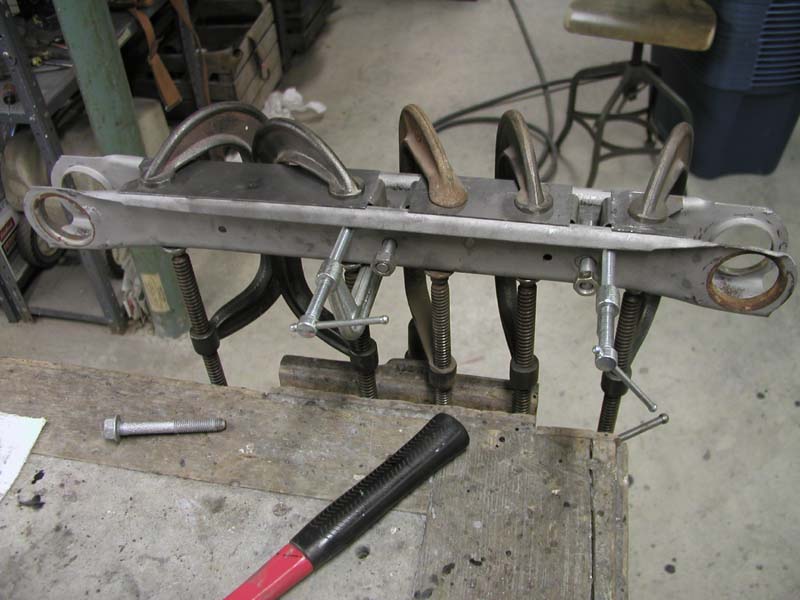

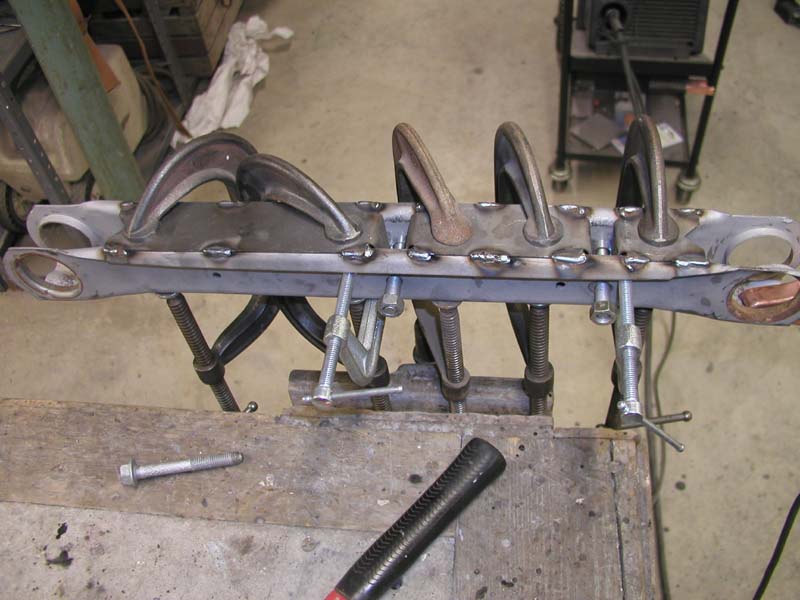

	Many clamps are used to hold the insert in the correct location.Bolts are inserted through the sway bar bolt holes.Clamps are placed on the sides to hold the arm tight to the insert.

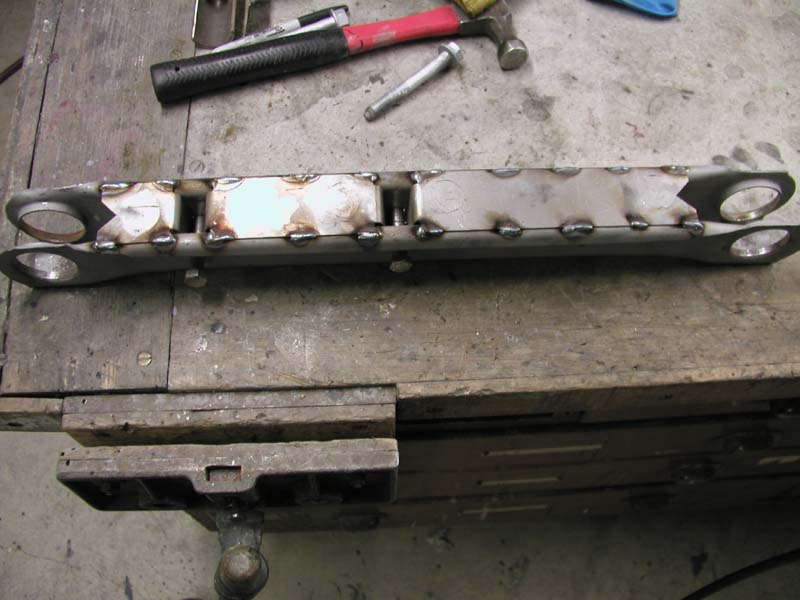

	Small “stitch” welds are made in alternating positions to avoid an warping of the arm
	Additional “stitch” welds are made, once the clamps have been removed to provide room to make those welds.

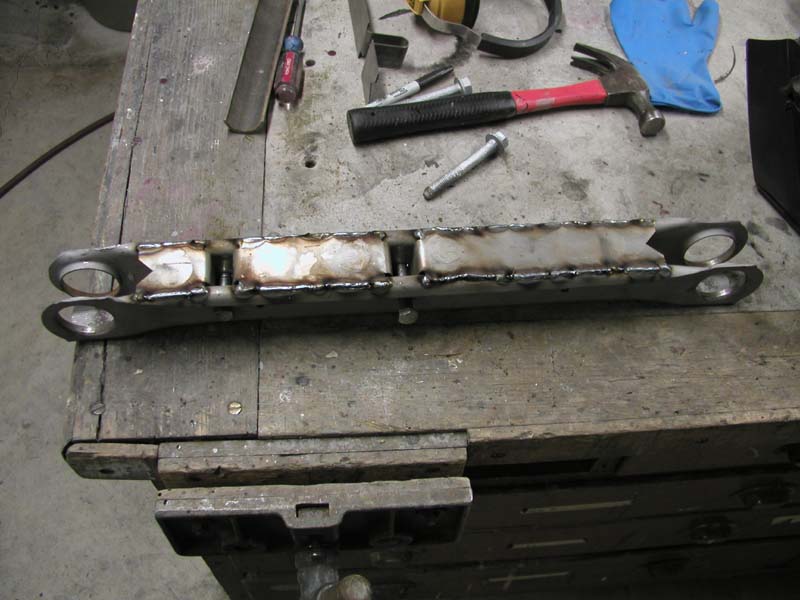

	The “Stitch” welds are then all tied together into one bead with additional “stitch” welds. All these small welds are done to avoid any warping of the arm. Temperatures are kept as low as possible and still get good penetration on the welds.

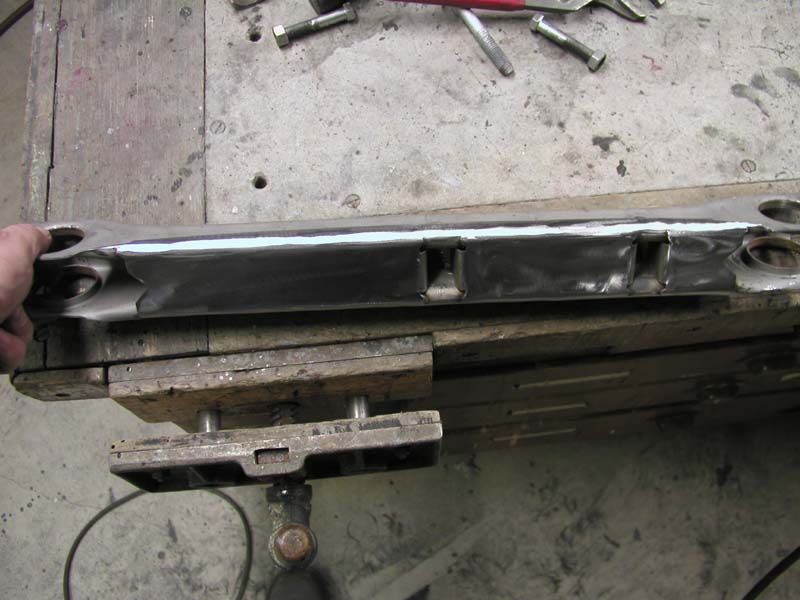

	The weld bead is then ground to a smooth finish, the entire length of the control arm. This gives the appearance that the arm is all one piece.

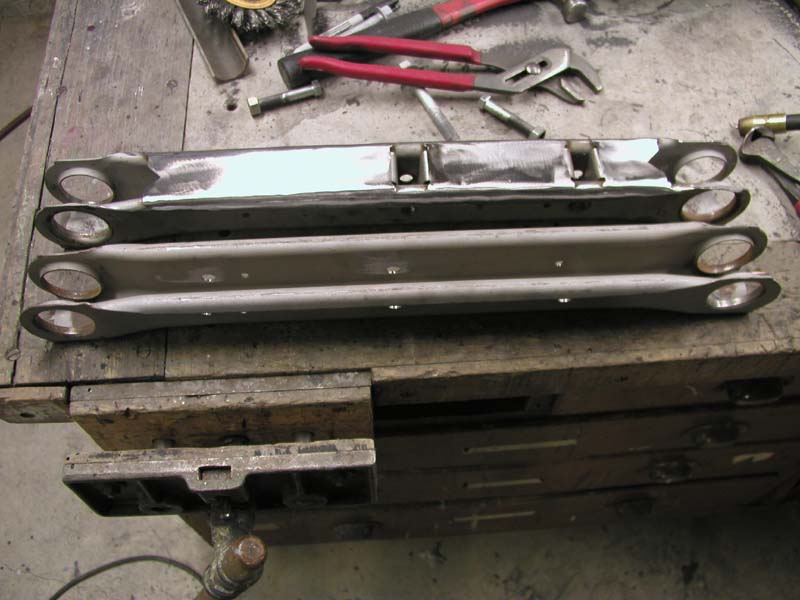

	This is a before and after shot.
	Ready for Powder Coat

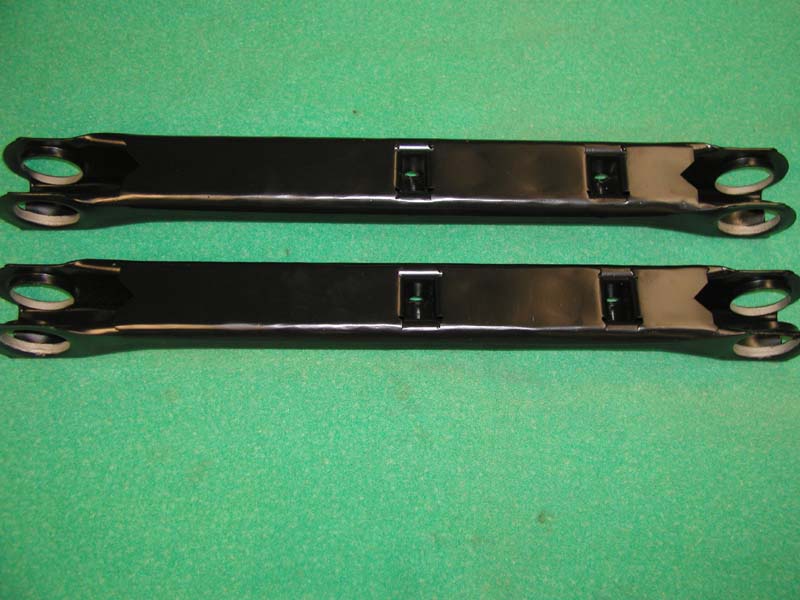

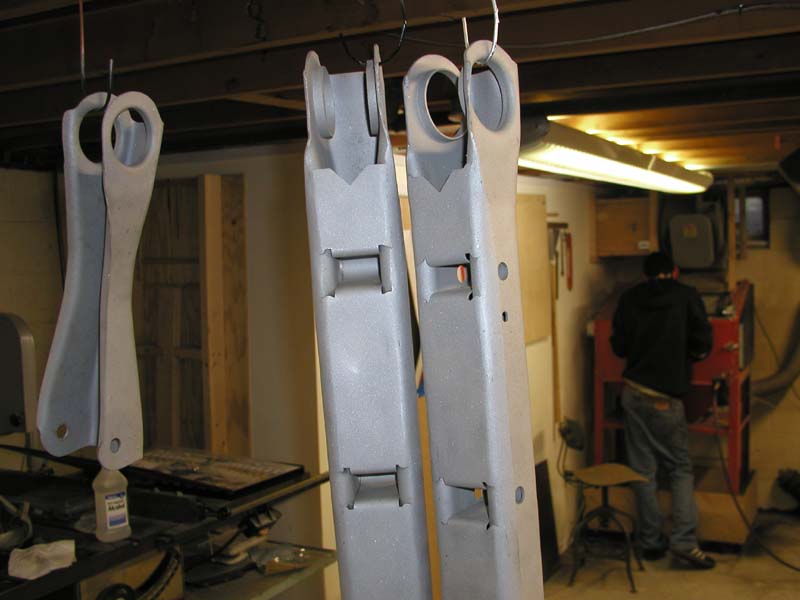

	After Powder Coat

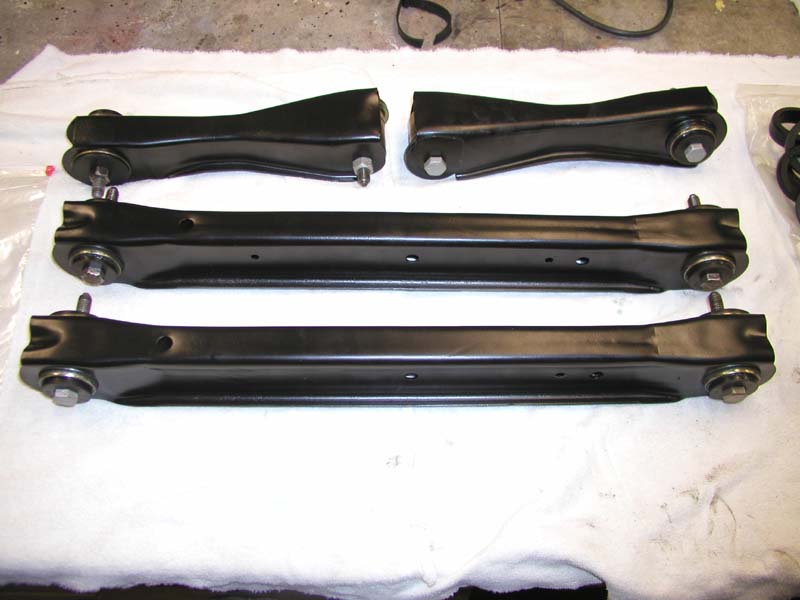

	This is a set of upper rear control arms that were converted to 12-bolt uppers and a set of lower boxed arms that were done for a customer. Bushings have been installed for the price of the bushings, no charge for the install. Are you my next customer? I have a money back guarantee (sorry, does not include shipping)
