Bushing Hole Dimension

Click picture to see larger image

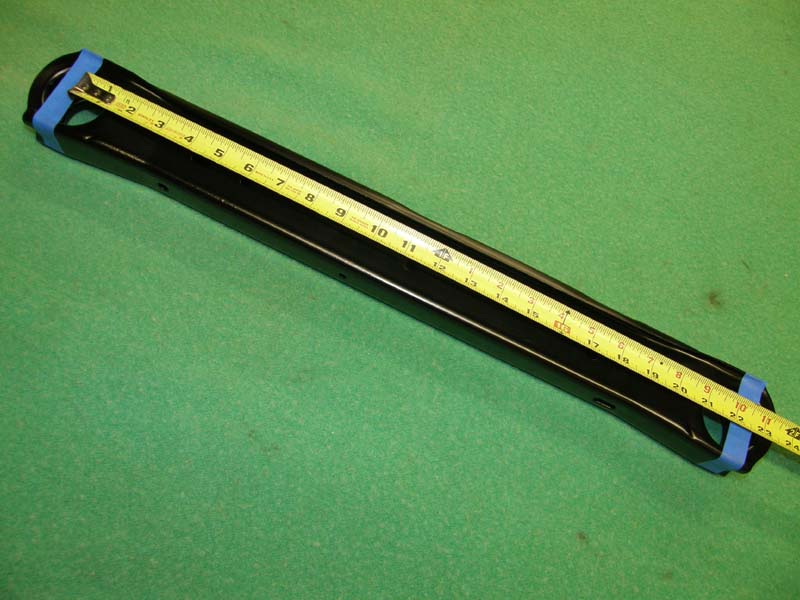

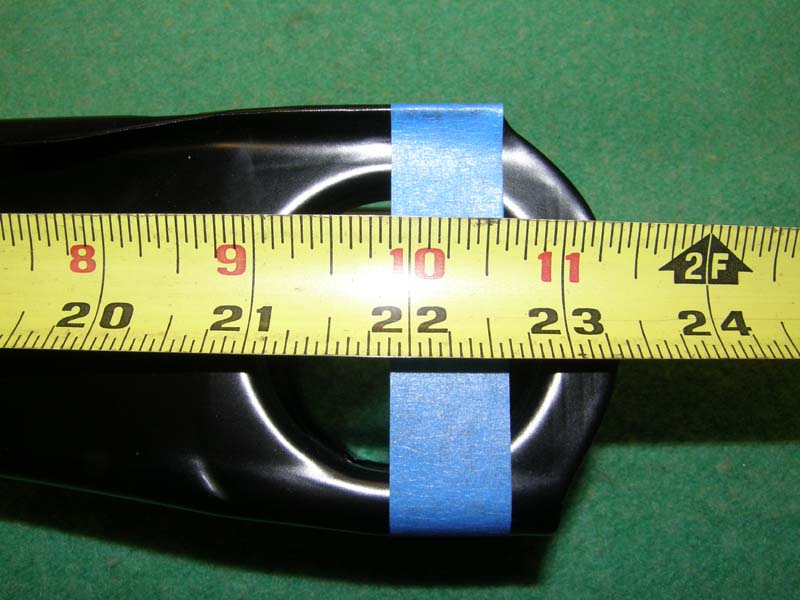

 Bushing Hole Spacing Rear Control Arms PC200001  Bushing Hole Spacing Rear Control Arms PC200003
Center to center bushing hole dimension for 1964 thru 1972 rear lower control arms is 21 7/8 inches

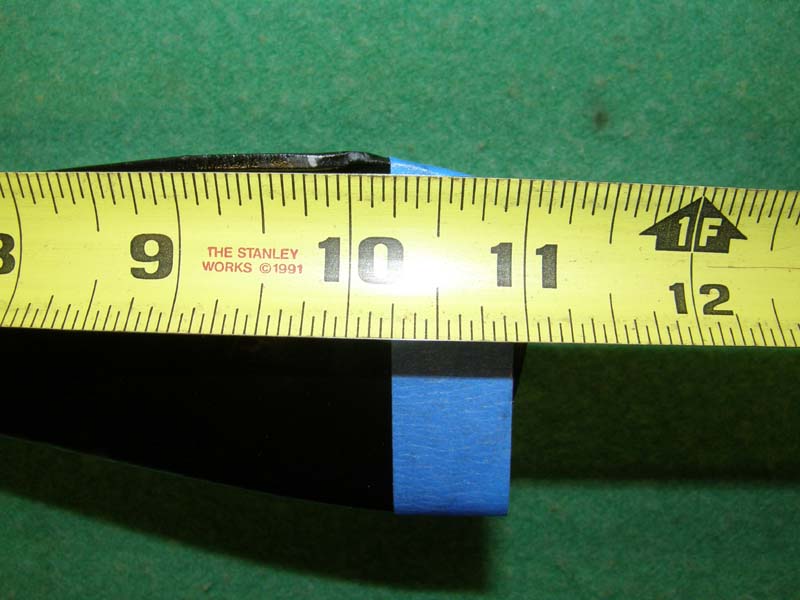

 Bushing Hole Spacing Rear Control Arms PC200005  Bushing Hole Spacing Rear Control Arms PC200007
Center to center bushing hole dimension for 1968 thru 1972 rear upper control arms is 10 1/4 inches

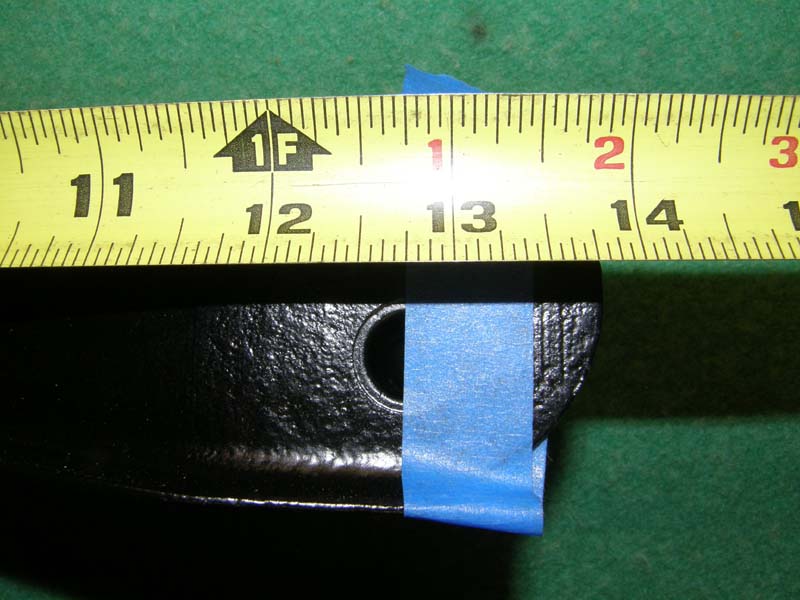

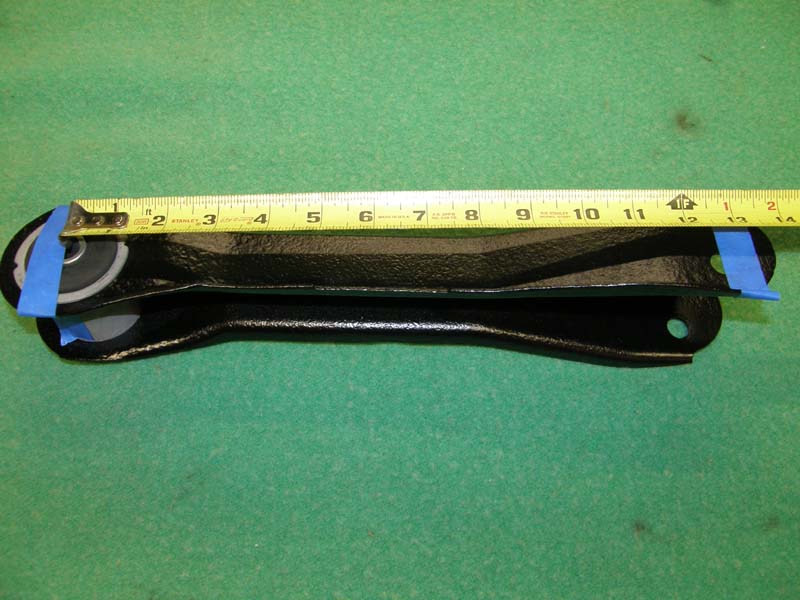

 Bushing Hole Spacing Rear Control Arms PC200008  Bushing Hole Spacing Rear Control Arms PC200012
Center to center bushing hole dimension for 1964 thru 1967 rear upper control arms is 12 3/4 inches
