Late Style Frame Braces

Click picture to see larger image

Late Style Frame Braces Both Braces 001 This view is from standing in the middle of the frame looking towards the rear of the vehicle. The frame braces run from the Upper Control arm frame mount to the lower control arm frame mount.
These pictures were supplied by Ray Griffin and you can see his vehicle by clicking on this text.

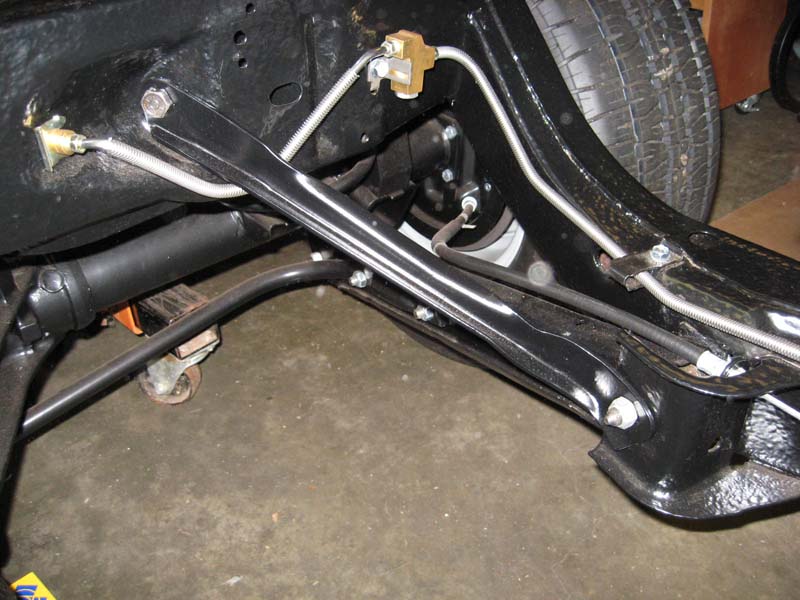

Late Style Frame Braces Left Side Full View 001 This view is looking at the left (driver’s side) brace. From the middle of the chassis.

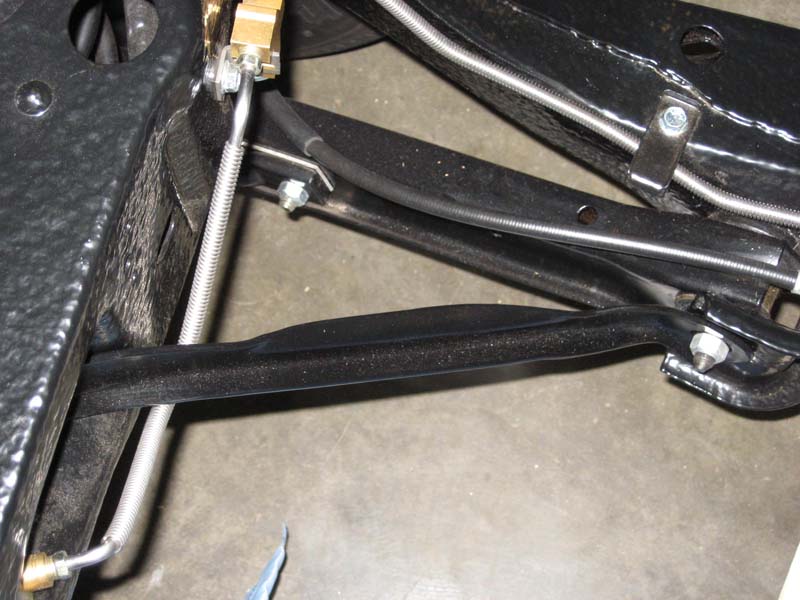

Late Style Frame Braces Left Side Full View 002 This view is looking at the left (driver’s side) brace. Looking directly down at it, you can see the front part of the lower control arm with the emergency brake cable on top of the control arm.

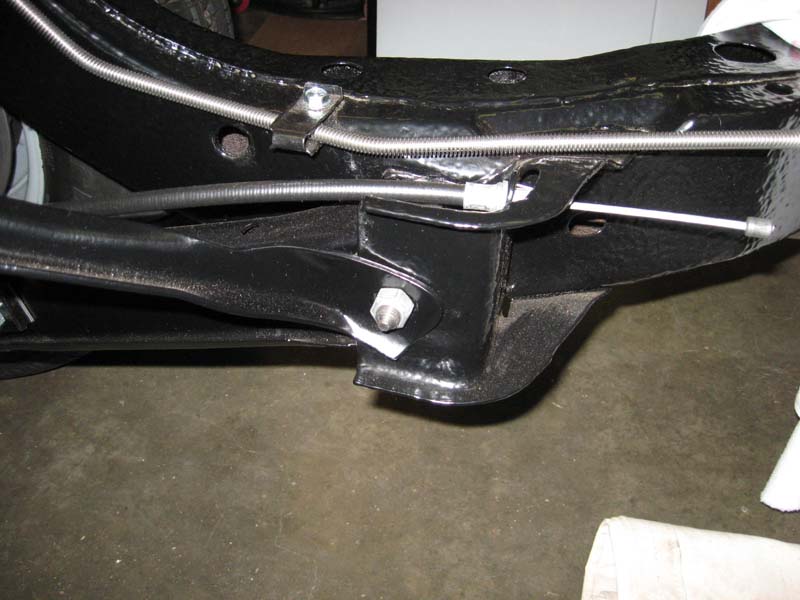

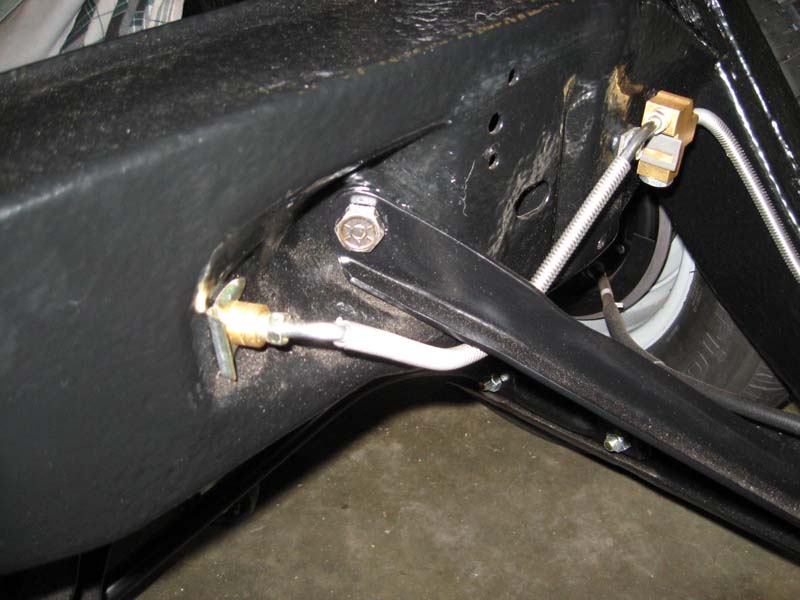

Late Style Frame Braces Left Side Bottom Mount 001  Late Style Frame Braces Left Side Top Mount 001
The above to shoots show the upper and lower mounting points of the left brace close up.

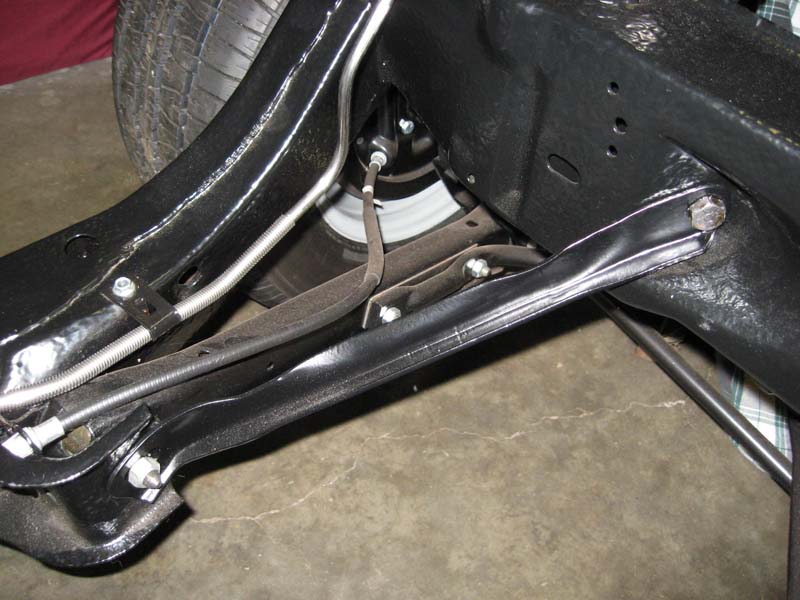

 Late Style Frame Braces Right Side Full View 001 This view is looking at the right side (passenger side) brace. From the middle of the chassis.

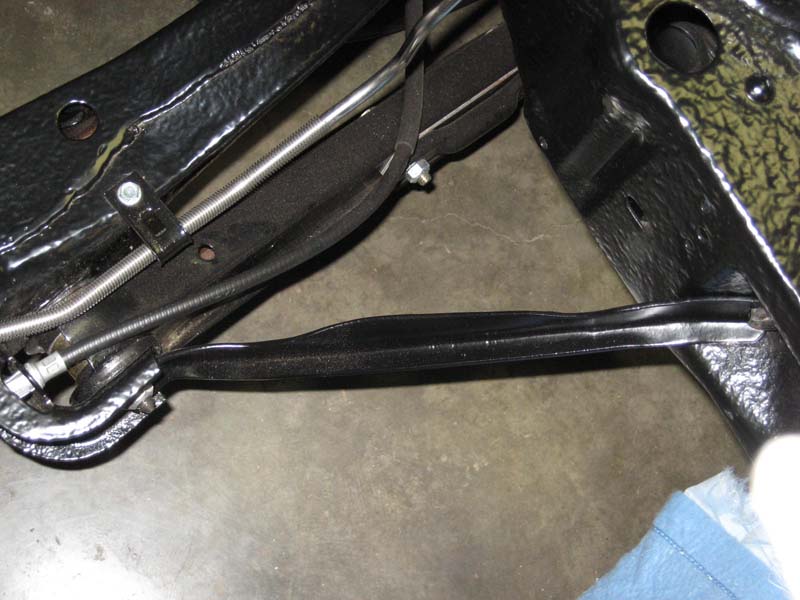

Late Style Frame Braces Right Side Full View 002 This view is looking at the right side (passenger side) brace. Looking directly down at it, you can see the front part of the lower control arm with the emergency brake cable on top of the control arm.
