1978 Pontiac Firebird Week 2009 08 02

Click the picture for a larger image

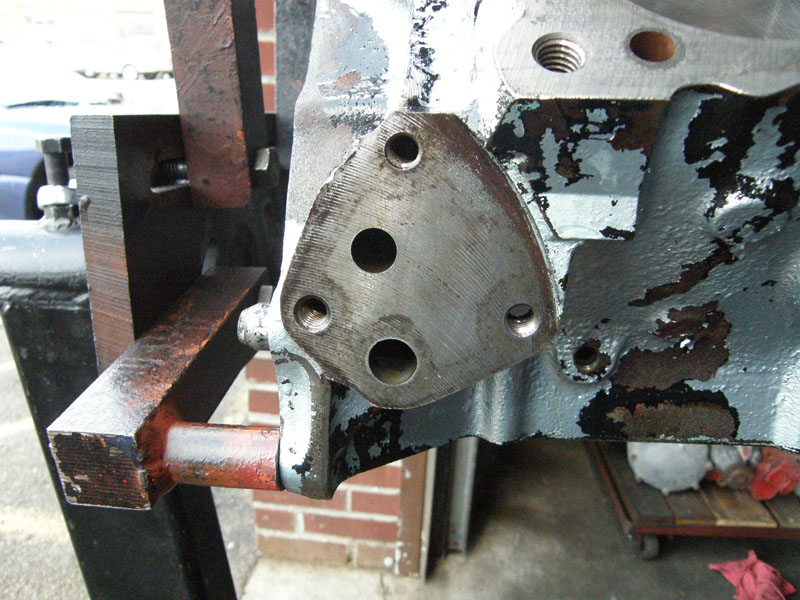

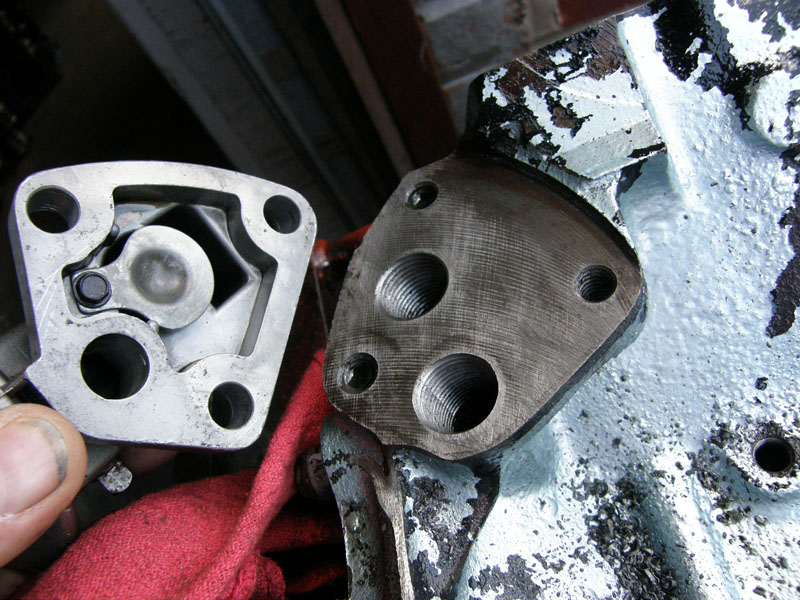

Jim Hand’s book  (if you do not have this book, buy it) For high-RPM operation, especially with solid-lifter cams, added oil flow from enlarging the passageway from the pump to the oil filter may improve durability. We have done this and gone ahead and taped the hole with 1/2 inch pipe threads so that AN fittings can be screwed directly into the block for an external oil filter. I will be installing a System One set up. Note. when you remove the oil filter adapter you are also removing the oil filter bypass valve.
Oil_Filter_002_small                                                                Oil_filter_005_small

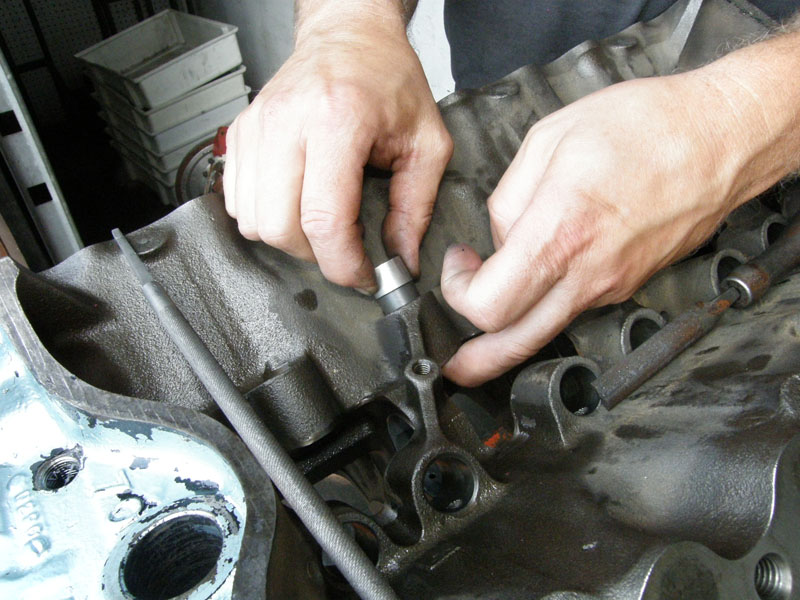

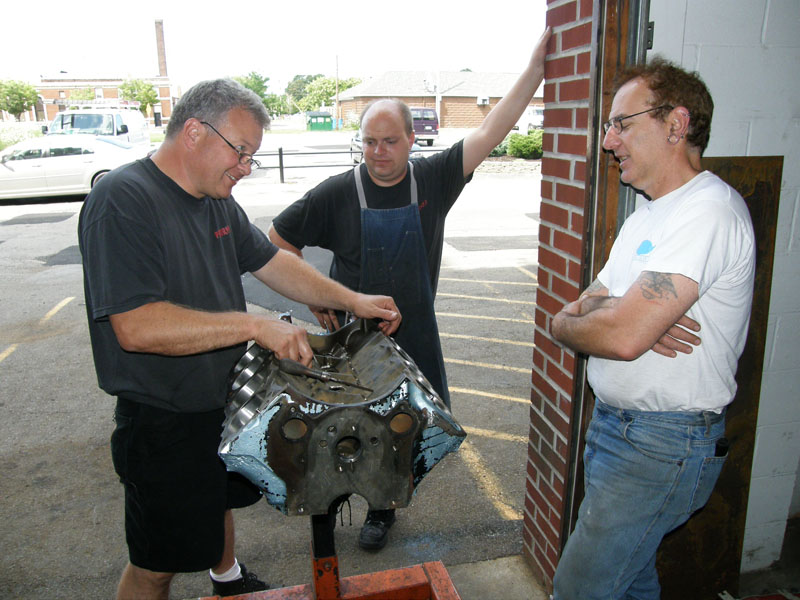

Jim Hand goes on to say that restricting oil flow from the lifters to the rockers provides higher and more consistent pressure for rod and main bearings. The restriction can be accomplished by drilling, tapping and installing drilled stainless-steel plugs into the lifter bores. A .030 inch hole in the plugs provides adequate flow to the rockers/springs while raising pressure for the bearings. Jeff of Kaufman Racing sells the plugs. He recommender .046 inch hole for my solid lifter cam. Below you see the holes tapped, the rough edges smoothed out, and the lifter hole check for smooth operation

Oil_Restriction_0020_small                                                 Oil_Restriction_0030_small
Oil_Restriction_0035_small                                                 Oil_Restriction_0040_small

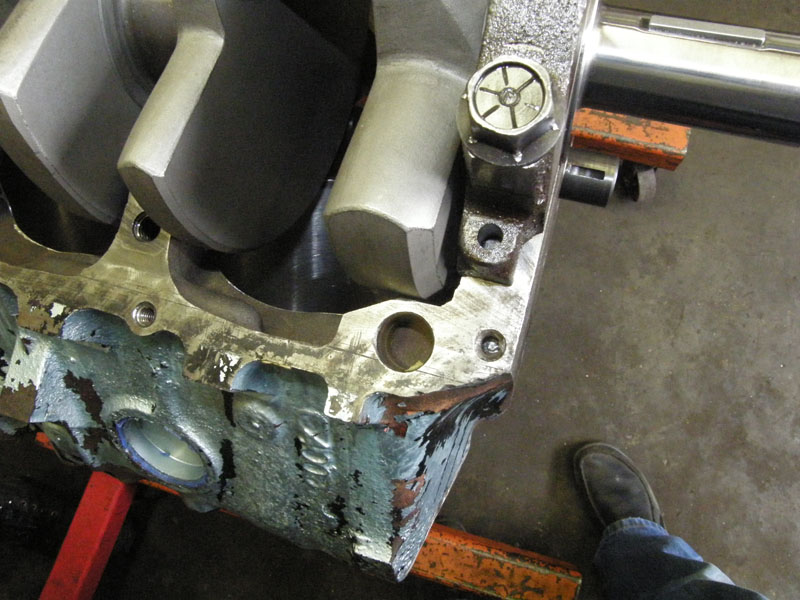

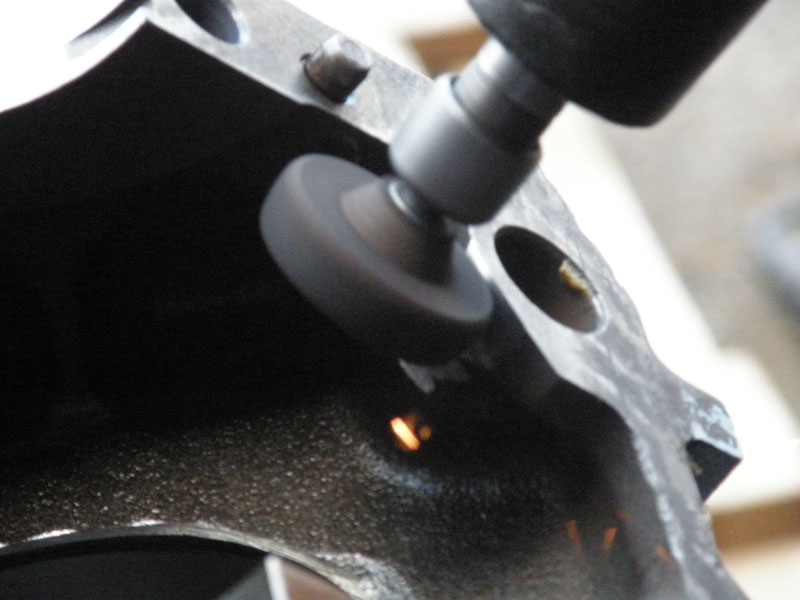

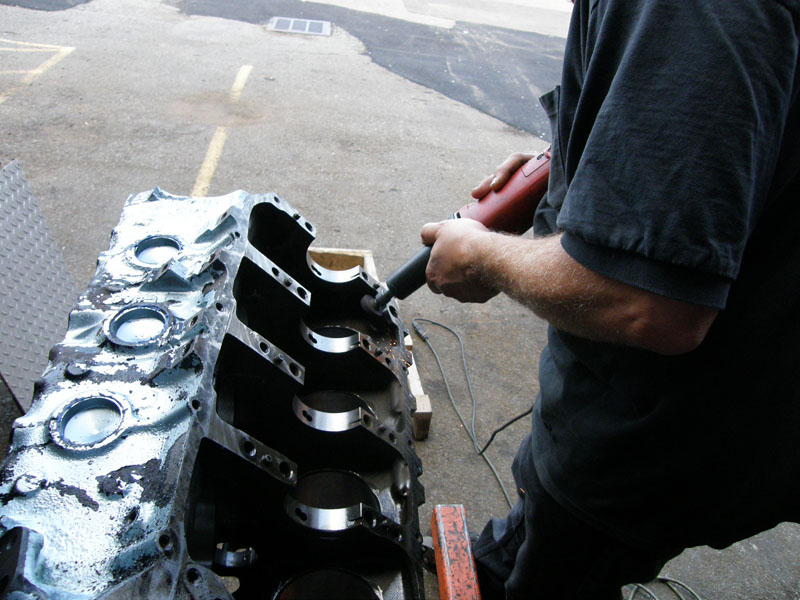

The stroker crank was checked for clearance. Only the right front of the block need to be addressed.
Clearance_for_stroker_Crank_0003_small                                                Clearance_for_stroker_Crank_0004_small
Clearance_for_stroker_Crank_0005_smallLater in the install we found another issue with the oil separator ring at the rear of the crank, and an rear main seal issue. Those will be addressed in next weeks update.

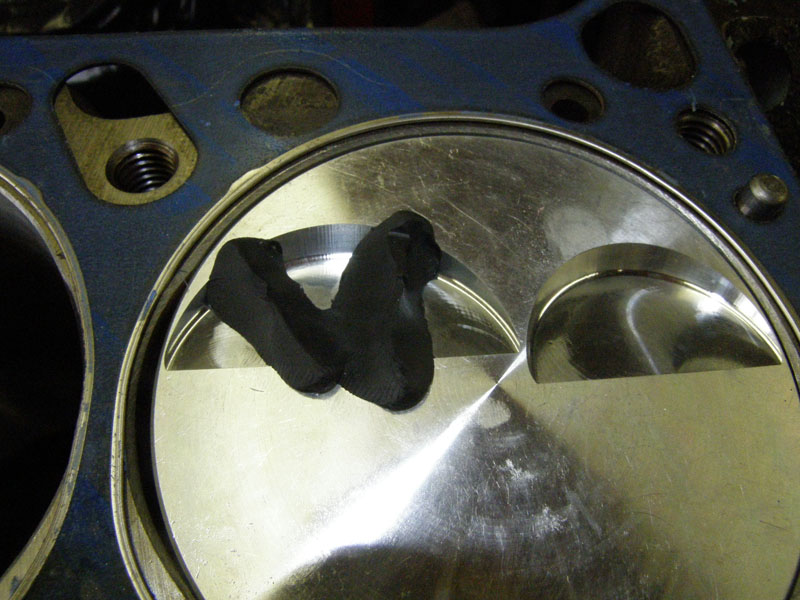

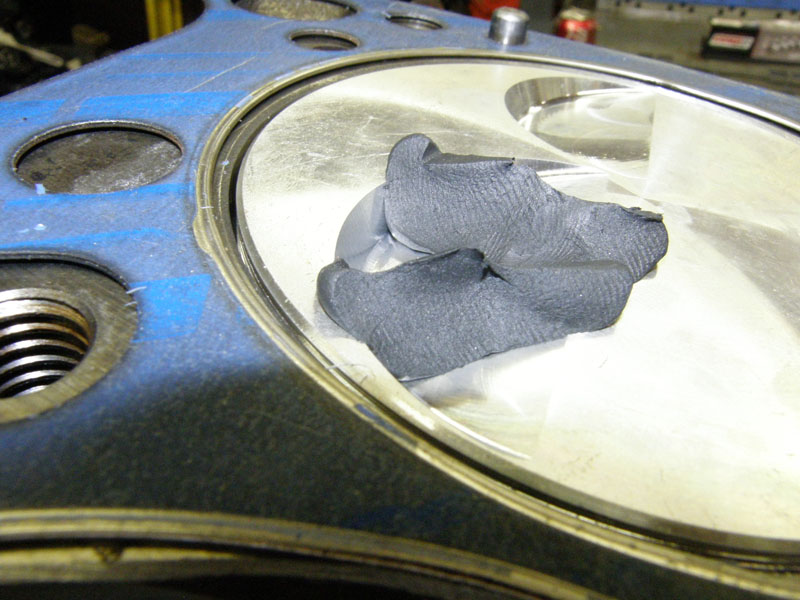

First step mock things together, and check valve to Piston clearance. Turns out there is LOTS of room. If you look closely you will see the depression in the clay on the tops of the pistons made by the valves.
Valve_Piston_Clearance_001_small                                                  Valve_Piston_Clearance_002_small

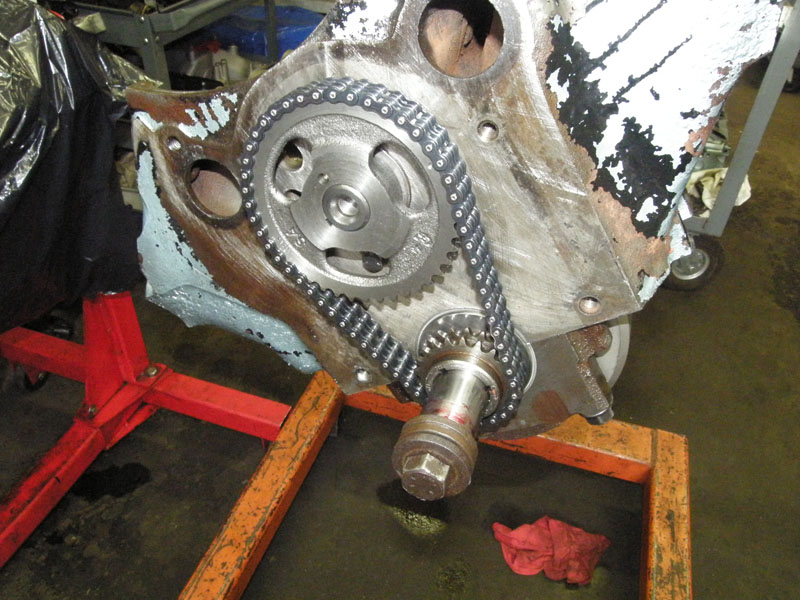

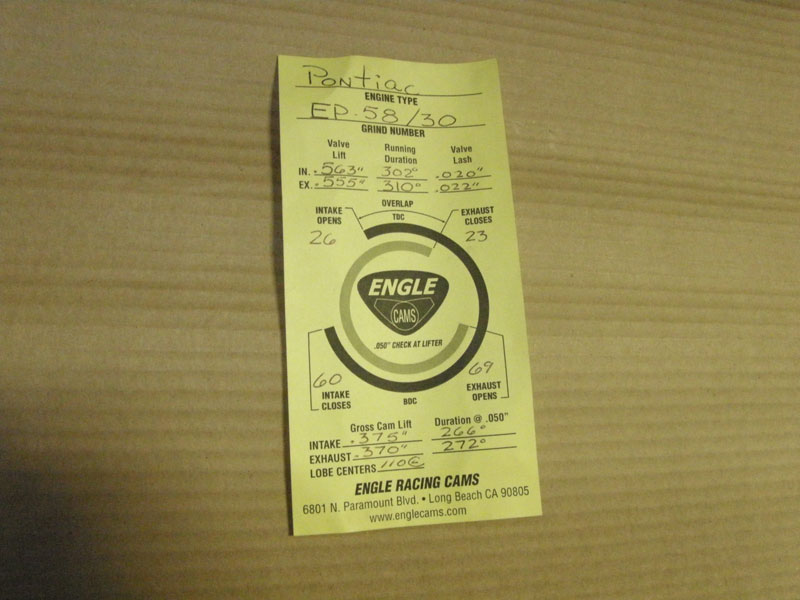

Cam was dialed in at one degree advance to obtain 106 intake lobe center line.On the Pontiac engine that I am building I was told that I want the intake lobe centerline of the cam to be 106 degrees after TDCThat was Greek to me. I had to educate myself so with the help of Matt Shaft, Jeff Kaufman, and Jim Hand’s Book, this is what I found and I thought someone else might also find it interesting.  The cam card can be seen here.
Misc_002_smallThis is what I learned;
26 degrees   Intake opens before TDC
  180 degrees  TDC to BDC
   60 degrees   Intake closes after BDC
266 degrees
  Total

133 degrees  Divide by 2 to get centerline with the Intake opening before TDC 26 degrees
107 degrees  Minus 26 (Intake opening before TDC 26 degrees) as centerline is referenced from TDC
106 degrees centerline      If the cam is 1 degree advanced, the camshaft is at 106 degrees

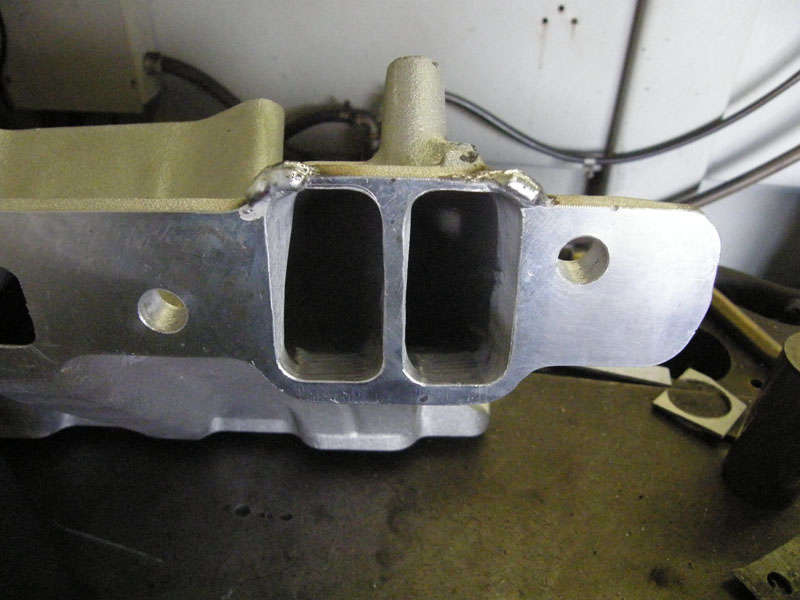

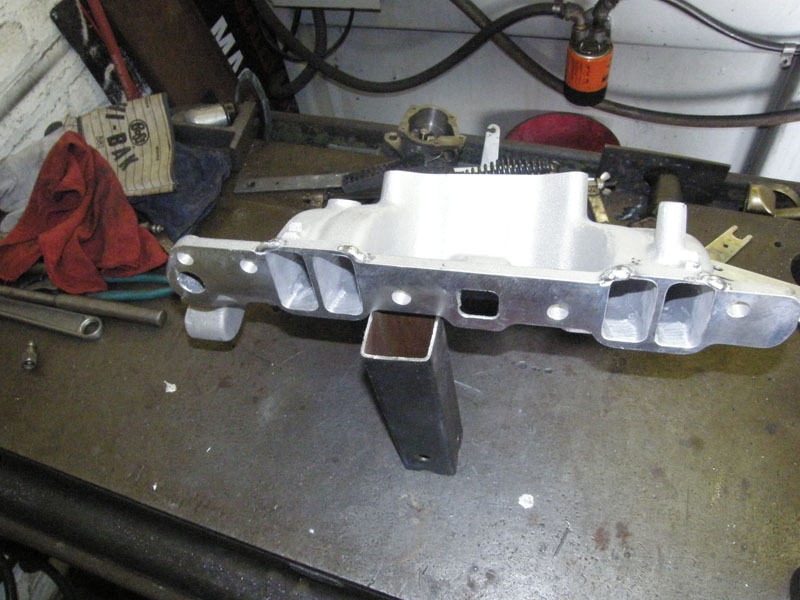

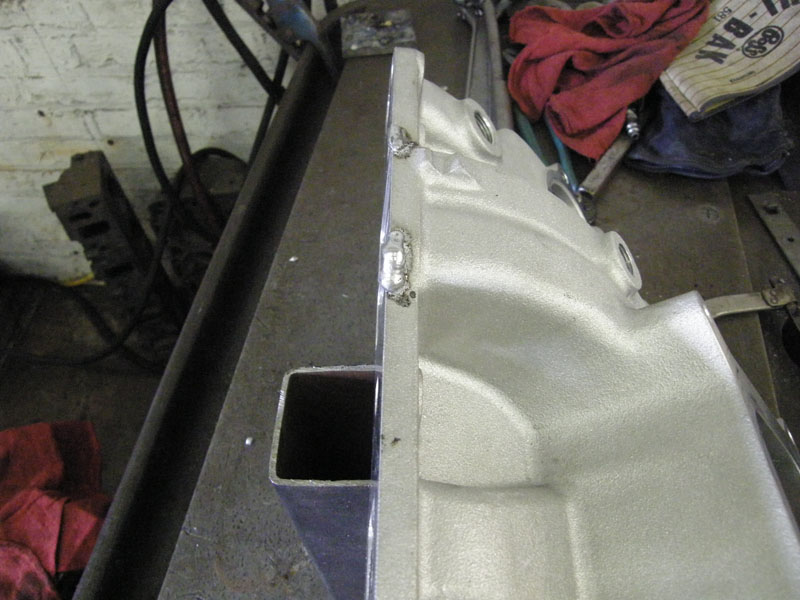

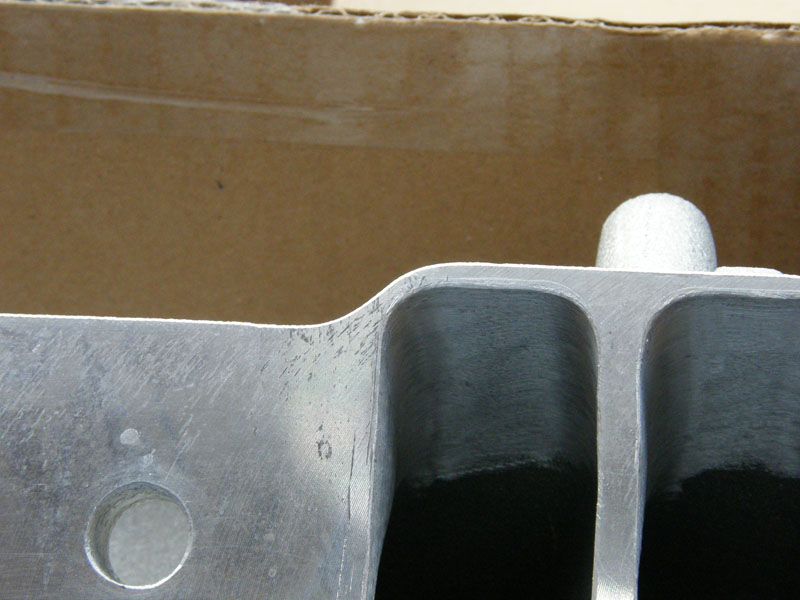

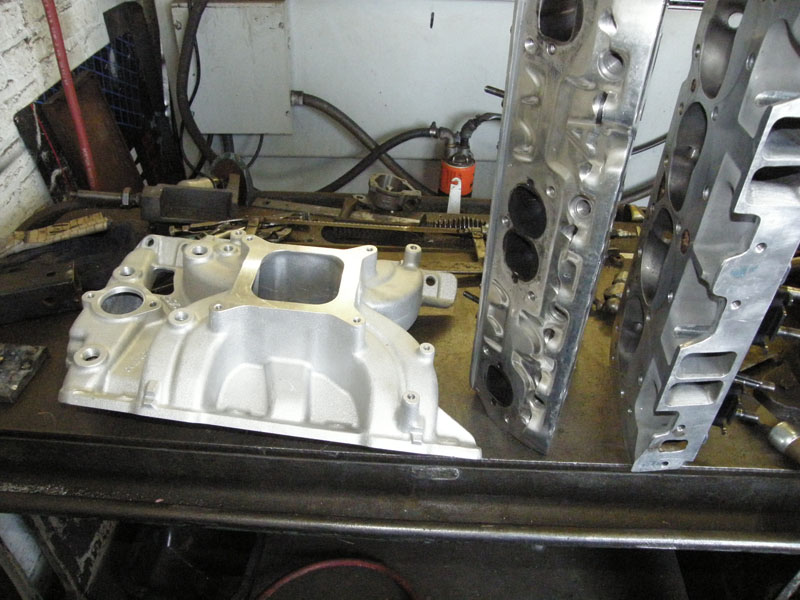

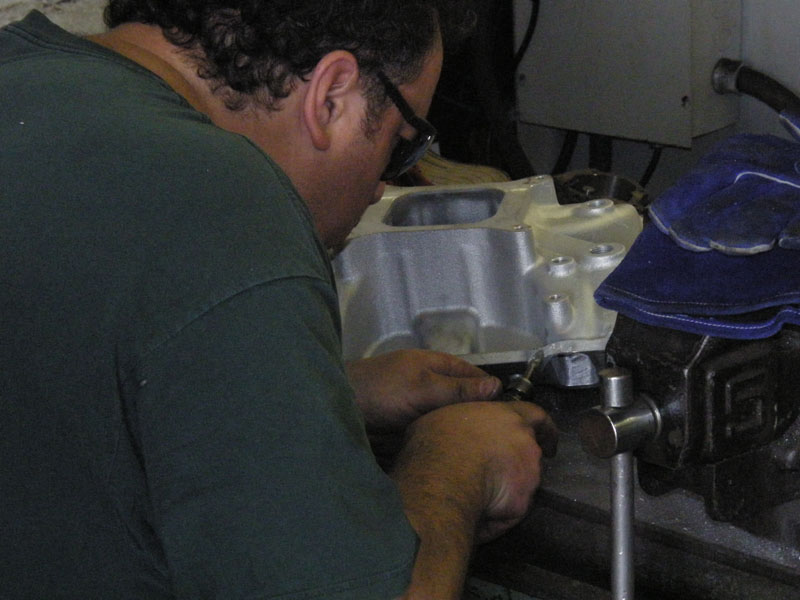

A side project was the intake. The intake was port matched, but then the walls were to thin to get a good seal between them and the heads, so material was added to thicken the walls back up
Intake_0020_small                                                  Intake_0010_small
Intake_0040_small                                                  Intake_0050_small
Intake_0060_small                                                  Intake_0070_small
Work was not completed at the time of putting this together, the finished intake will be pictured in next weeks update.

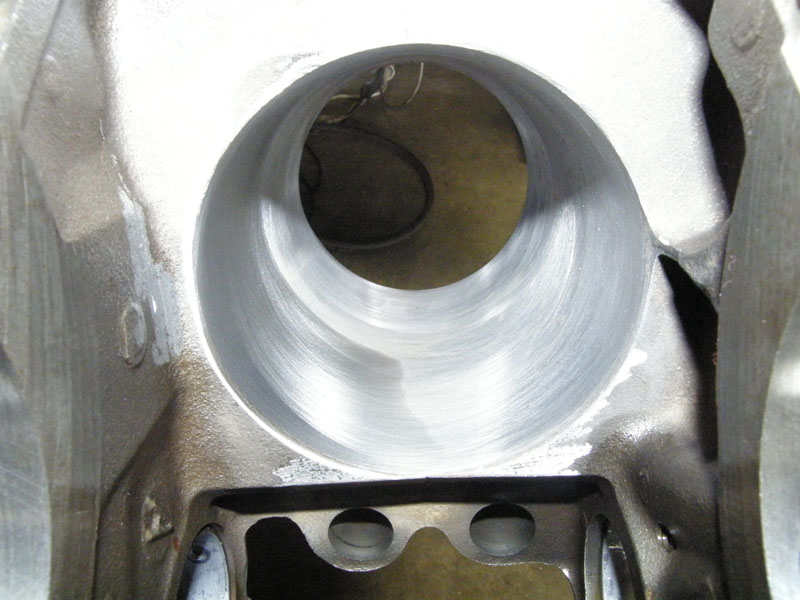

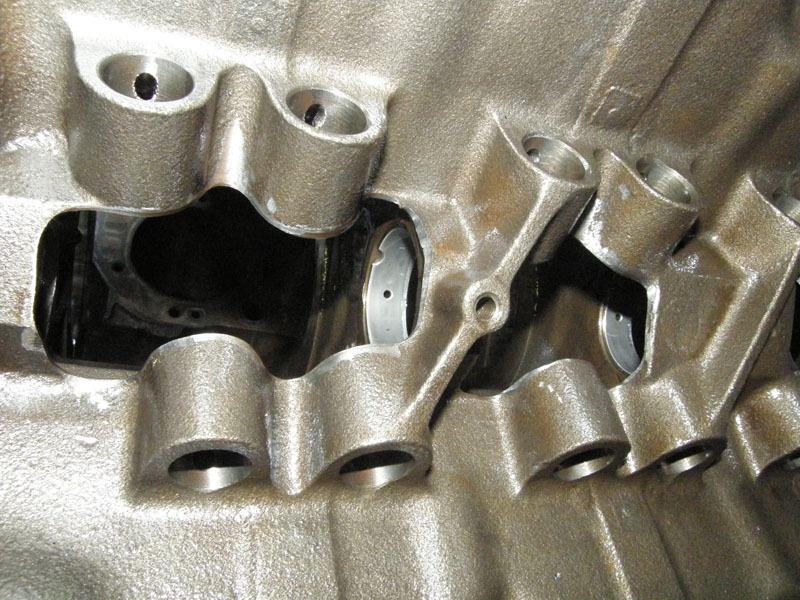

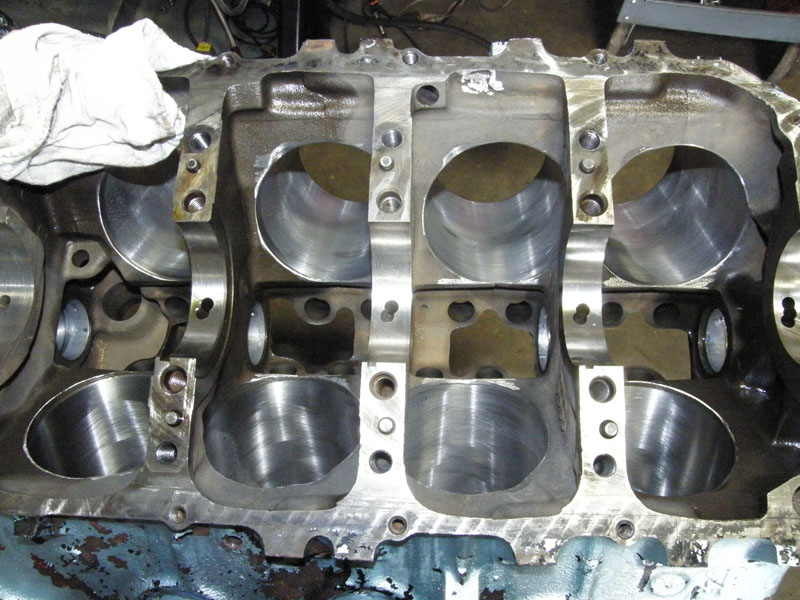

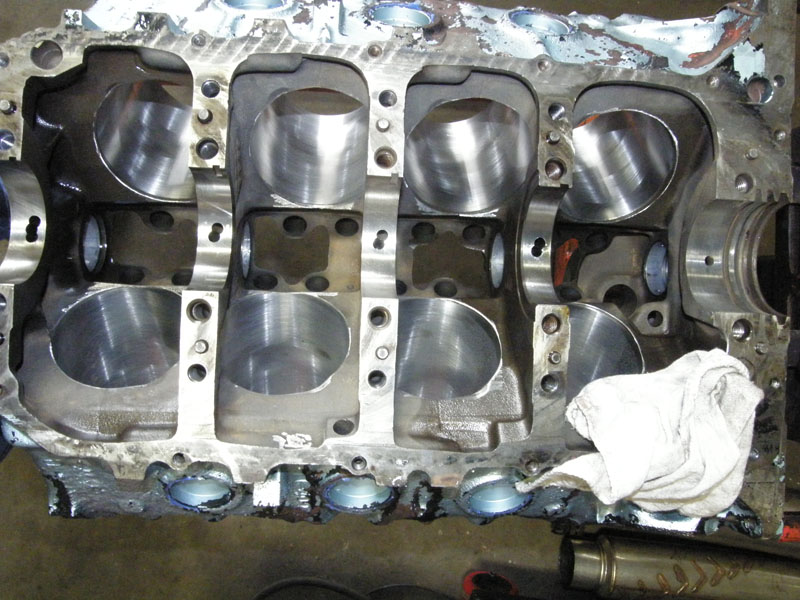

Next is to smooth out the inside of the block
Smooth_inside_of_Engine_001_small                                                 Smooth_inside_of_Engine_002_small
Smooth_inside_of_Engine_003_small                                                 Smooth_inside_of_Engine_005_small

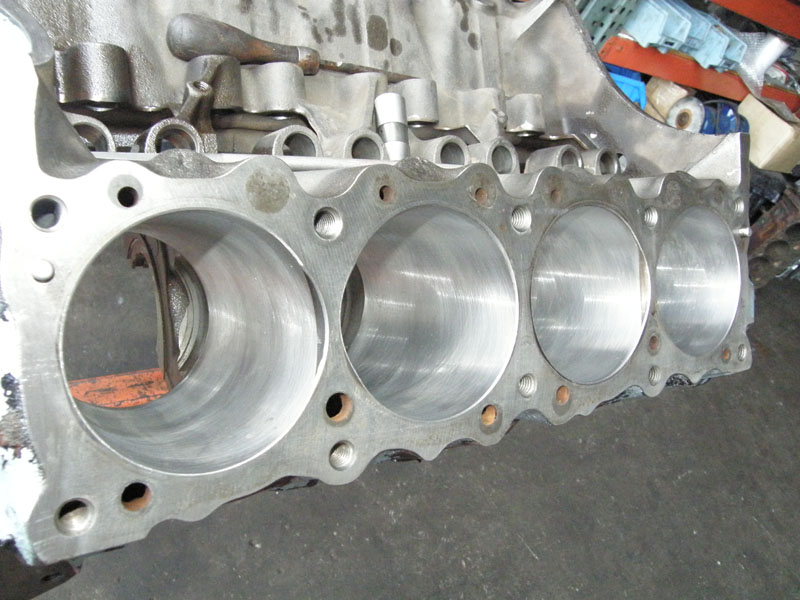

Misc_003_small

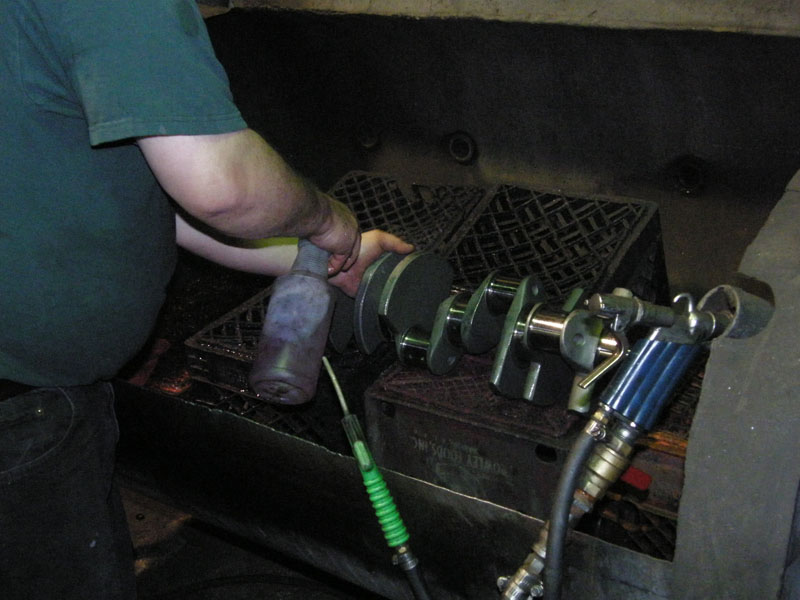

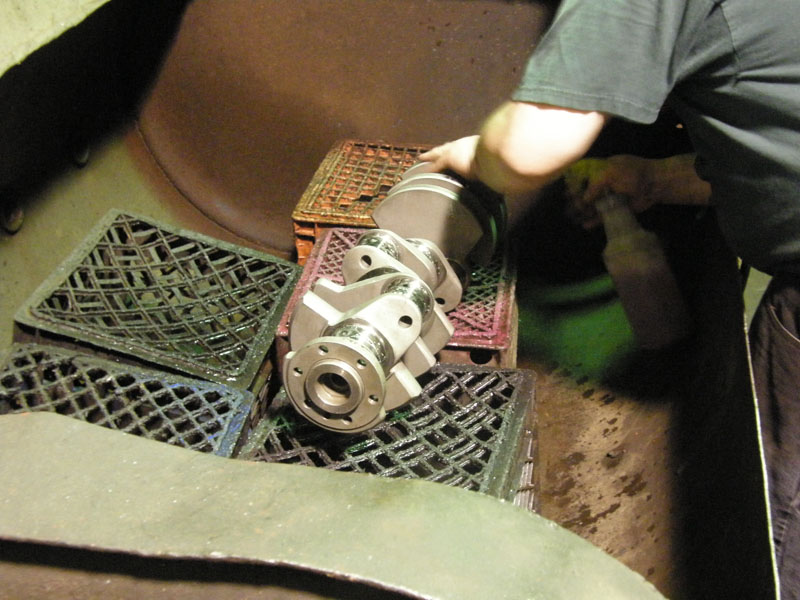

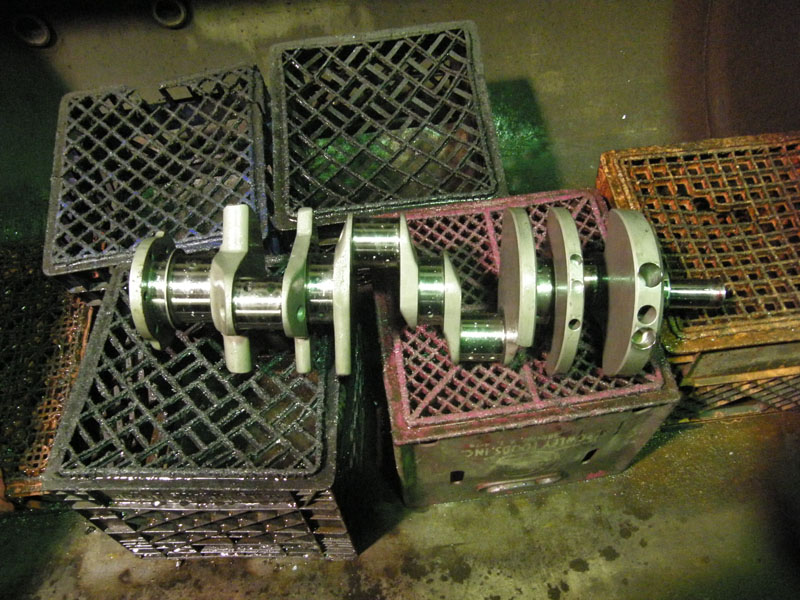

Block was then thoughly cleaned, Brushes were used to clean all orifices, as was the crank.
Clean_Crank_001_small                                                   Clean_Crank_002_small
Clean_Crank_003_small                                                   Clean_Crank_004_small

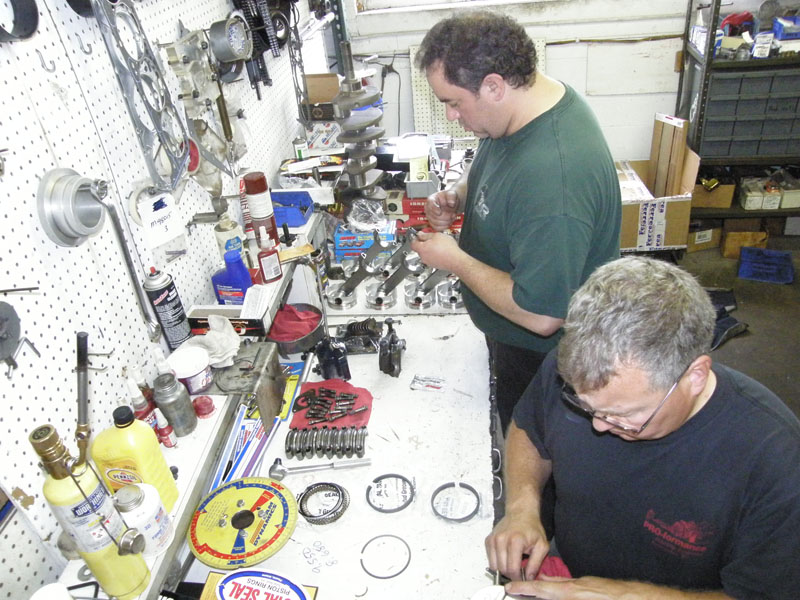

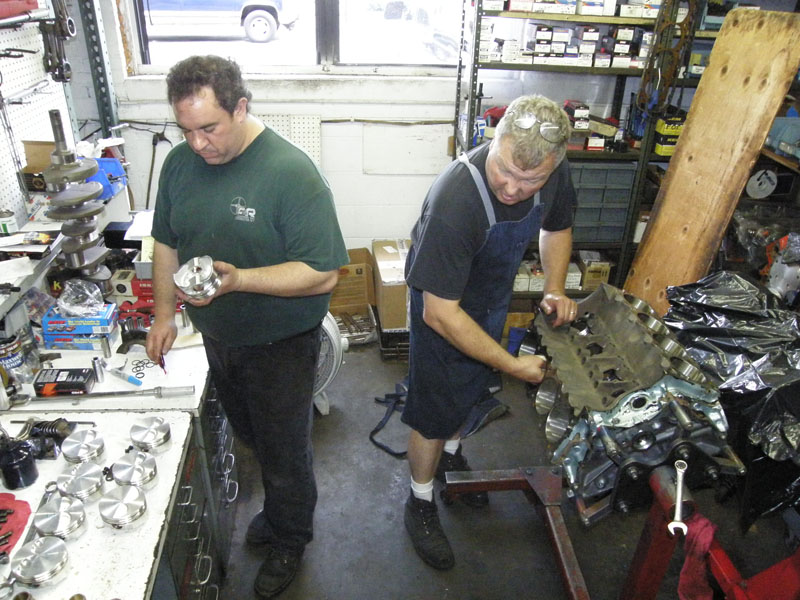

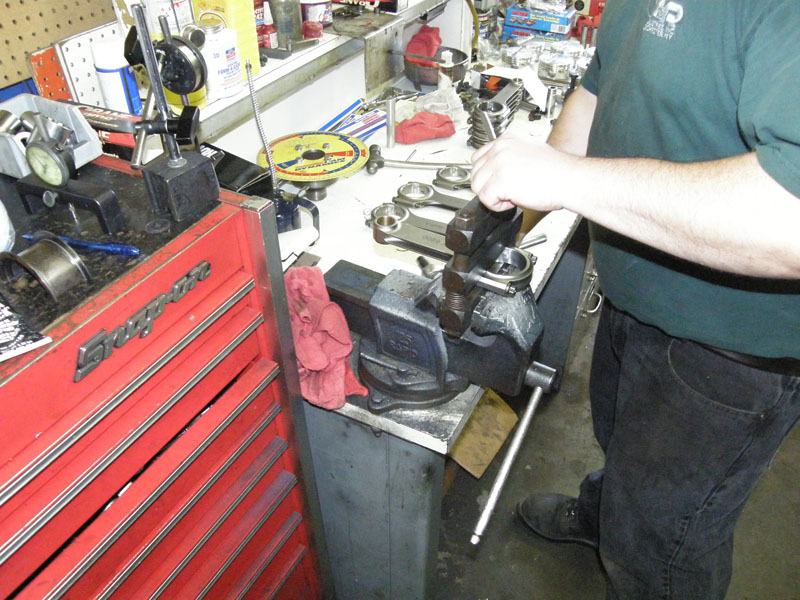

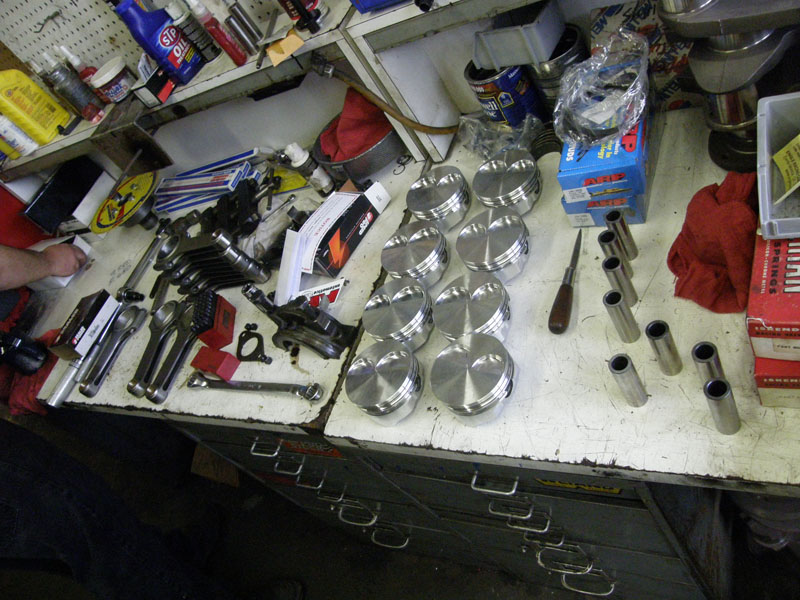

Time to set the pistons up.
Pistons_001_small                                                  Pistons_002_small
Pistons_003_small                                                  Pistons_004_small

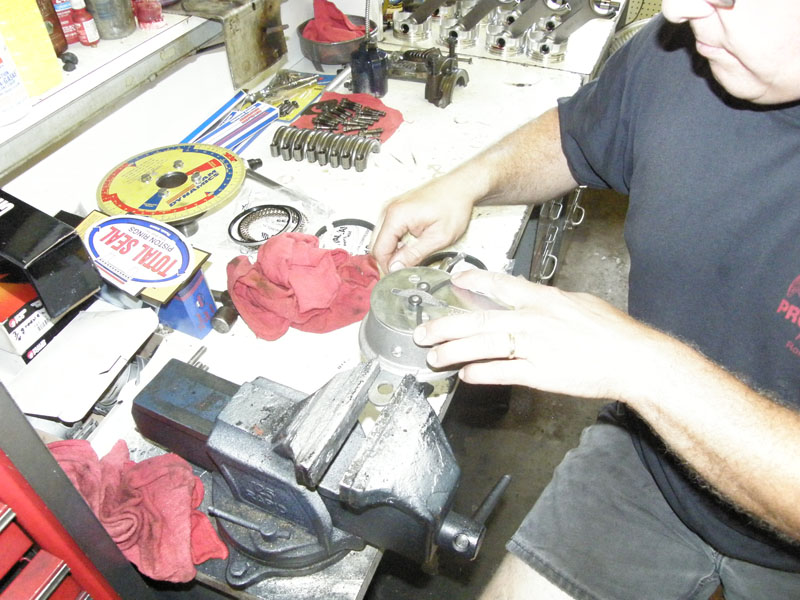

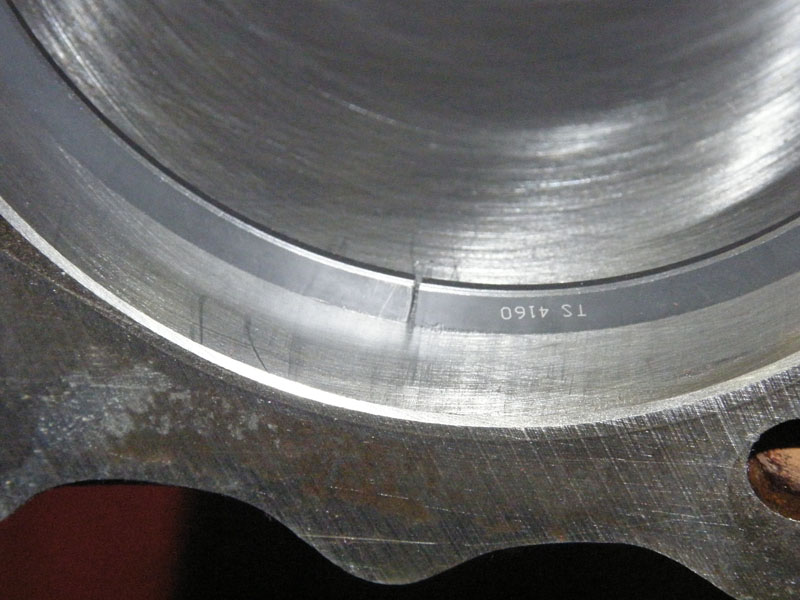

Time to file fit the rings.
Pistons_Ring_File_003_smallUse a diamond wheel to trim the length of the ring

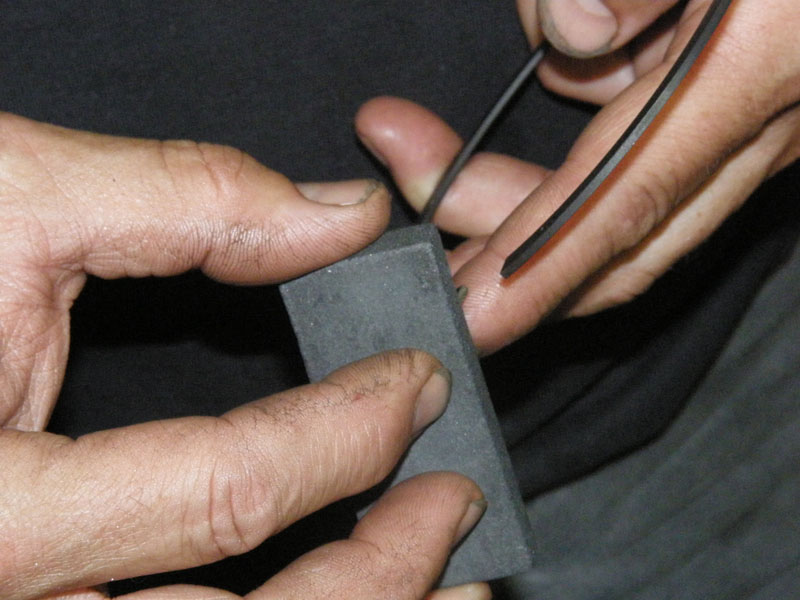

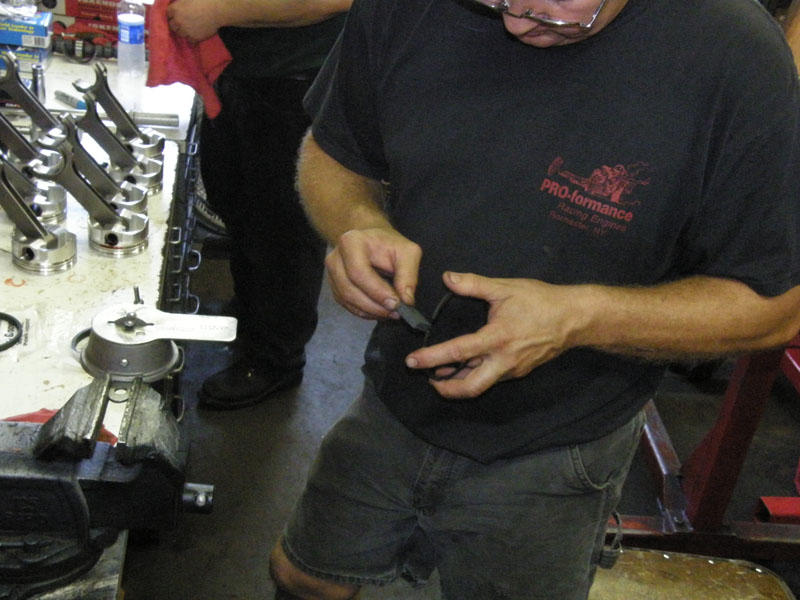

File the edges smooth
Pistons_Ring_File_002_small                                                   Pistons_Ring_File_005_small

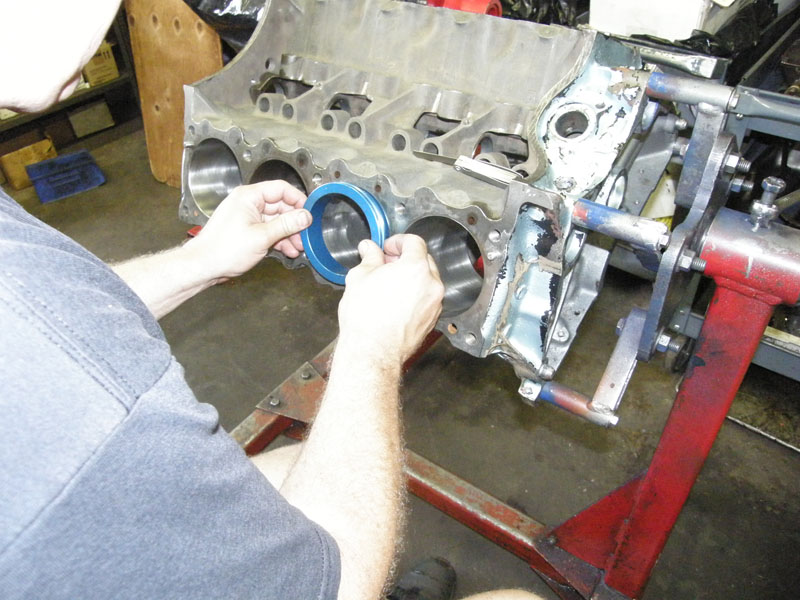

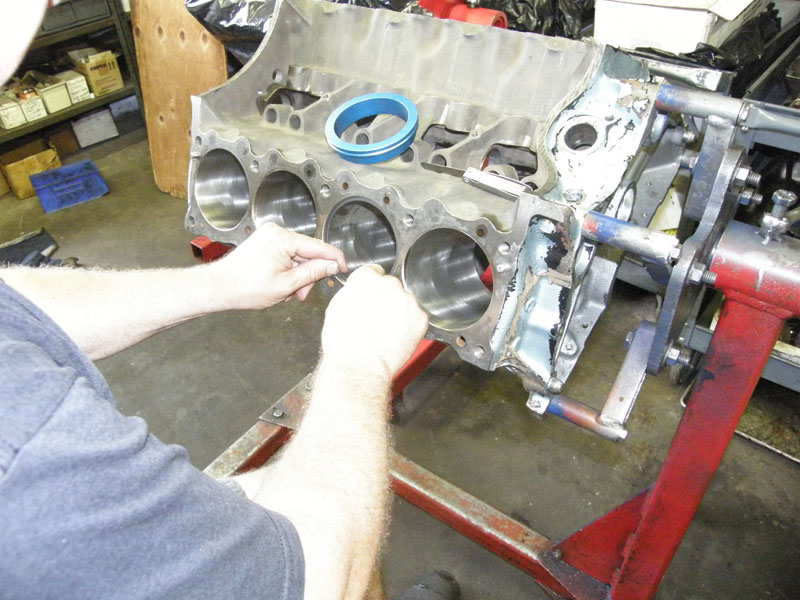

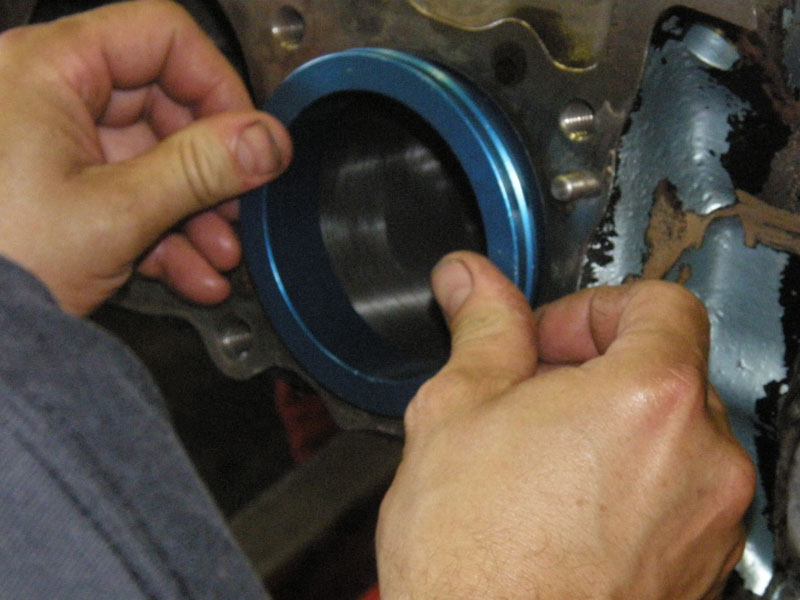

Pistons_Ring_File_006_small Insert the ring into the cylinder, use the tool below to square the ring in the cylinder and check the gap with a feller gauge
 Pistons_Ring_File_007_small                                                  Pistons_Ring_File_004_small
Pistons_Ring_File_001_small
Looks good.

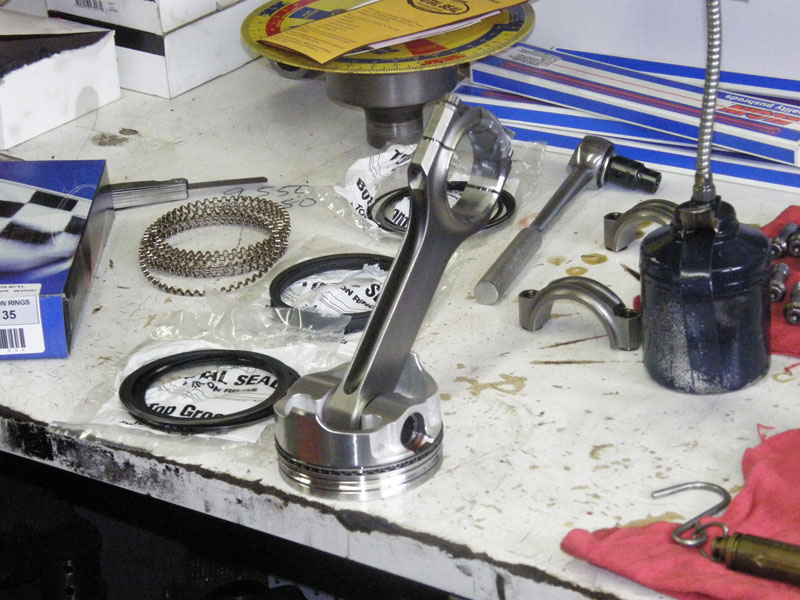

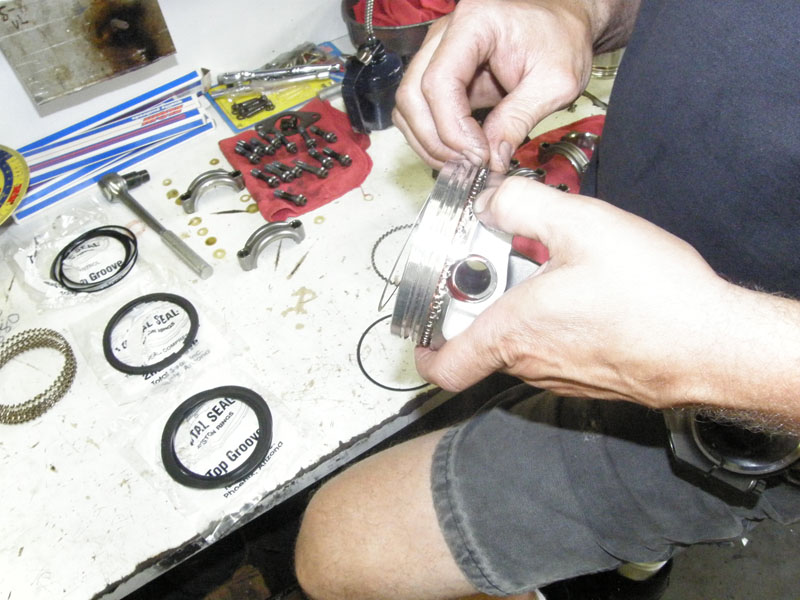

Next step was oil scraper ring tension. The expander rings sent with the pistons were standard tension rings (high tension) As this is a strictly race engine we decided to reduce the tension from 35 pounds per cylinder to 20. We found that using an expander ring set for a .60 over 396 engine that we got down to the 20 pounds per cylinder. High end race engines try for o pounds. They use a vacuum pump mounted on the front of the engine to create a vacuum inside the engine block to suck the oil back in through the holes in the piston
Pistons_Oil_Ring_Tension_001_small                                                  Pistons_Oil_Ring_Tension_002_small
Pistons_Oil_Ring_Tension_003_smallWeight the piston so that weight can be subtracted  when you test for pressure required to move the piston with a given set of expander rings.

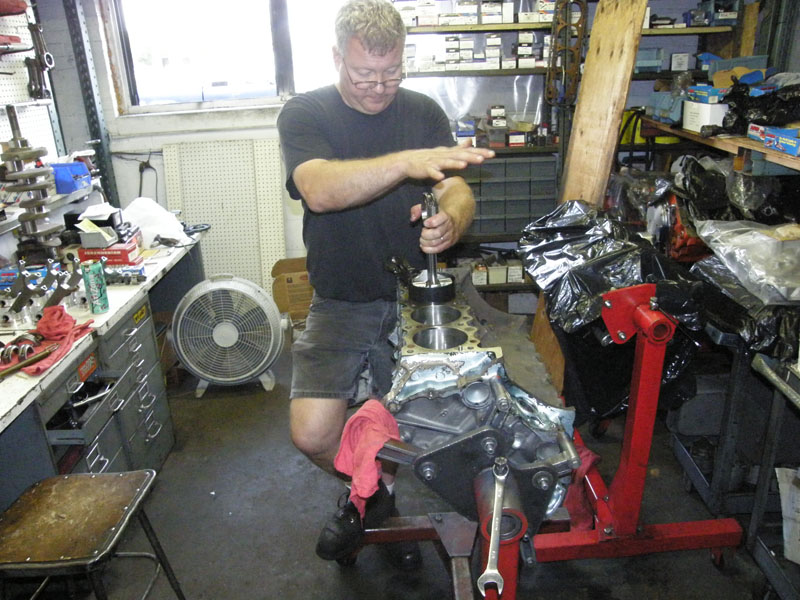

Pistons_Oil_Ring_Tension_004_smallInstall the piston in the block with just the oil rings and expander.

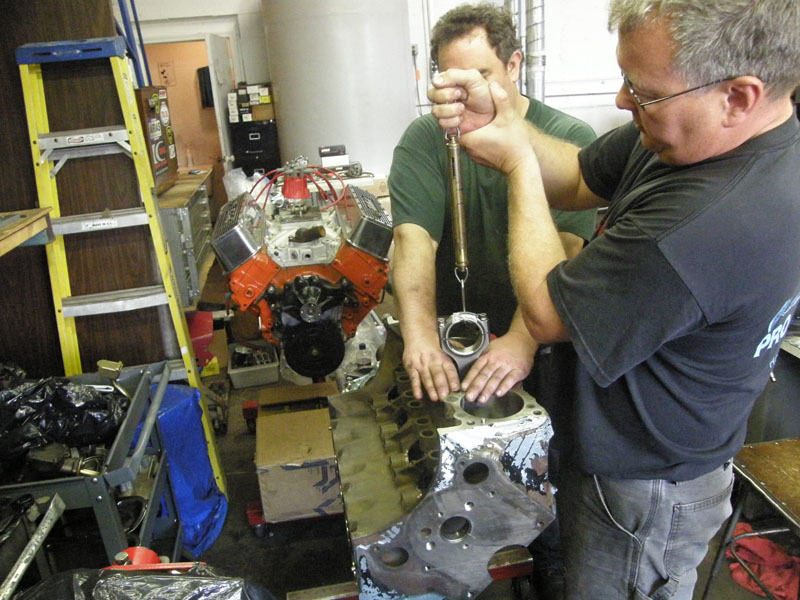

Pistons_Oil_Ring_Tension_005_smallUse you handy dandy fish scale to find the amount of pressure to pull the piston out of the block and subtract the weight of the piston and you have the oil ring tension. Make sure you have someone cover the hole so that the ring does not come shooting out of the cylinder when you reach the “breaking point.

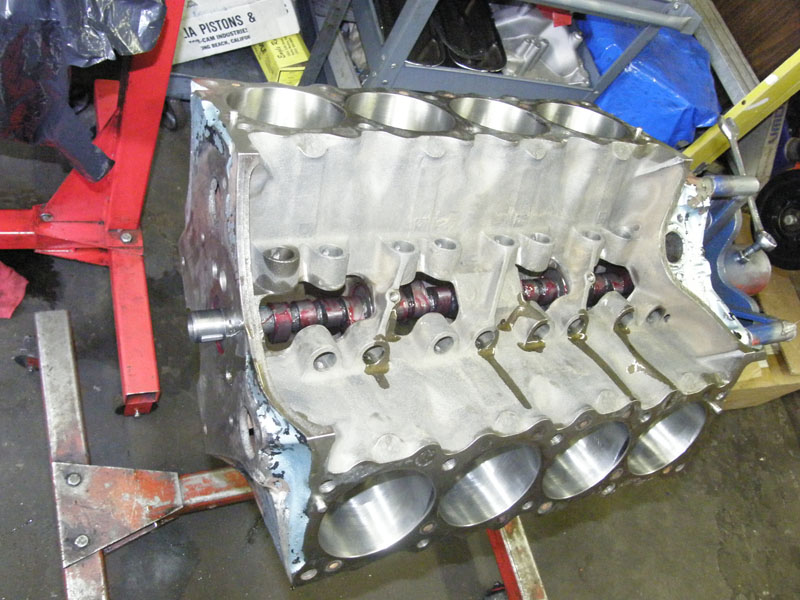

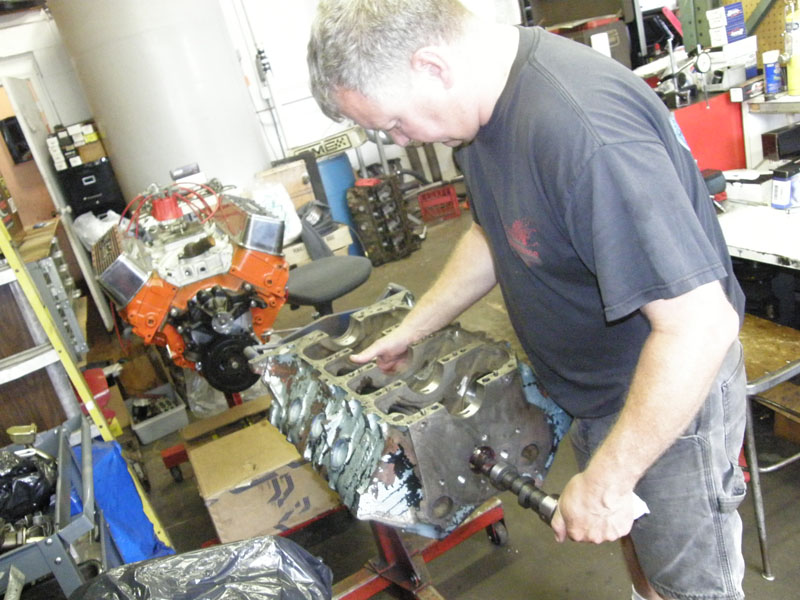

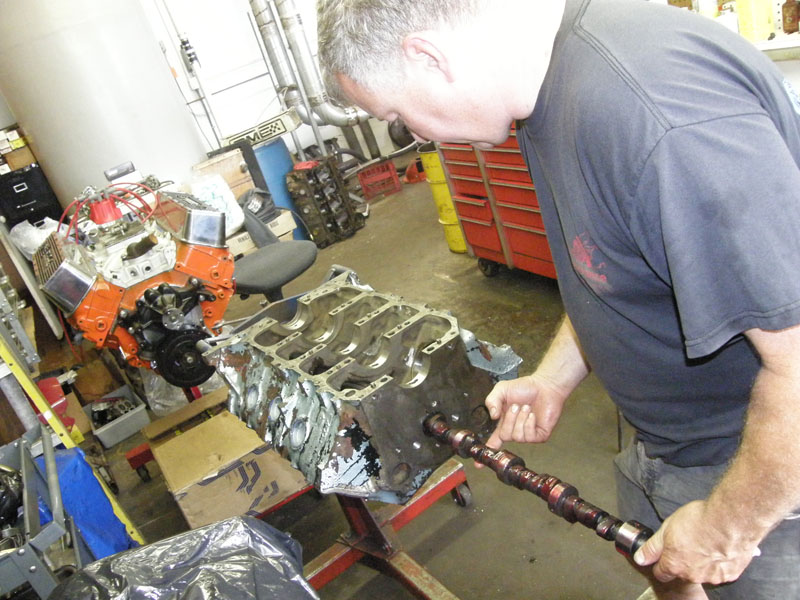

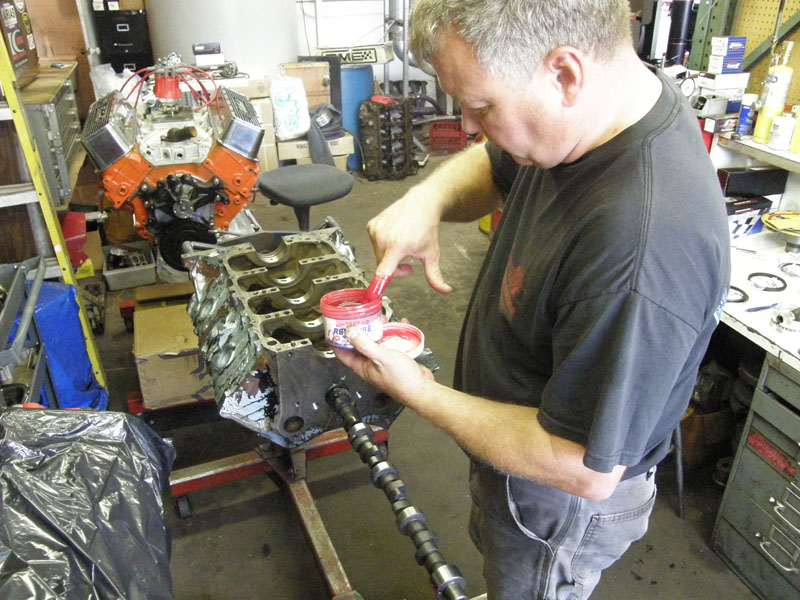

Now we can start putting stuff in for good. We will start with the cam, which will be degreed again.
Cam_Install_0002_small                                                   Cam_Install_0003_small
Cam_Install_0004_small                                                   Cam_Install_0010_small
