1978 Pontiac Firebird Week 2009 08 09

 REMEMBER TO CLICK PICTURES FOR MOR DETAIL / LARGER PICTURE

Ok, so we are still building the engine. The theme this week is aftermarket parts do not fit. How do they stay in business, I guess because no one makes stuff that fits, because if they did they would put everyone else out of business. Read on and see what you think

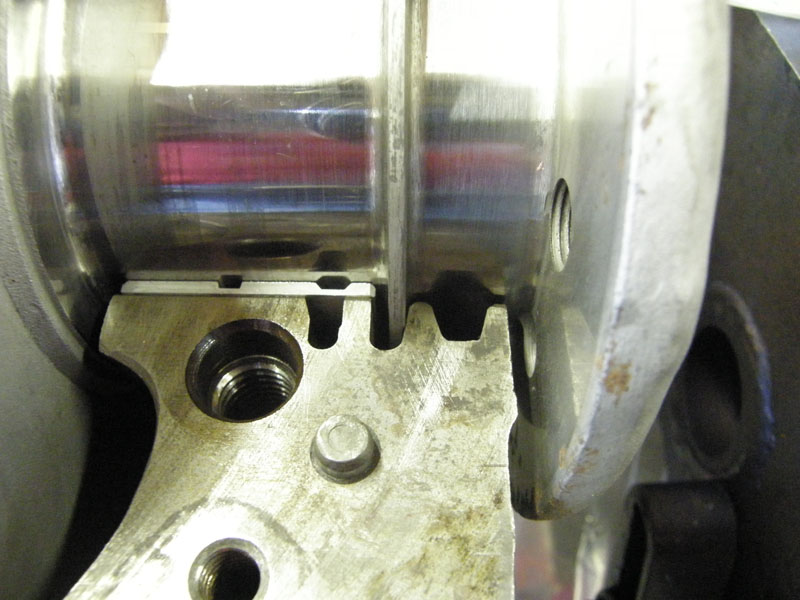

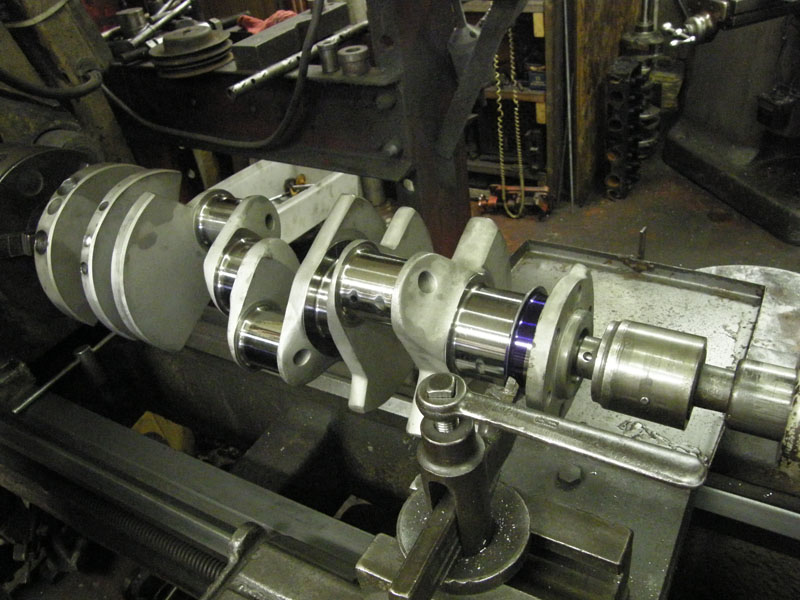

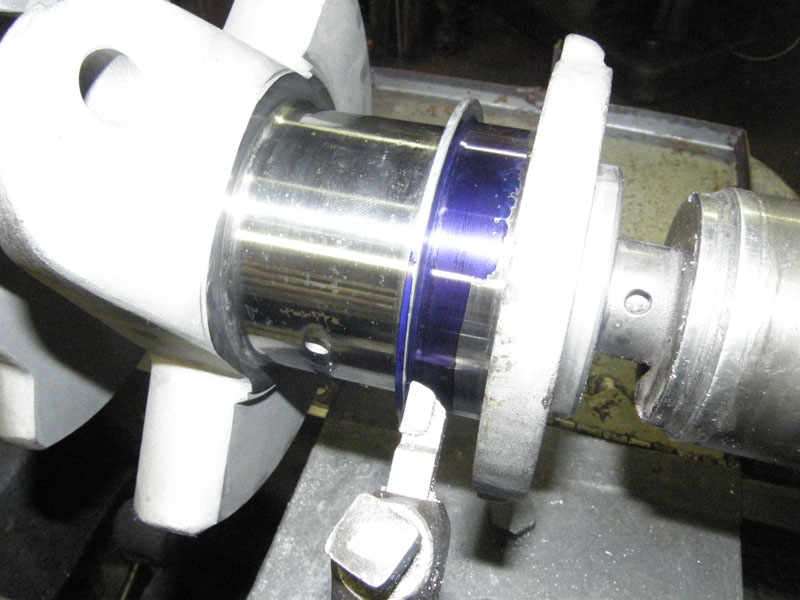

The first problem this week with aftermarket parts was with the new crank shaft. The oil separator ring on the crankshaft was actually hitting the block. It had to be put into a lathe and turned down to allow the correct Crankshaft end play without hitting the block. This was checked by putting blue indicator on the ring, putting it in the block, putting pressure on the crankshaft and rotating it

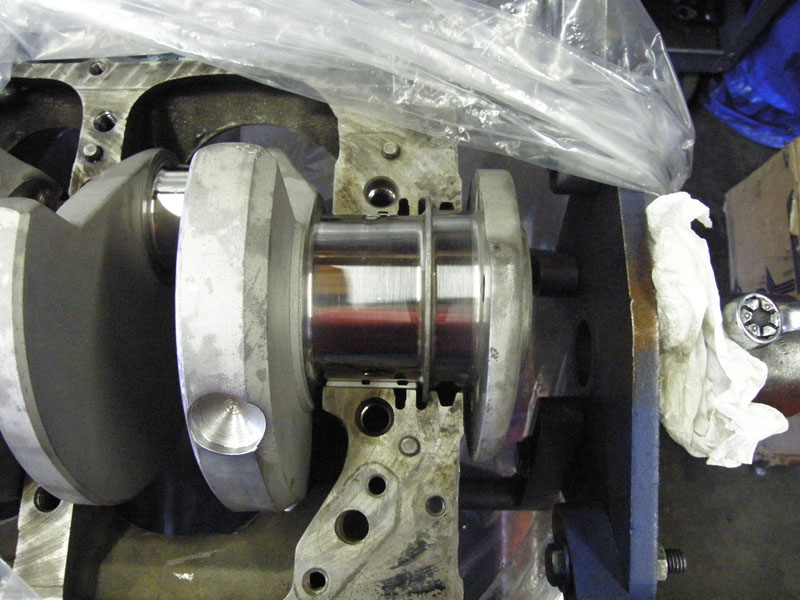

 Oil_Seperator_Clearance_010_small  Oil_Seperator_Clearance_020_small
 Oil_Seperator_Clearance_050_small  Oil_Seperator_Clearance_060_small

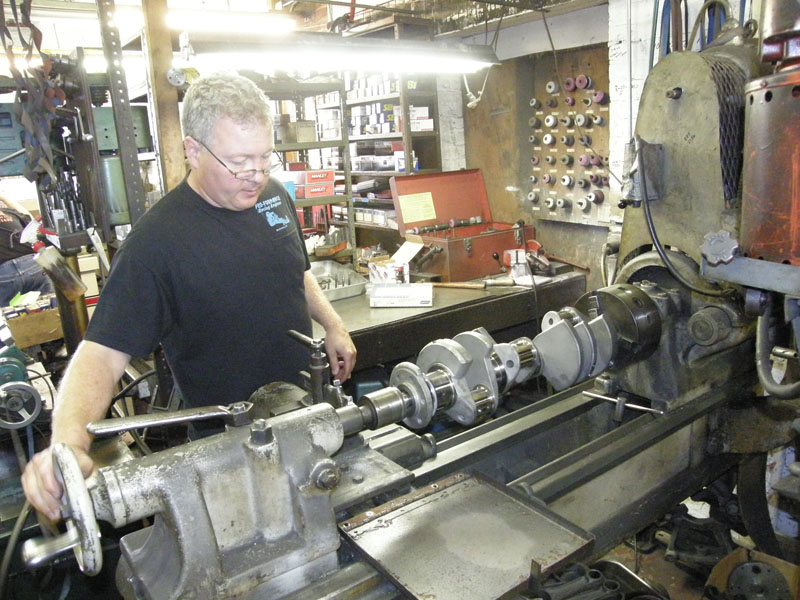

 Oil_Seperator_Clearance_080_small Here is the master at the lathe

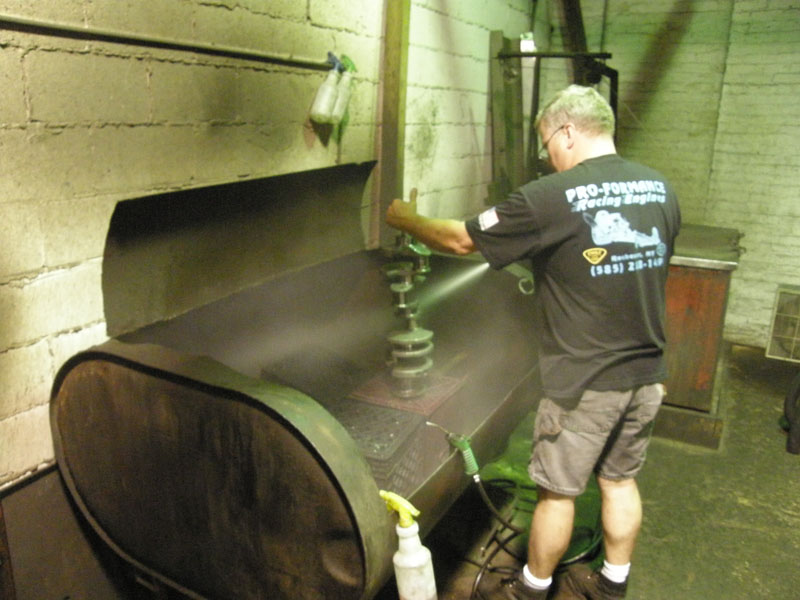

 Oil_Seperator_Clearance_090_small Getting rid of the shavings

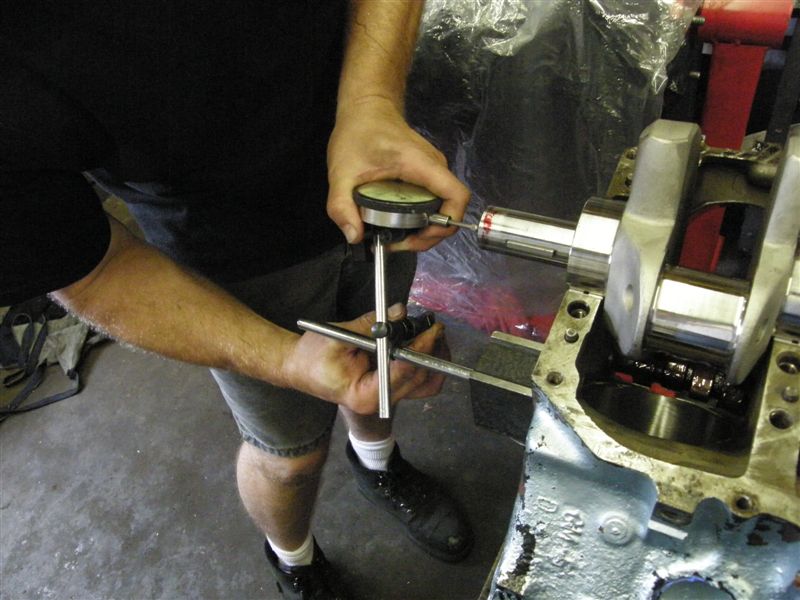

 P8040081_small Checking Crankshaft end clearance.

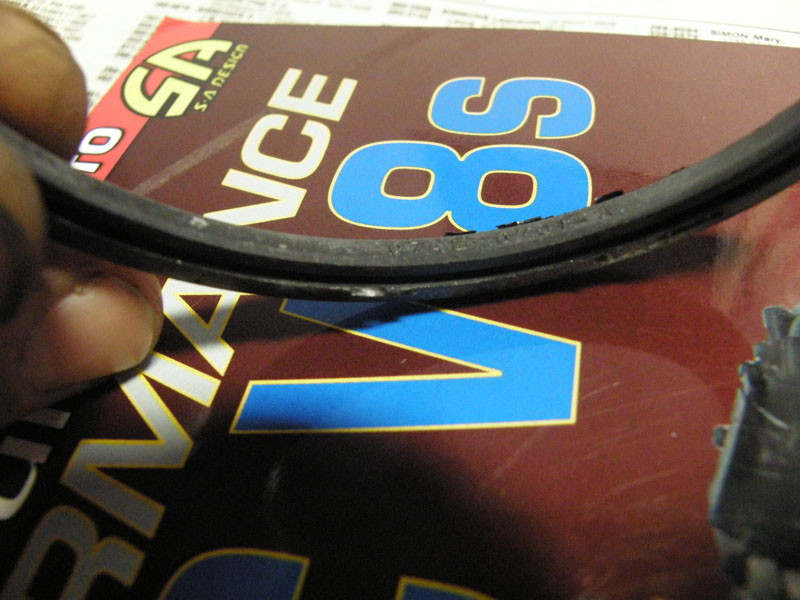

The second topic of discussion is the rear main seal. The factory-style rope seal worked fine when installed at the factory. Unfortunately replacement rope seals were redesigned several years ago, and the material that worked best, asbestos, was replaced with fiberglass. .

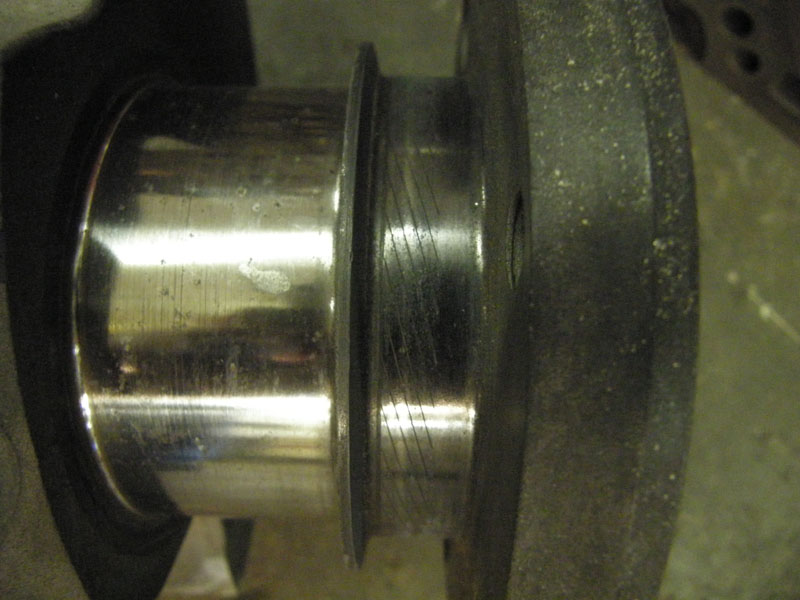

In addition on older crankshafts the area the seal ran on was serrated to throw oil back into the oil pan, and the seals were smooth.
 Oil_Seperator_Clearance_040_small  Seal_020_small

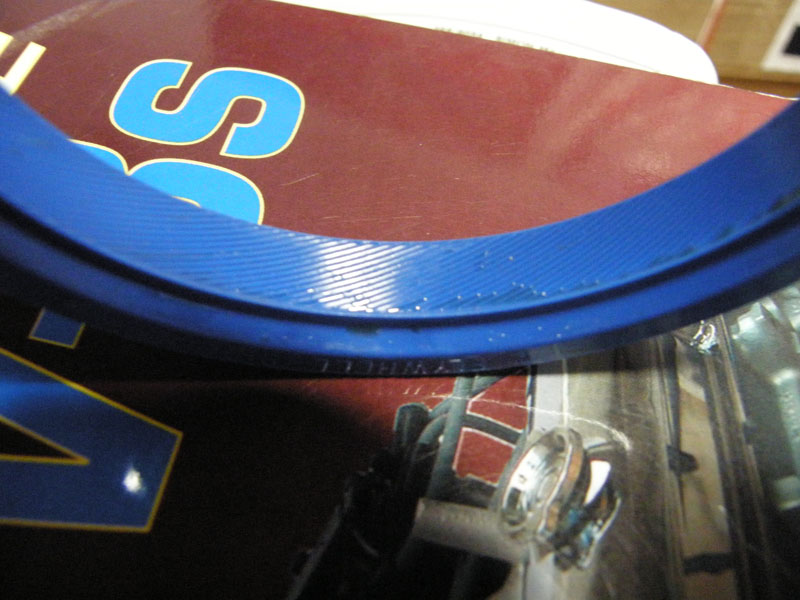

A newer design was a smooth crankshaft surface with the serrations in the seal
 Oil_Seperator_Clearance_010_small  Seal_010_small

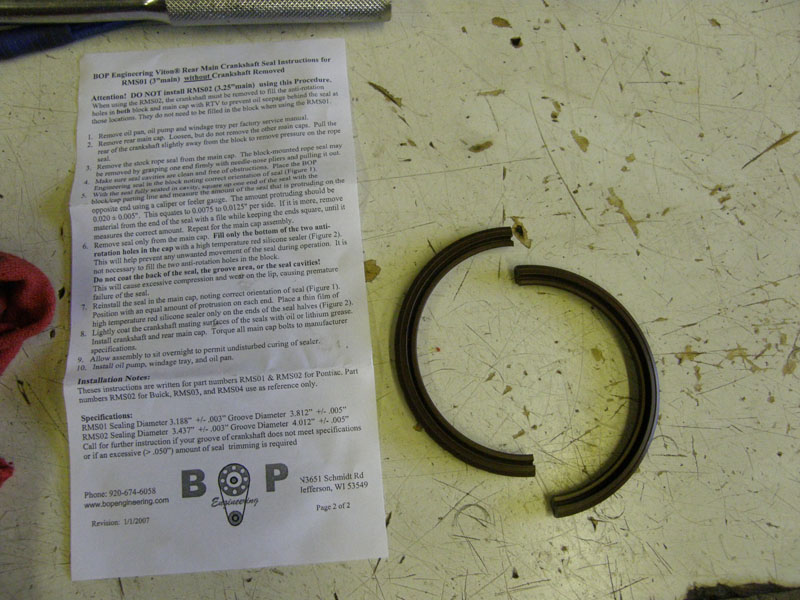

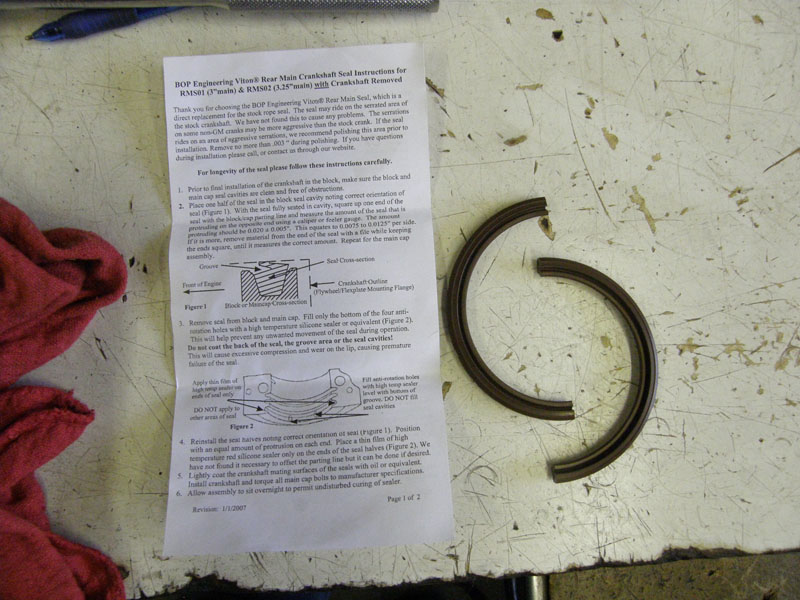

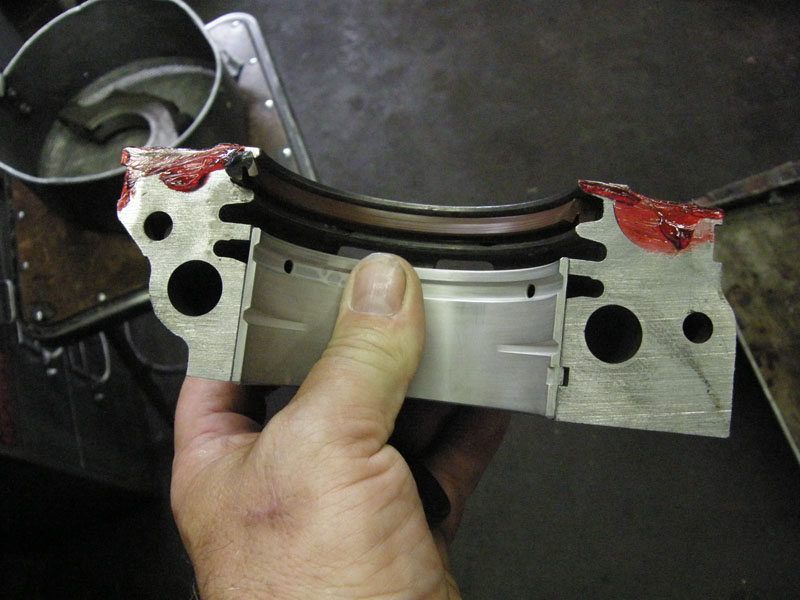

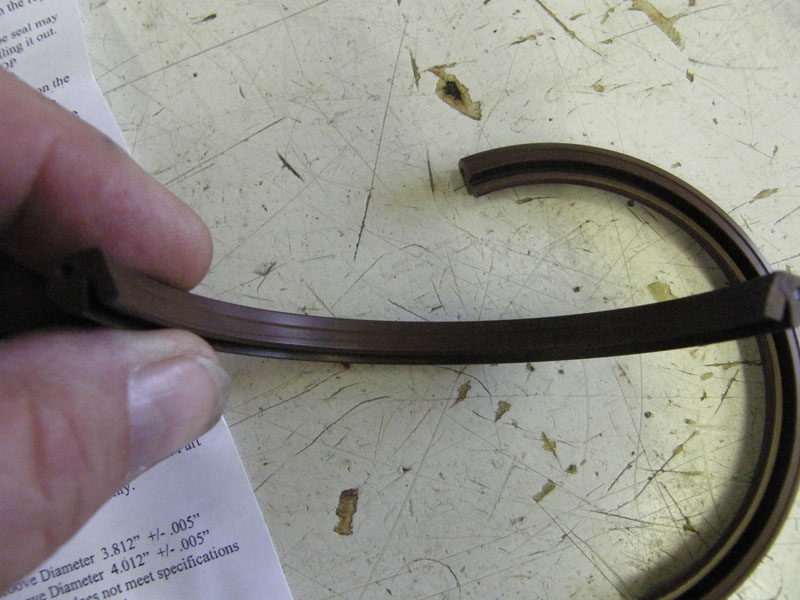

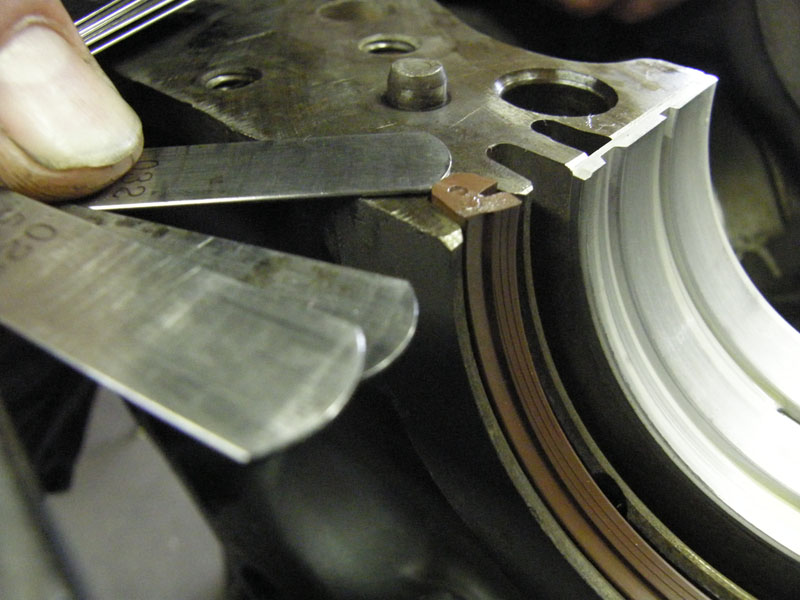

A third design is a smooth crankshaft with a lip on the seal to hold the oil in. The seal that came in the gasket set was the redesigned rope seal, the stroker crankshaft came with the smooth surface on the seal contact point. I had to make a change. Seals made by BOP Engineering are a two piece rigid section that use Vitron sealing lips and require minor trimming to fit. Be careful when trimming to assure the overall length is correct, the mating surfaces are flat, and that the edges of the two pieces mate with no gaps.
 Oil_Seperator_Clearance_010_small  Seal_050_small

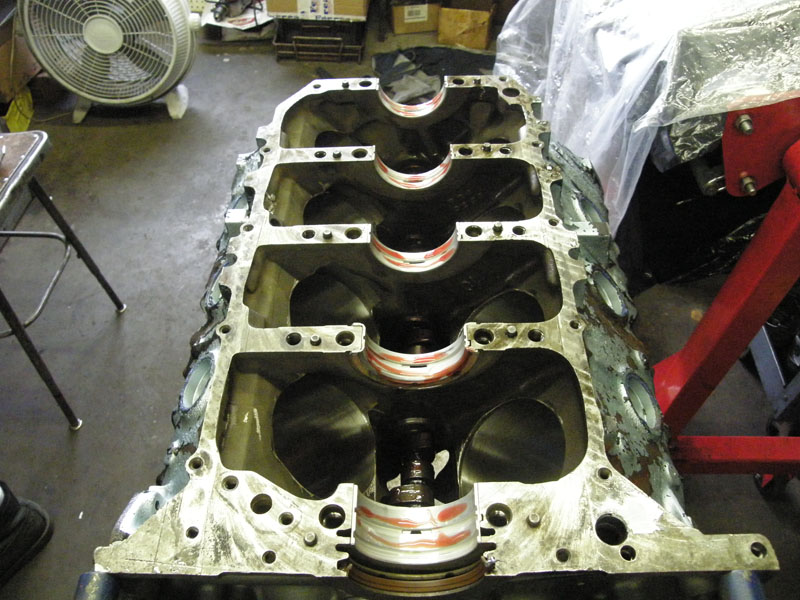

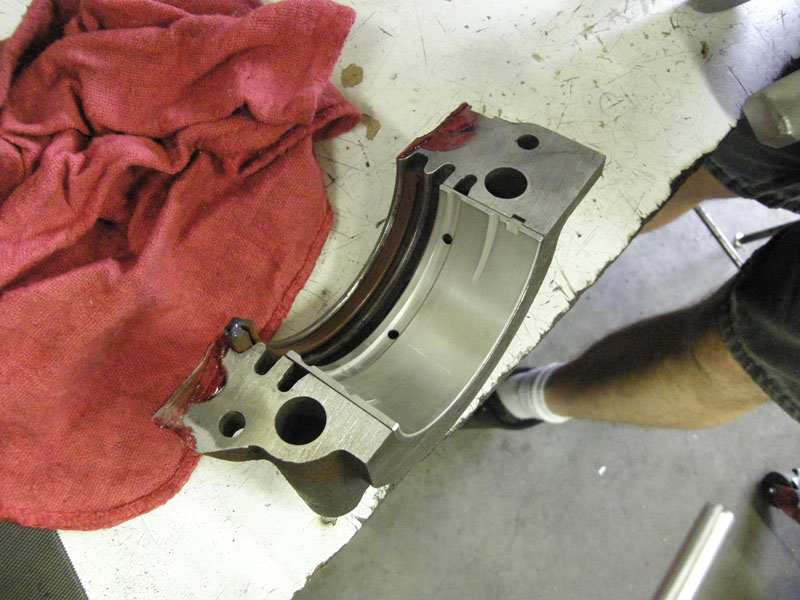

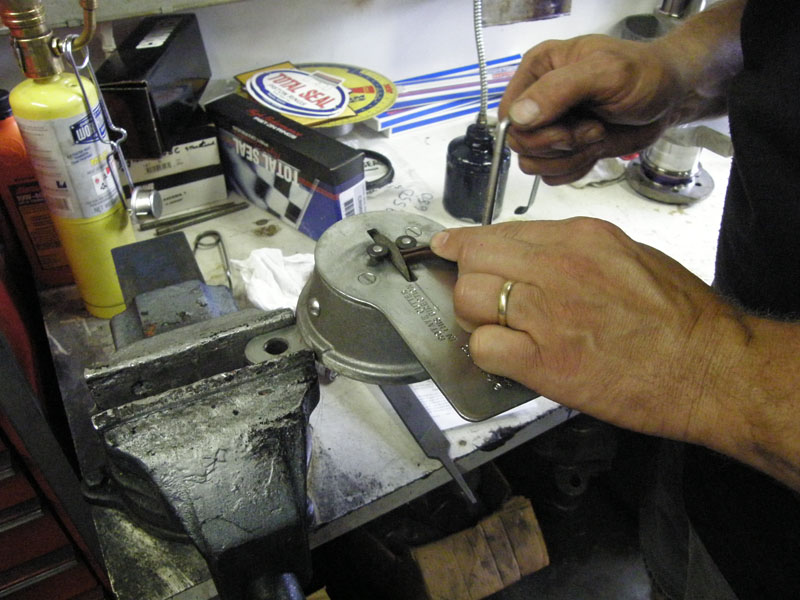

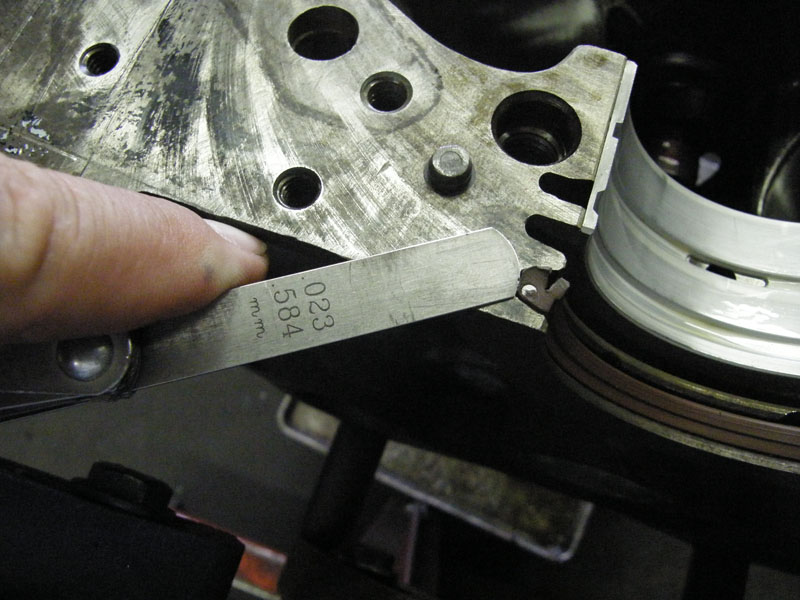

So, I ordered the BOP Engineering seal and had it shipped overnight as we were stopped dead in or tracks. and this is the install.
 Seal_030_small  Seal_040_small
 Seal_060_small  Seal_070_small
 Seal_080_small  Seal_090_small
 Seal_100_small  Seal_110_small

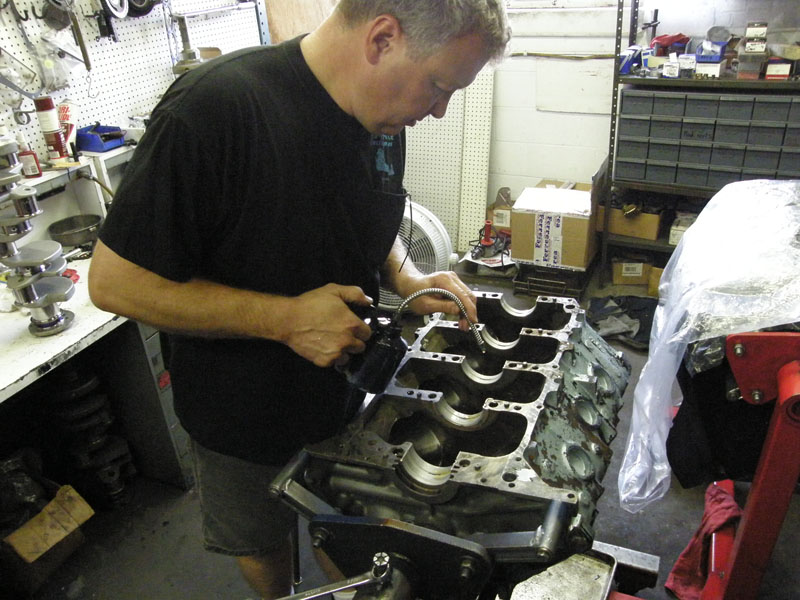

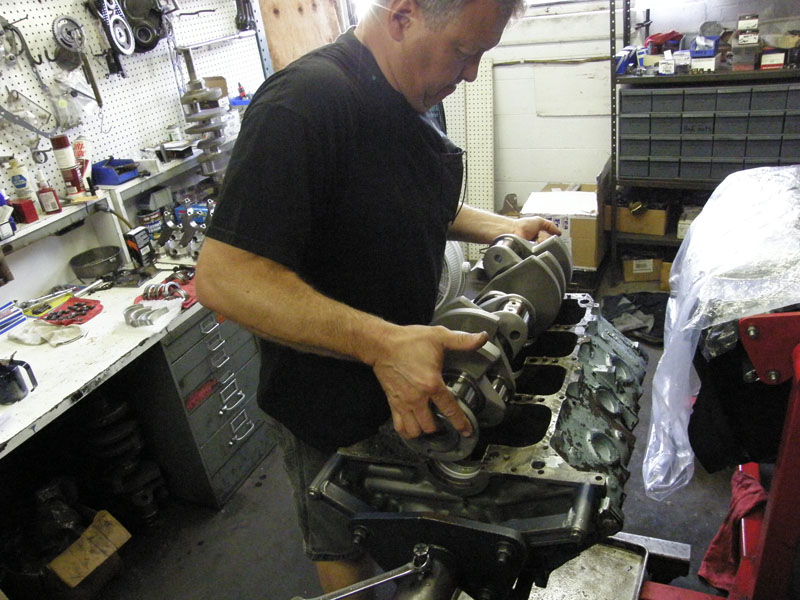

Ok, now we are finally ready to set the new stroker steal forged crankshaft in.
 Install_crank_010_small  Install_crank_020_small

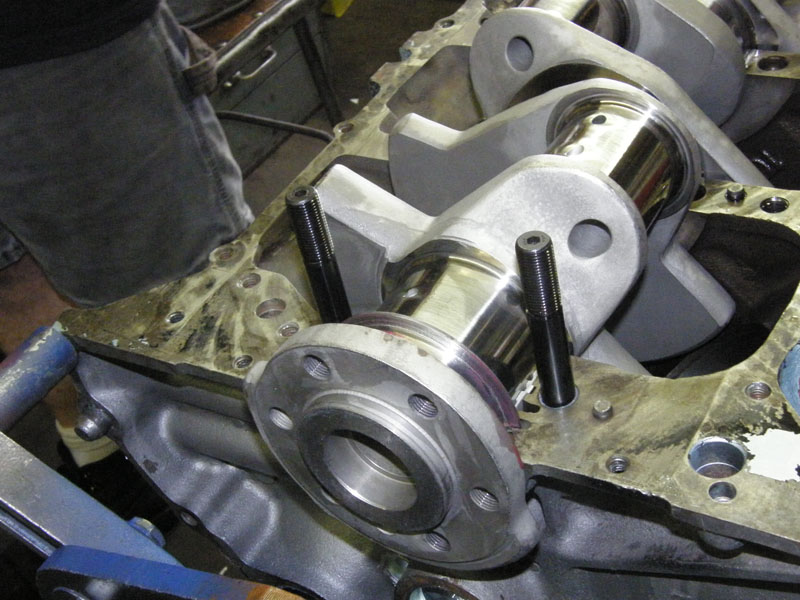

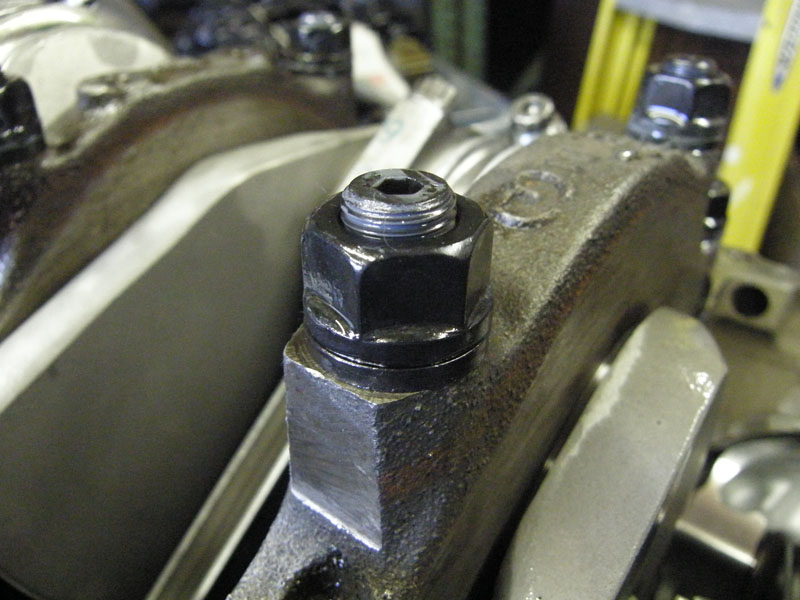

Install Main Bearing Studs, ARP of course.
 Main_Studs_010_small  Main_Studs_020_small

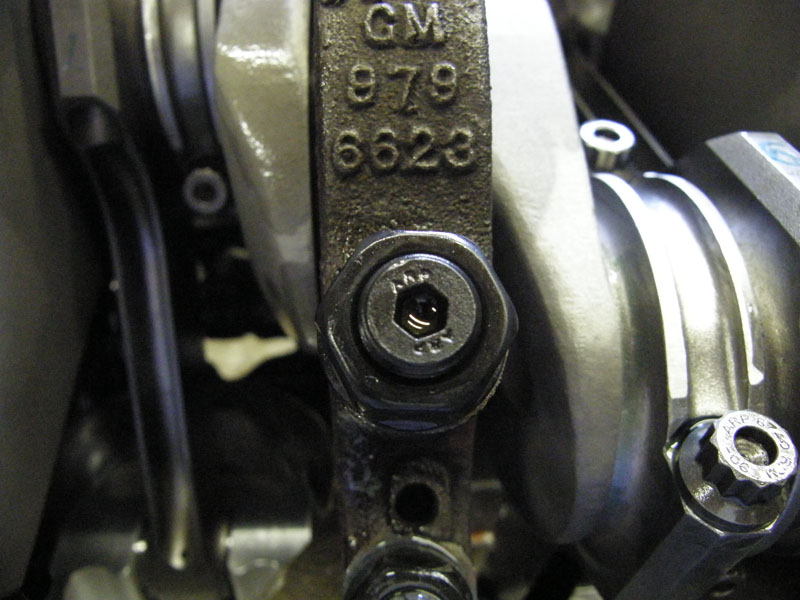

 Main_Studs_030_small   Pretty.
Time to install the new forged “H” beam rods. To do this the Aftermarket rod bearings had to be sized to fit the aftermarket crank shaft.

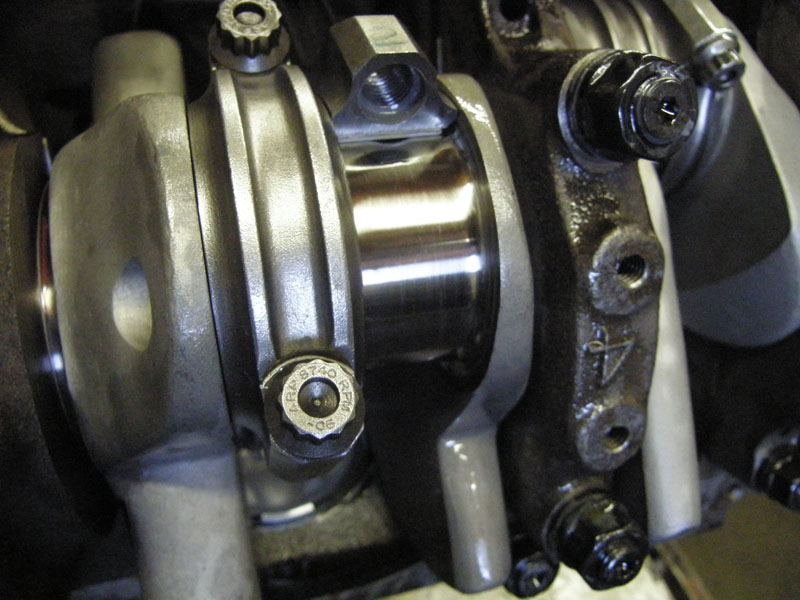

 Rod_Bear_Install_010_small Here is what I mean. If you enlarge the picture to the right (click on it) you will see that the rod bearing has been chamfered so that it does not ride on the radius of the crankshaft. If they had been installed out of the box the edge of the rod bearing would have worn into the radius of the crankshaft. Not the trust surface of the rods will ride against the trust surface of the crankshaft. The trust surface of the crankshaft was checked for smoothness.

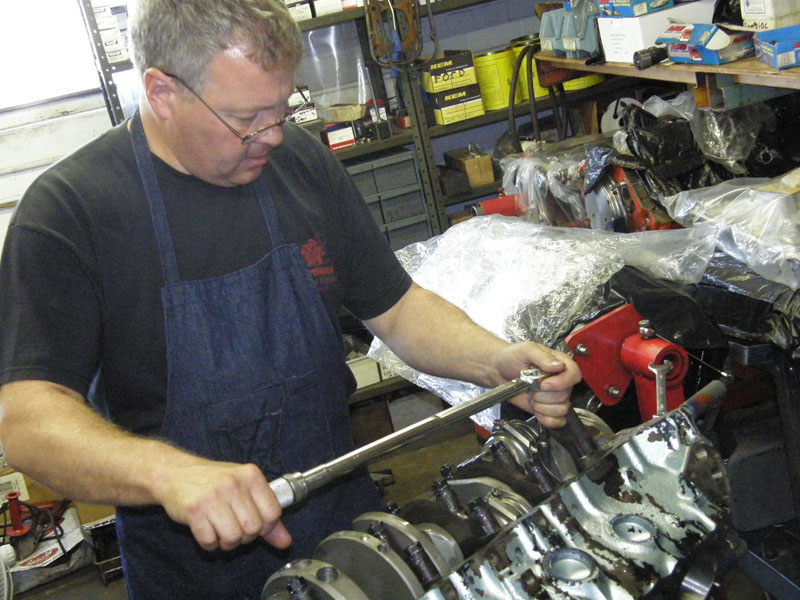

 Rod_Bear_Install_060_small   Once this was done the ARP rod bolts were torqued to spec.

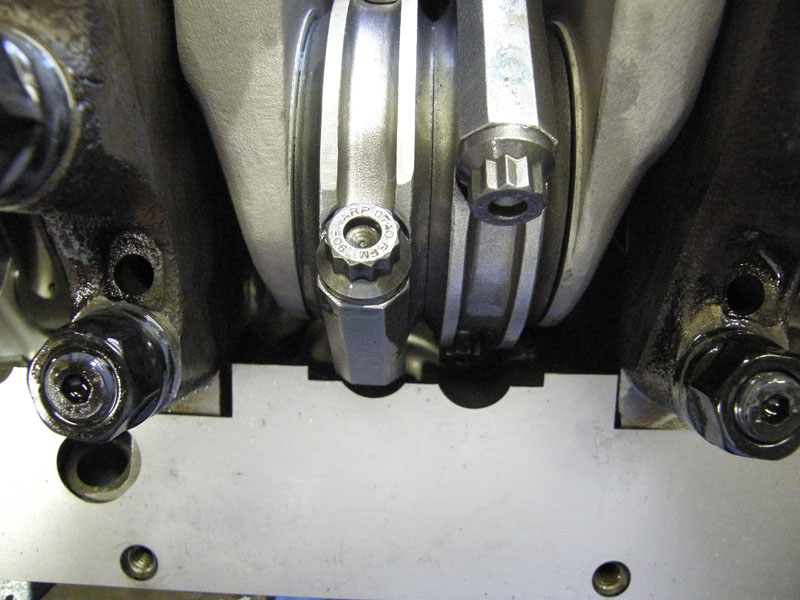

 Rod_Bear_Install_070_small This was only used to get the bolts close to the correct tightness. Bolt stretch was used to get the correct tightness. The way this is done is the bolt is measured before an stress is put onto it. It is then repeatedly measured until the correct stretch is achieved.
 Rod_Bear_Install_050_small  Rod_Bear_Install_110_small

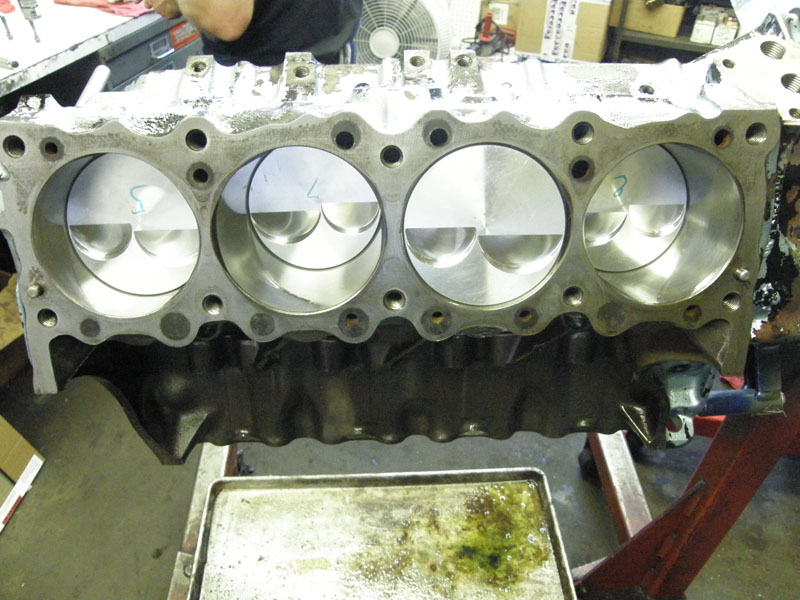

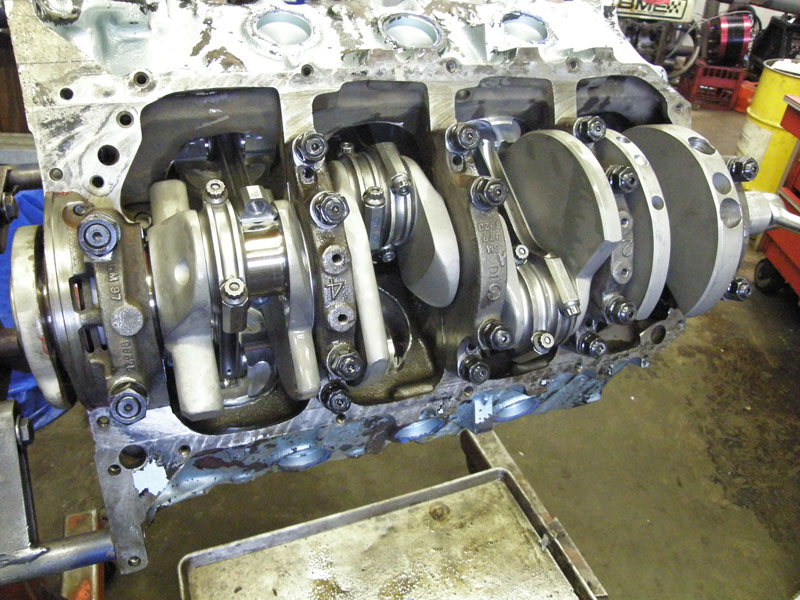

 Rod_Bear_Install_090_small   Rods, crank, and pistons are now installed.

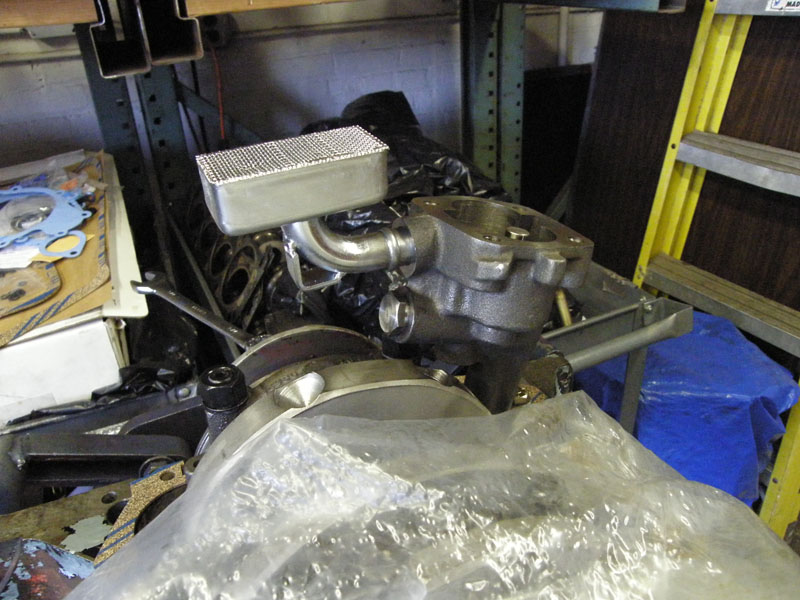

 Oil_Pump_010_small   Put the oil pump in, weld the new pickup in, check clearance to the bottom of the pan. New pickup is needed for the new seven quart pan.

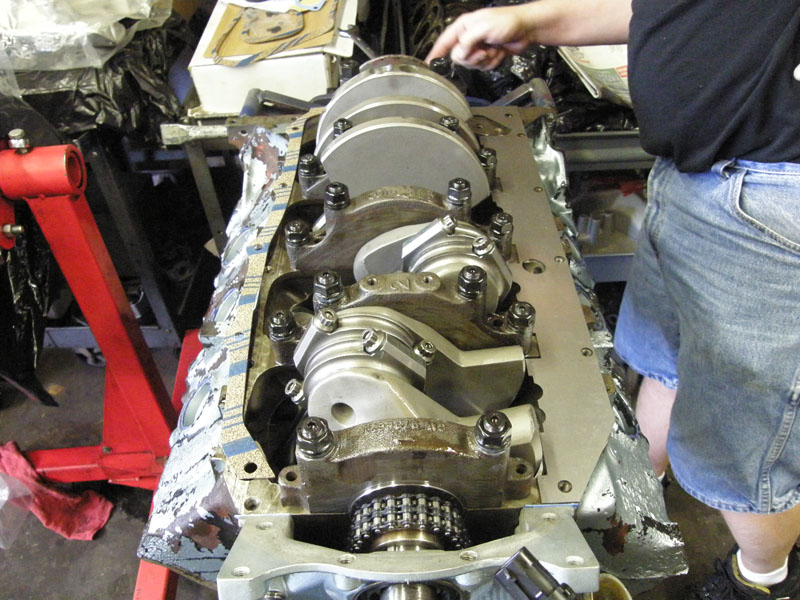

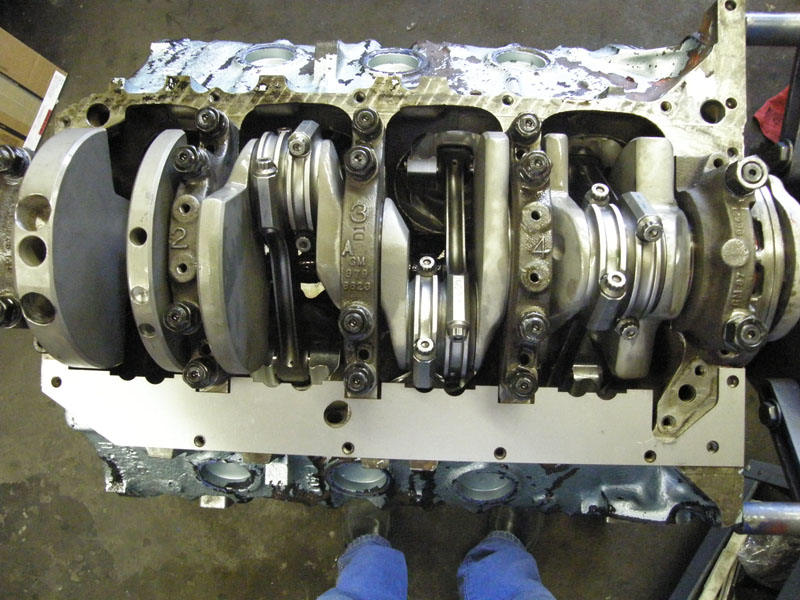

Here we have an aftermarket part that fit. I have replaced the windage tray with an oil scraper.
 Oil_Scraper_010_small  Oil_Scraper_020_small

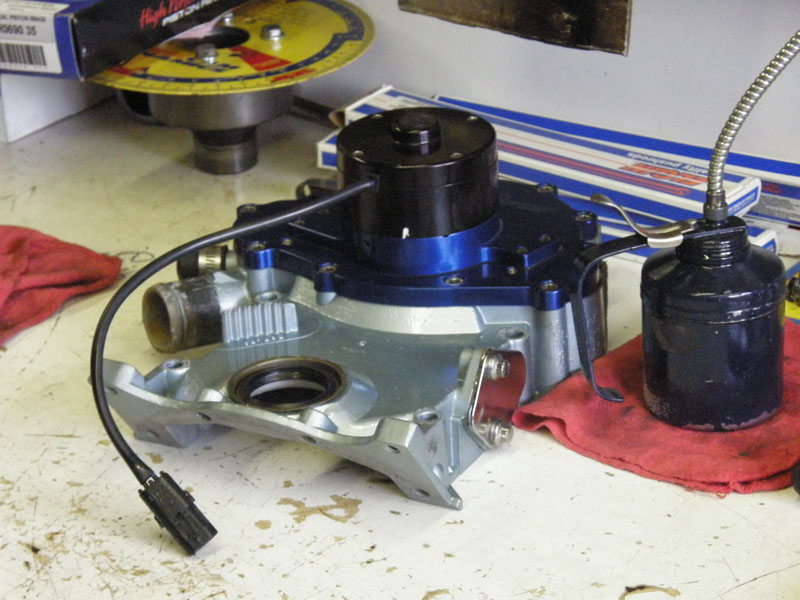

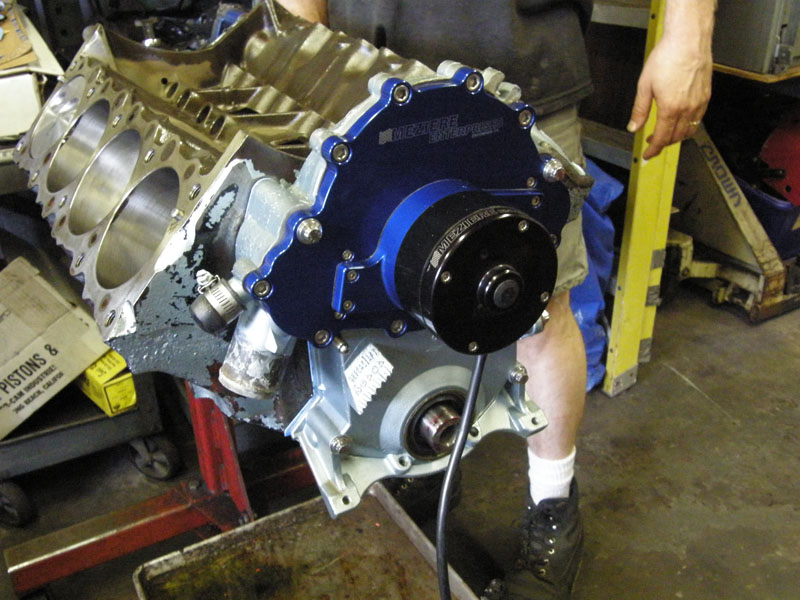

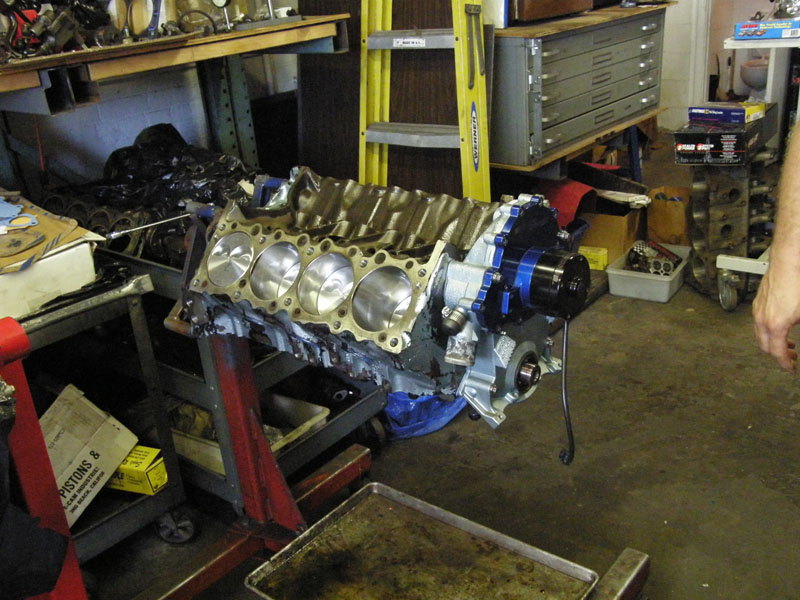

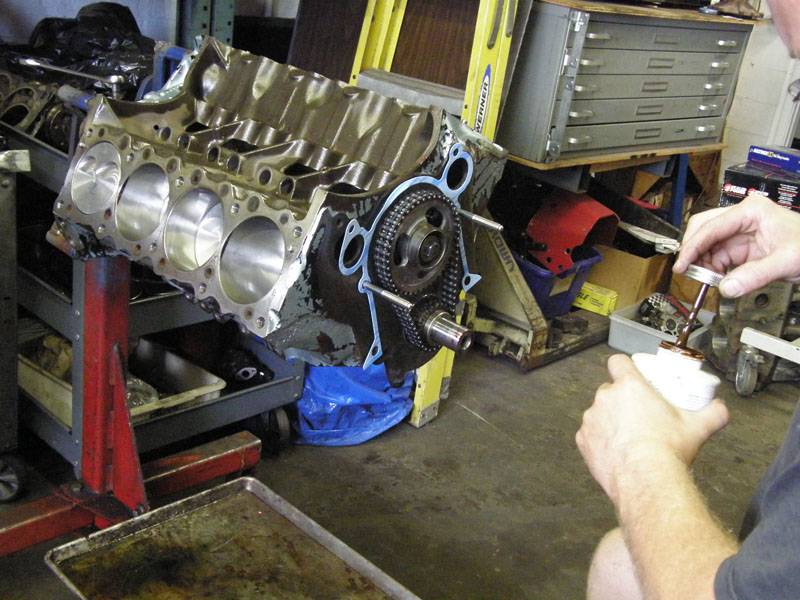

Next, install the water pump
 Water_Pump_010_small  Water_Pump_020_small
 Water_Pump_040_small  Water_Pump_030_small

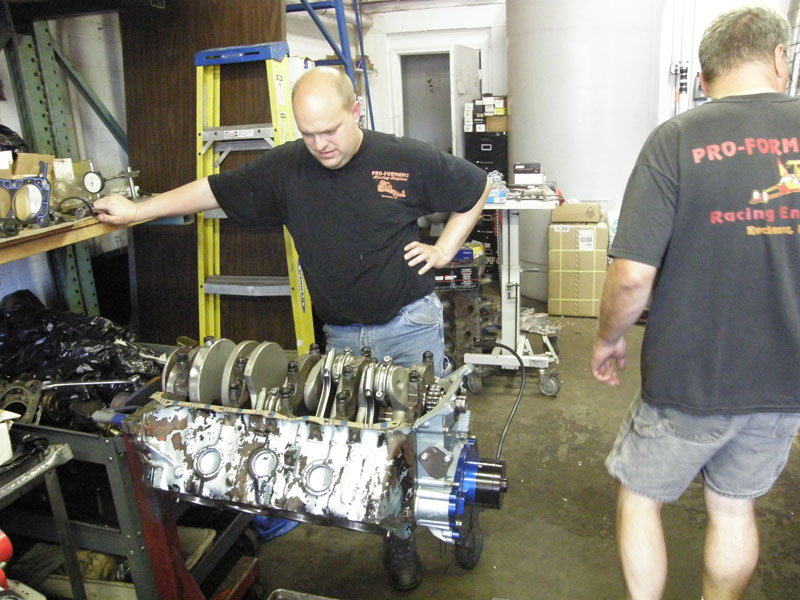

 Water_Pump_050_small   Is this engine ever going to leave this shop?

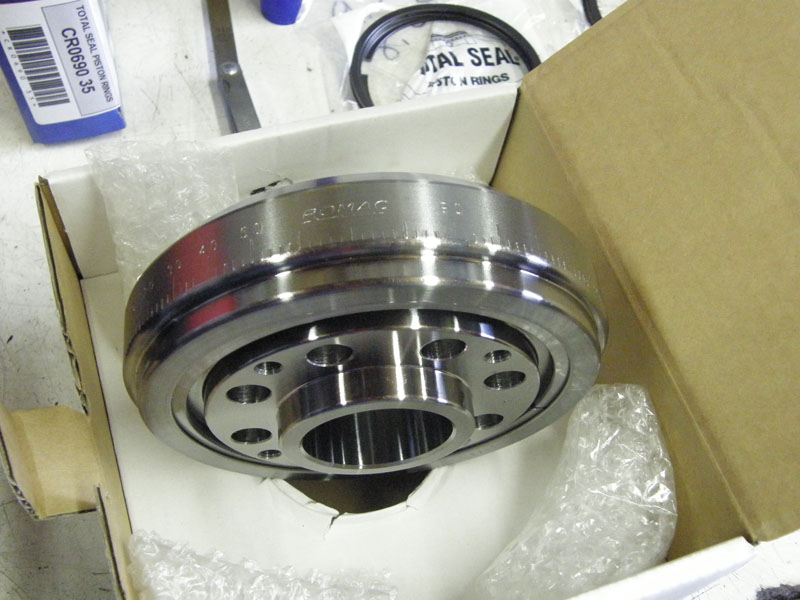

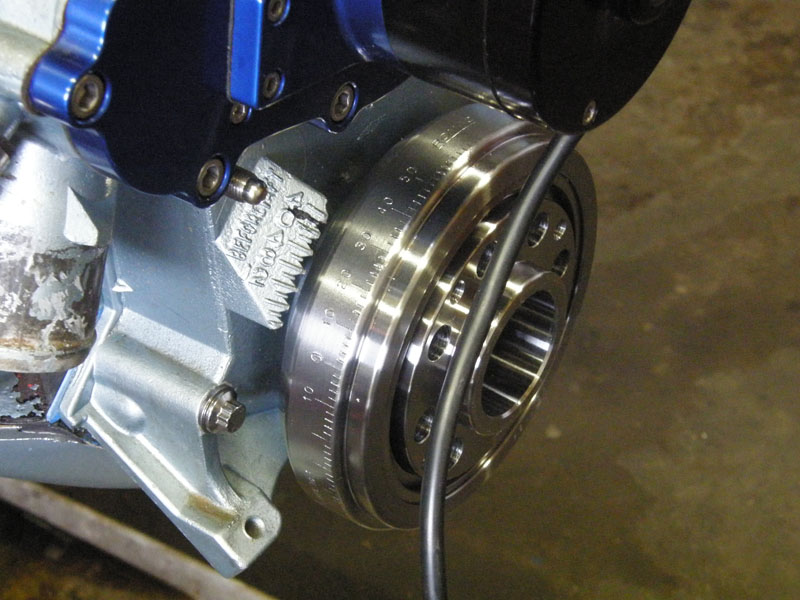

Now the brand new balancer.
 Balancer-010_small  Balancer-020_small

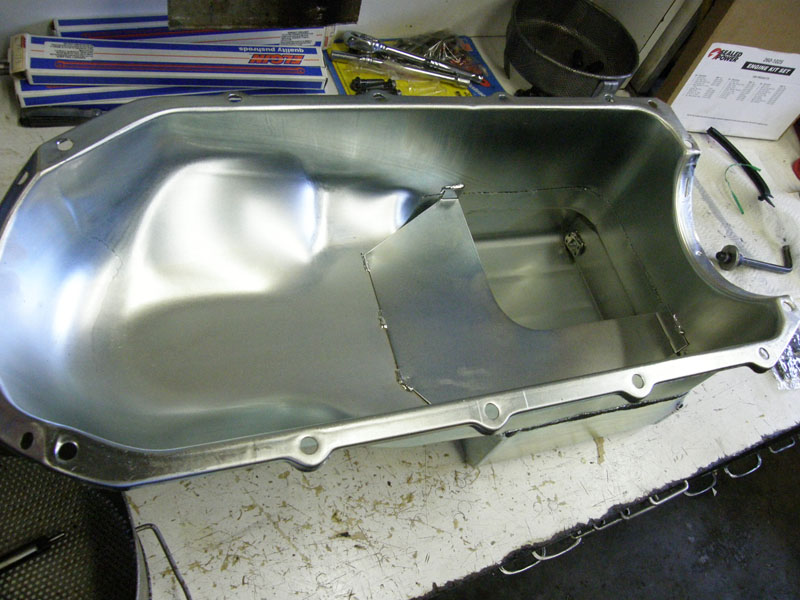

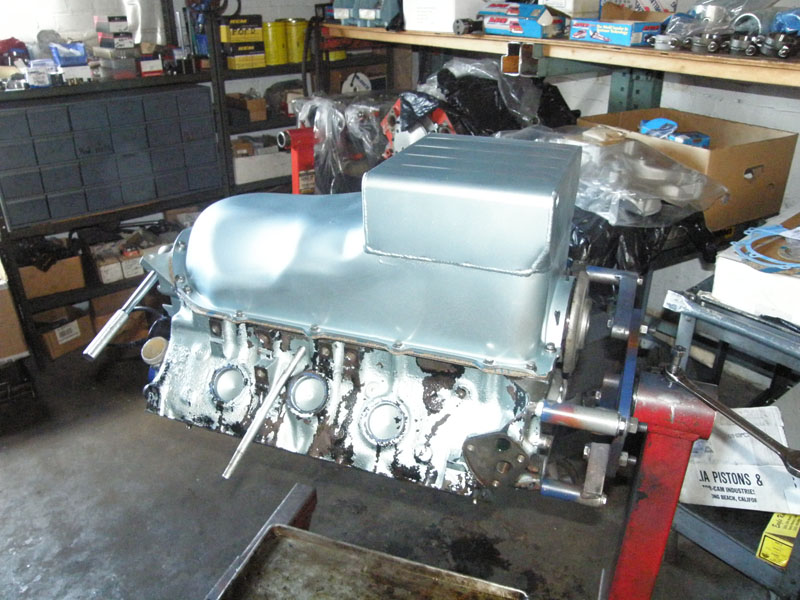

Time to button up the bottom, not forgetting the dipstick tube. This is the fourth aftermarket part that did not fit. The four holes in the front of the pan did not line up with the bolt holes in the block. The holes in the pan had to be filed out of round so that the bolts would fit.
 New_Oil_Pan_010_small  New_Oil_Pan_020_small

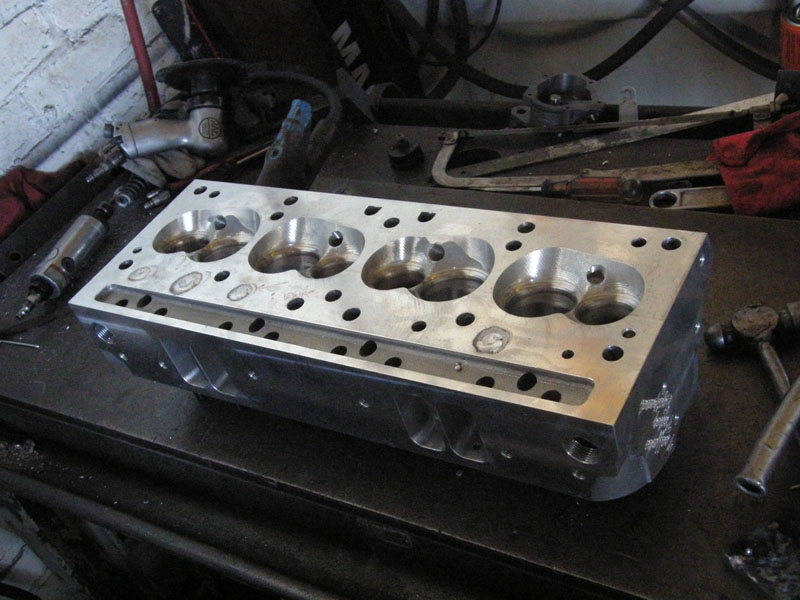

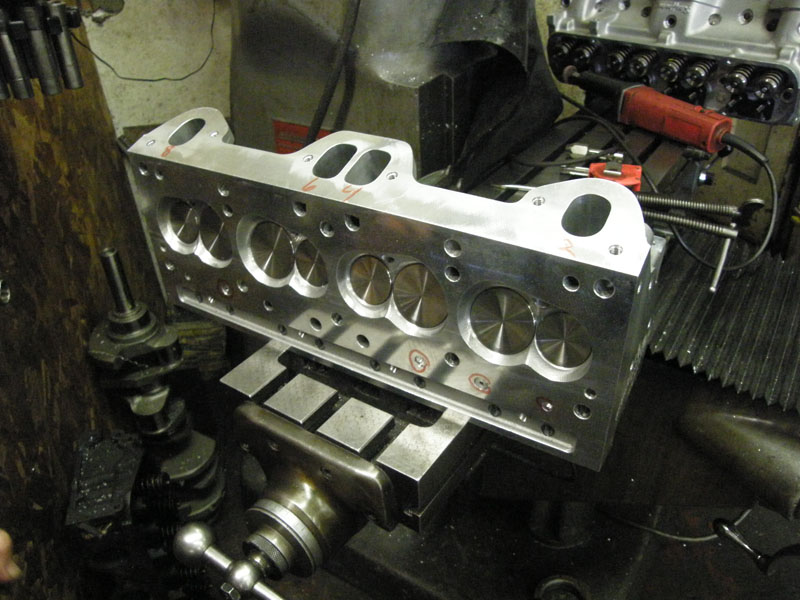

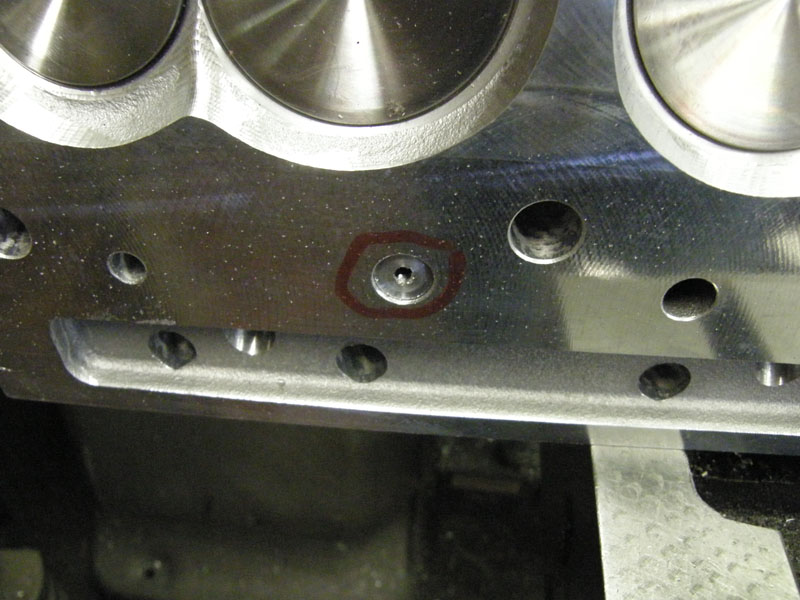

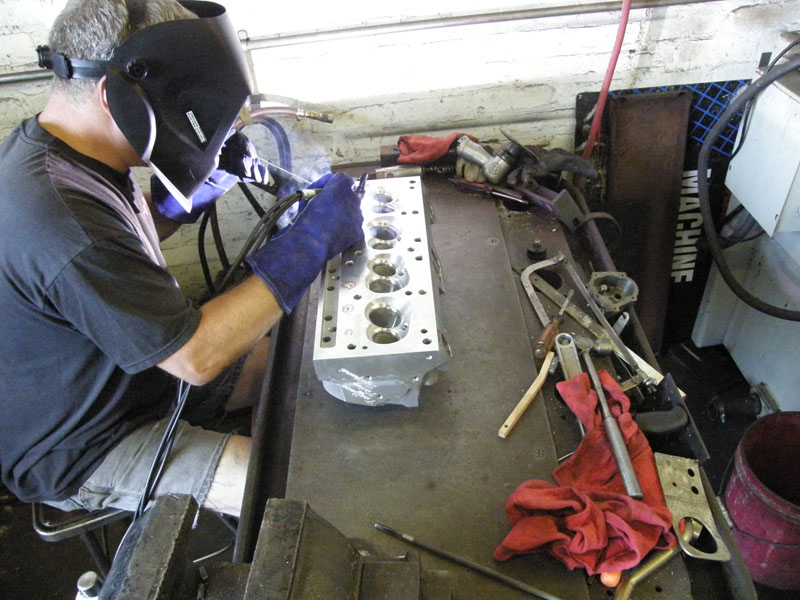

Now for the heads. They were very nice pieces when we got them, but there was still work to be done. The first task we did was on the last two engines the head gasket has failed in the same spot. That spot was in a blind hole that went nowhere. So aluminum plugs were inserted into these holes and welded up. That is one of the nice things about aluminum.
 Head_Work_Plugs_010_small  Head_Work_Plugs_020_small
 Head_Work_Plugs_030_small  Head_Work_Plugs_040_small

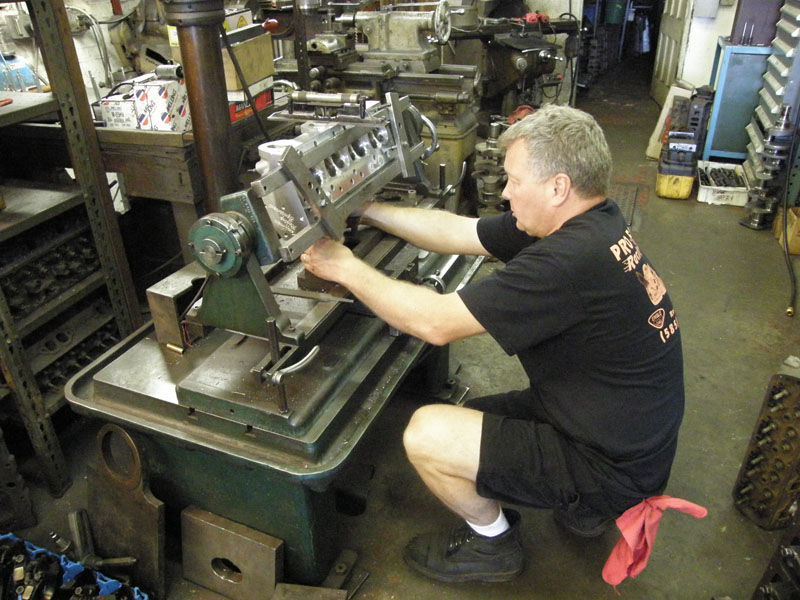

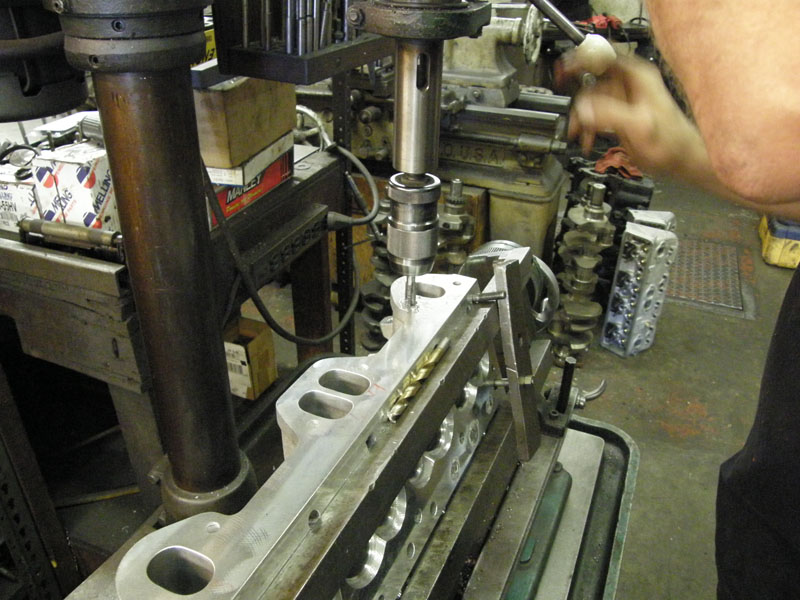

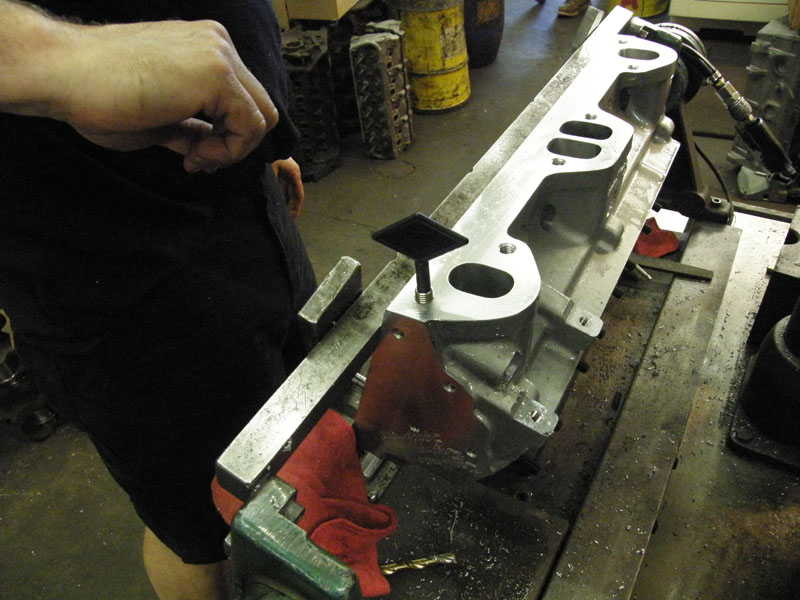

The next thing that was done to improve the heads was to put Heil Coils into the head for the head bolts as a precaution.
 Heil_Coil_Exhaust_Bolt_Holes_010_small  Heil_Coil_Exhaust_Bolt_Holes_020_small
 Heil_Coil_Exhaust_Bolt_Holes_030_small  Heil_Coil_Exhaust_Bolt_Holes_040_small

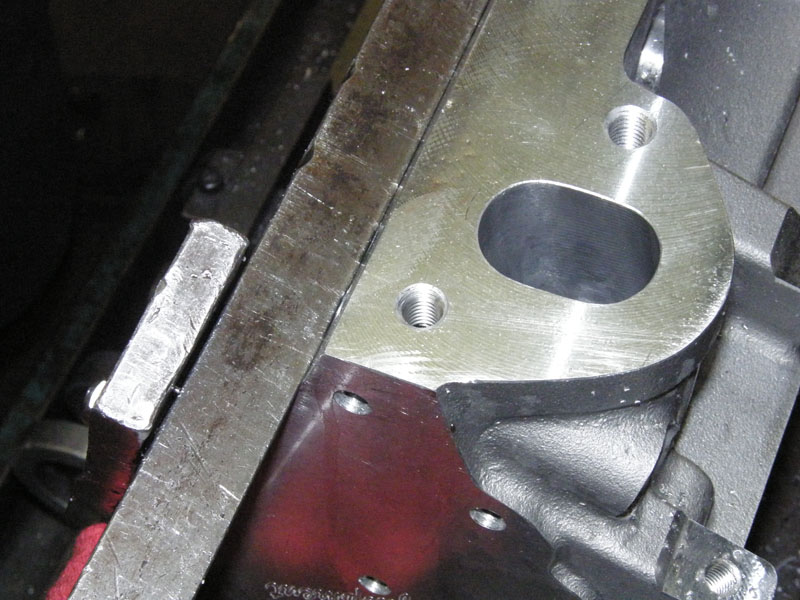

 Heil_Coil_Exhaust_Bolt_Holes_050_small All done, these should last a long time now.
 Smooth_Oil_Returns_010_small

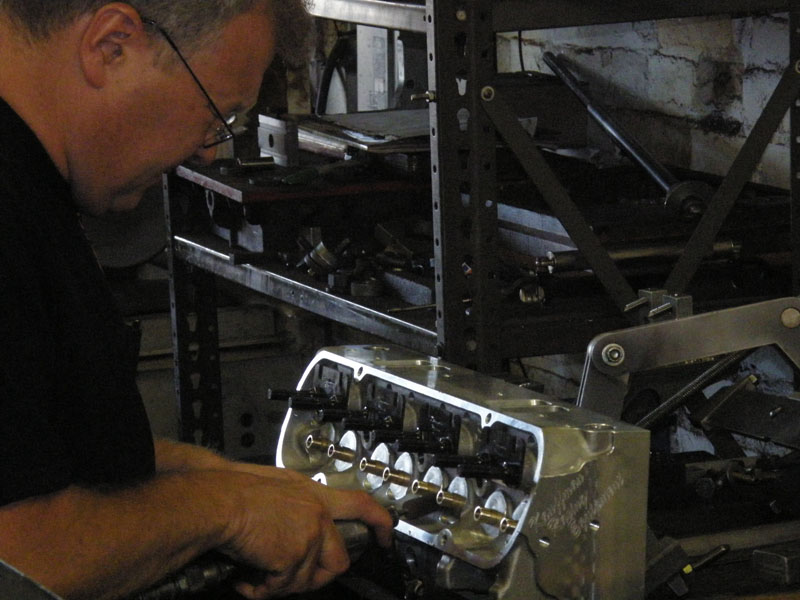

Next improvement was to smooth out the edges of the oil returns

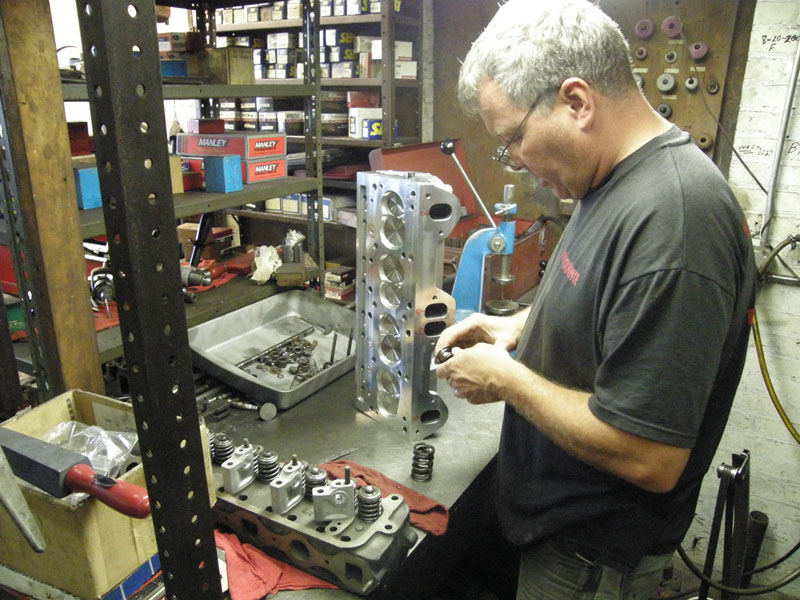

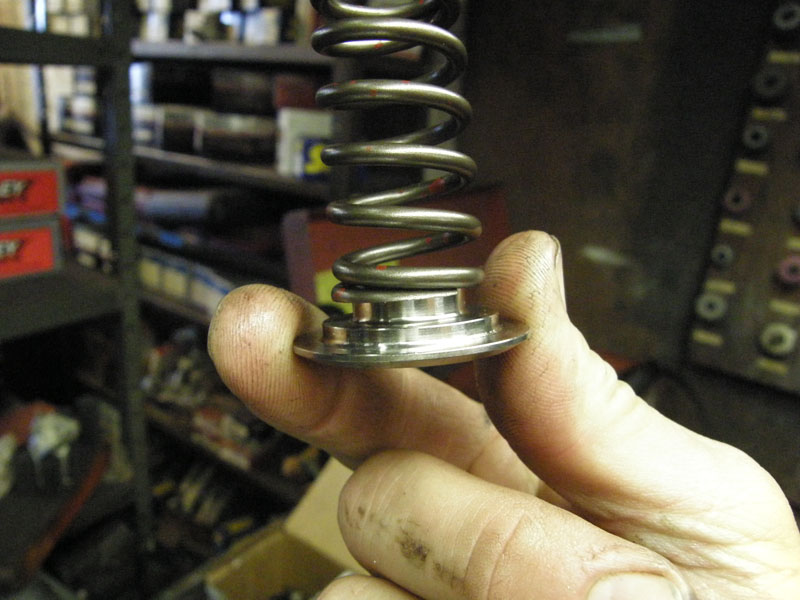

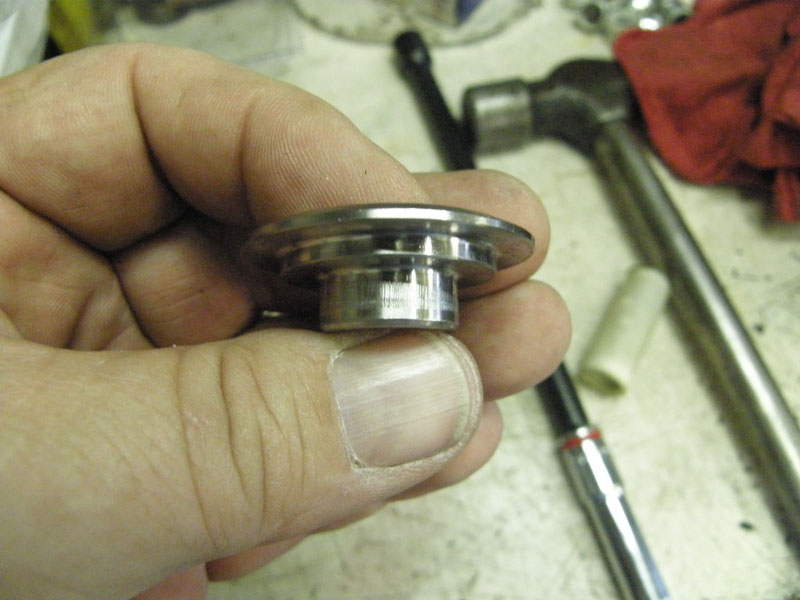

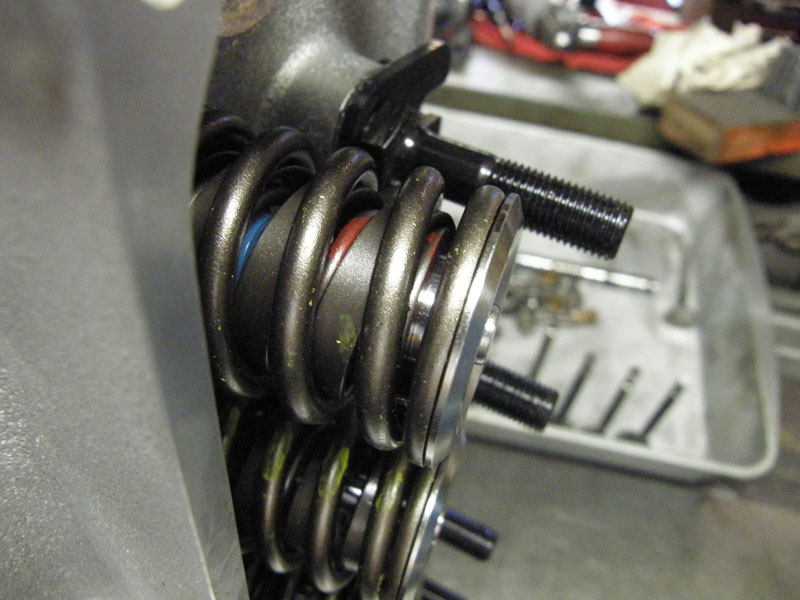

The fifth aftermarket fitment problem was the valve spring retainers and the inner springs. Even with the springs installed and 150 foot pounds of pressure of close valve spring pressure the inner springs did not slip down over the retainers. This was really a shame as I paid a lot of money for the titanium valve spring retainers.
 Valve_Spring_Retainer_010_small  Valve_Spring_Retainer_020_small
 Valve_Spring_Retainer_030_small  Valve_Spring_Retainer_040_small

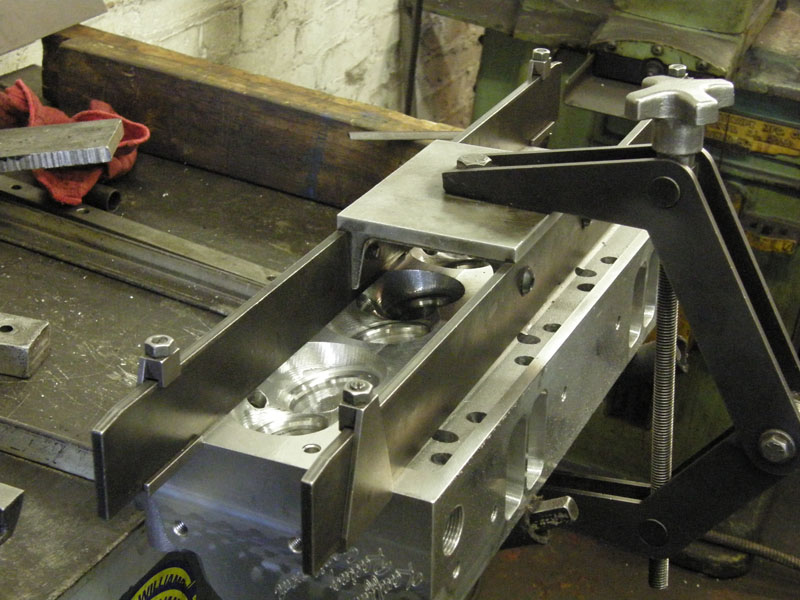

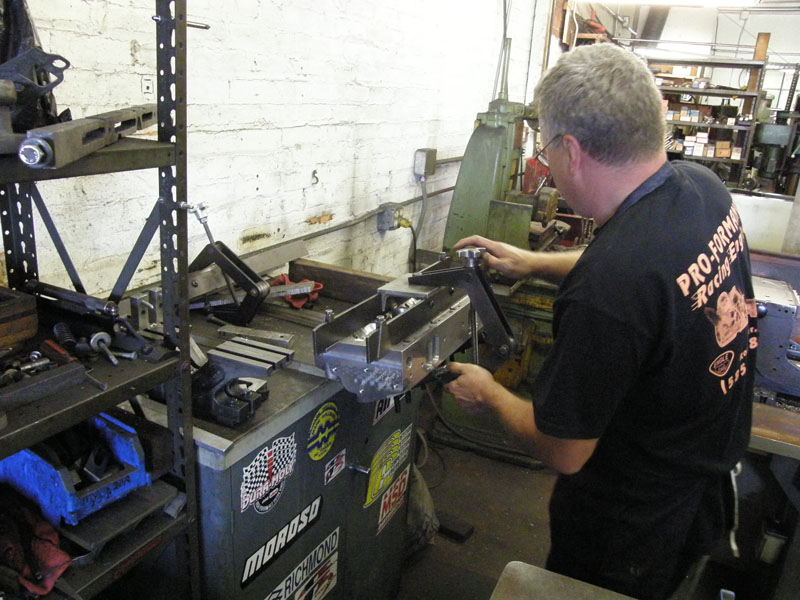

As time is really beginning to pass, and the summer here is short, we just went out and bought a complete set of new valve springs, retainers, and seats. The vendor has agreed to take these back.Now that we are done making metal chips with the heads it is time to get them smooth. The first step is to attach the fixture that will set the milling machine up square to the head.
 Deck_Head_Smooth_010_small  Deck_Head_Smooth_020_small

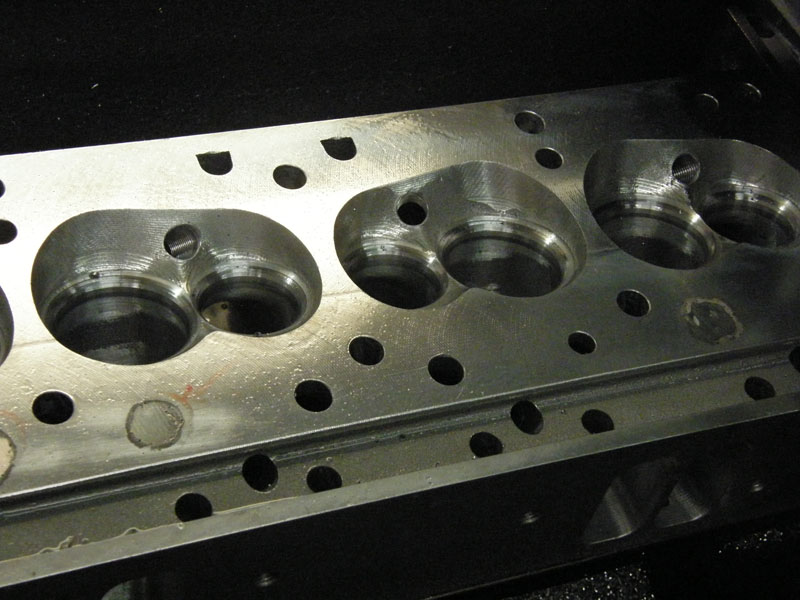

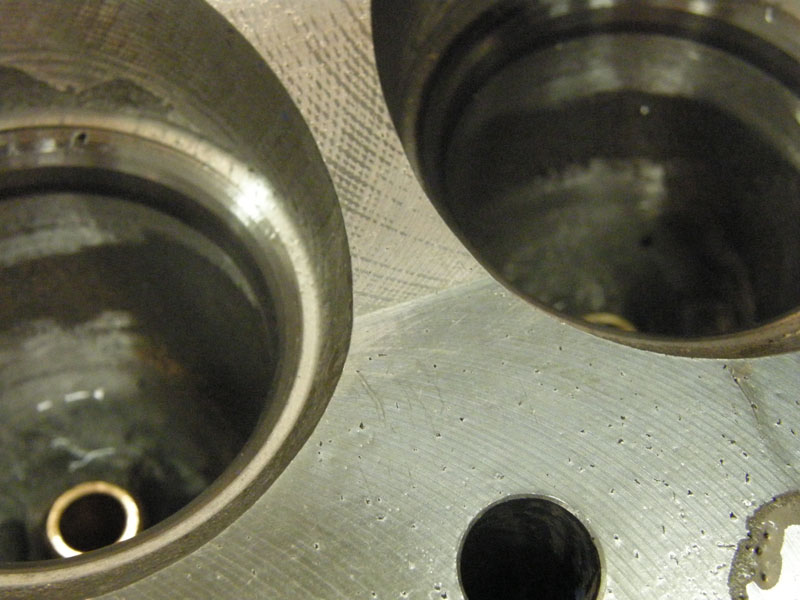

Note the step in the head caused by two passes of the CNC machine that made these heads, and the welded up blind holes.
 Deck_Head_Smooth_030_small  Deck_Head_Smooth_040_small

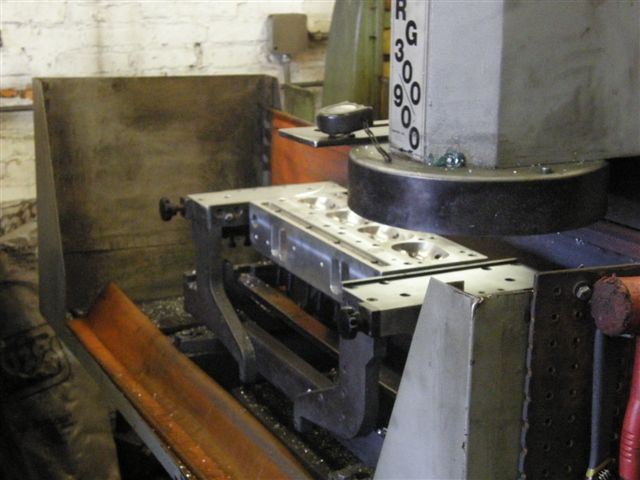

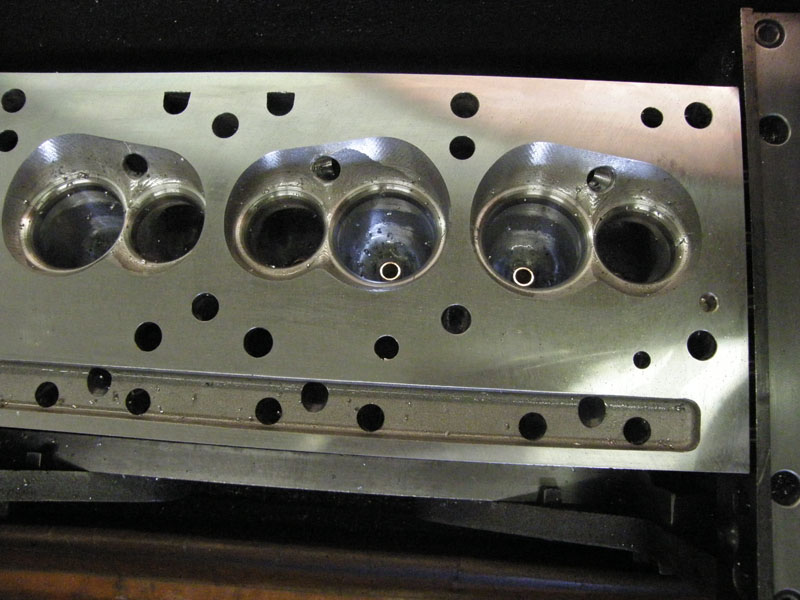

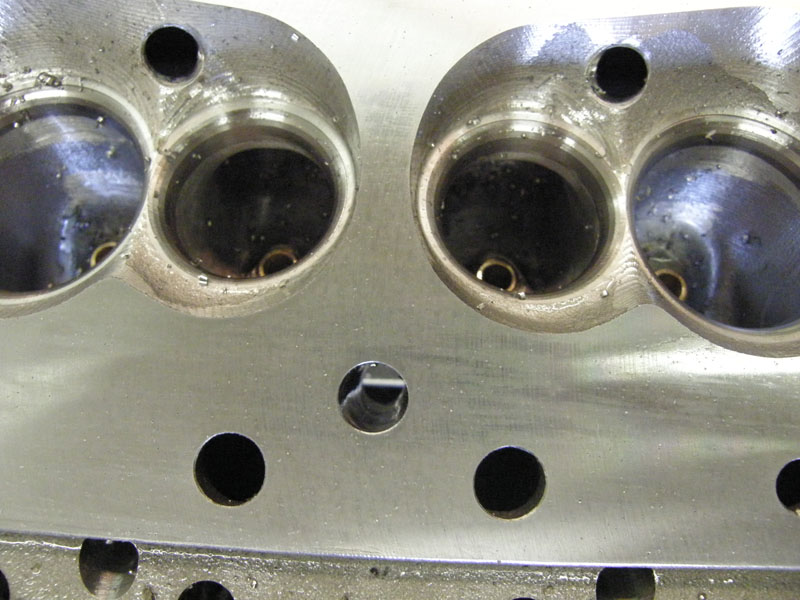

 P8070044_small This is the decking machine, note the difference in the surface of the heads below after decking.
 Deck_Head_Smooth_050_small  Deck_Head_Smooth_060_small

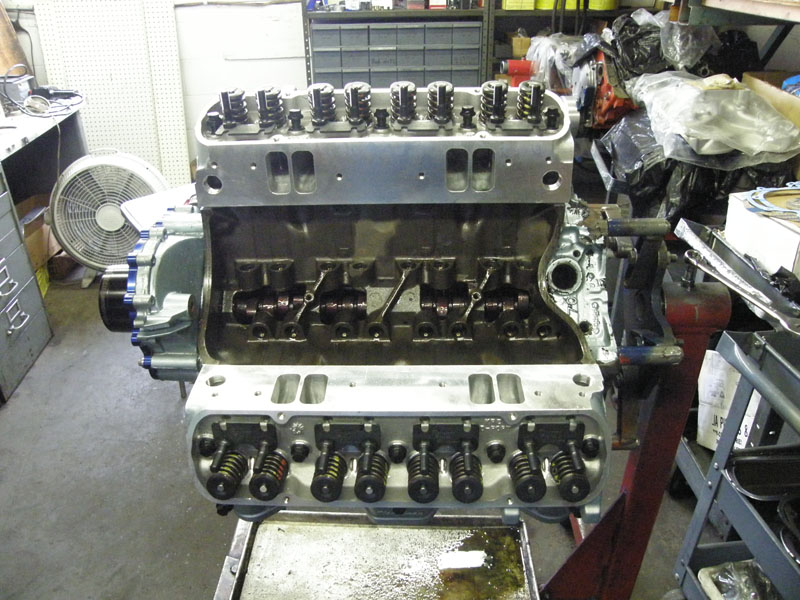

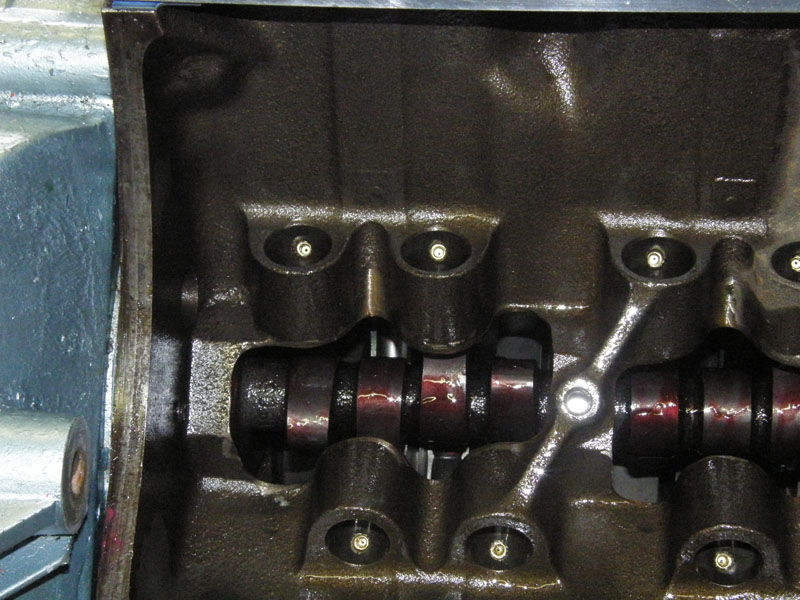

We have restricted the oil flow from the lifters to the rocker arms to provide higher and more consistent pressure for the rod and main bearings. This was done by drilling, tapping, and inserting plugs in the lifter bores that were drilled with a .042 hole. These plugs were purchased as a kit from Kauffman Racing Equipment
 Oil-Restrictors_020_small  Oil-Restrictors_010_small
 Intake_Clearance_010_small

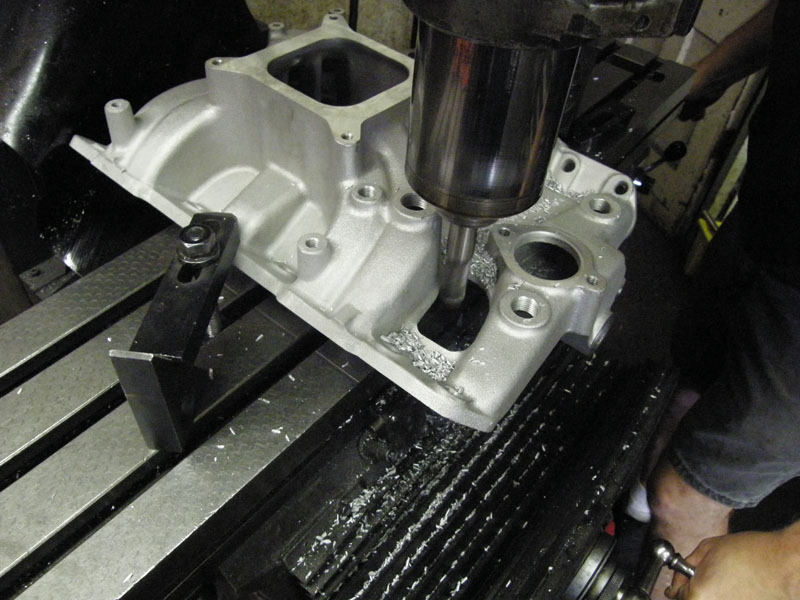

The sixth aftermarket part not to fit was the intake. The area that is cut out for the PCV valve did not line up with the mount for the PCV valve on the aftermarket valley pan.

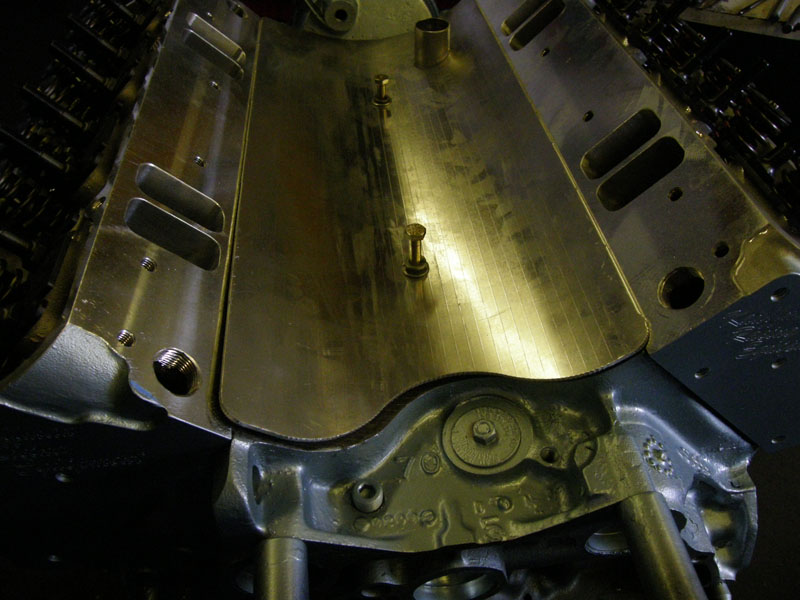

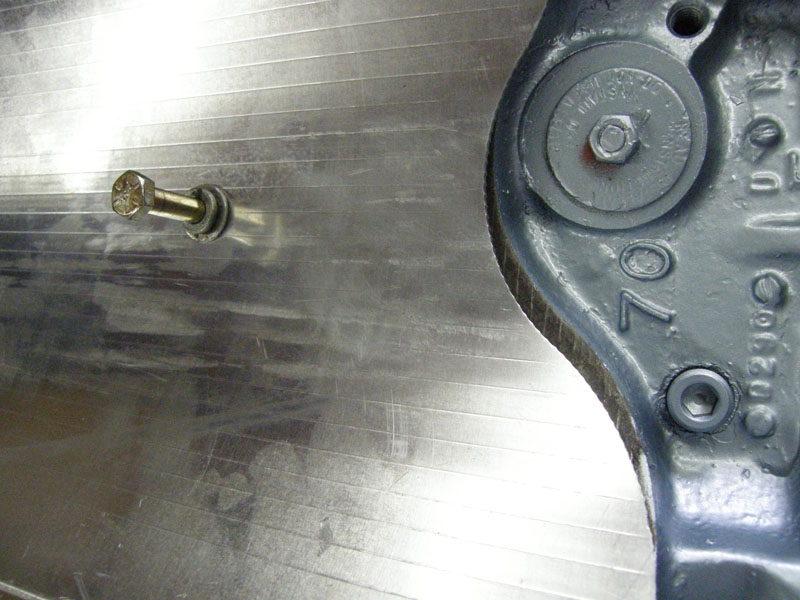

The seventh aftermarket part not to fit this week was the valley pan. the front fit fine, but the back was way off.
 Valve_Pan_010_small  Valve_Pan_020_small

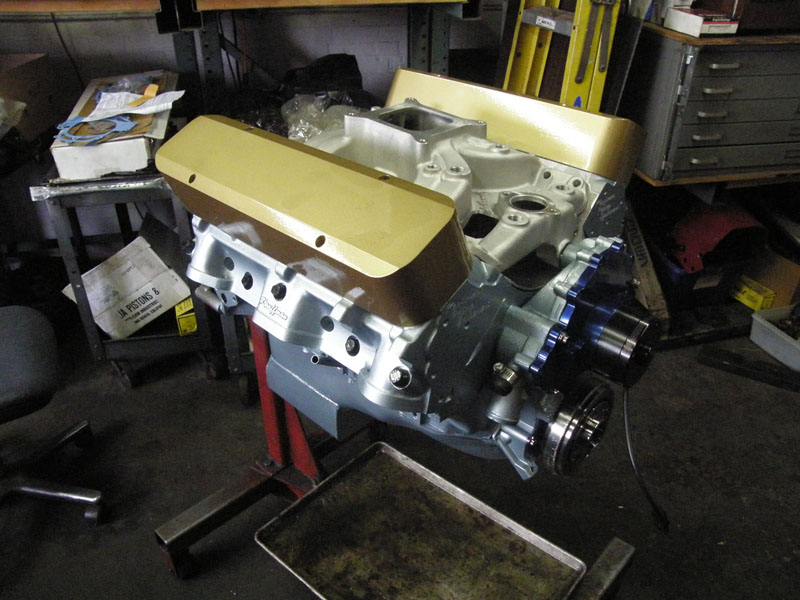

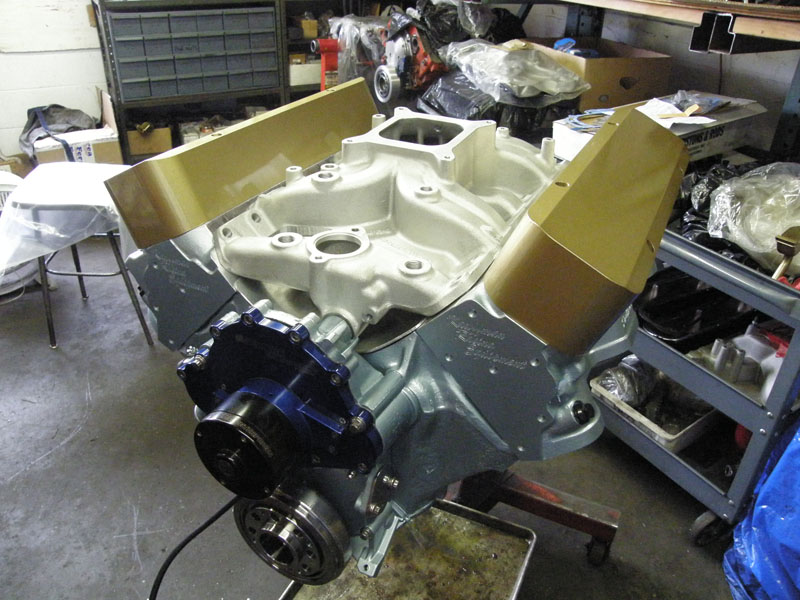

So to make myself feel better as to where we are, we set the intake in place, and the valve covers in place just to see what it would look like.
 Closer_010_small  Closer_020_small
