1997 American Dream MotorHome Trailer Wiring Harness
Click picture to see larger image
 |
This was the Previous Owners attempt at installing a wiring harness for a trailer. It is a little complicated as the Bus has European style tail lights (yellow turn signals with separate red stop lights). There really is no excuse for this mess however |
 |

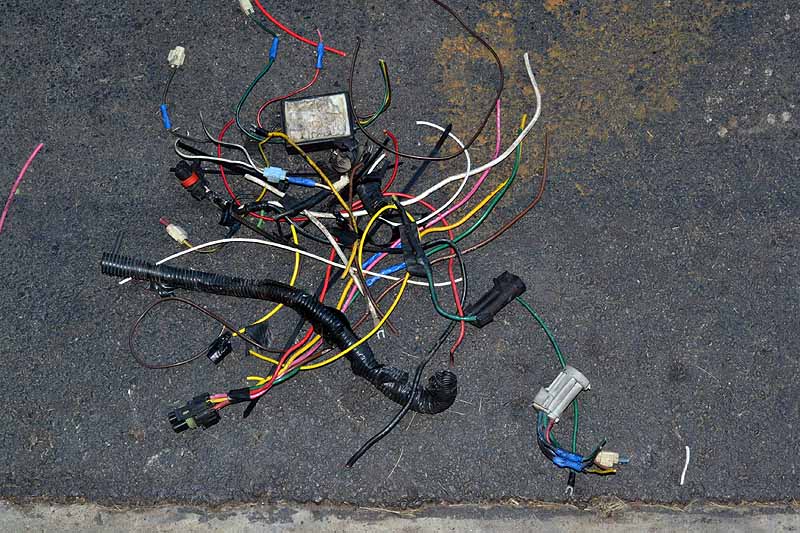

This is the pile of but connectors, twist connections that were removed |
 |

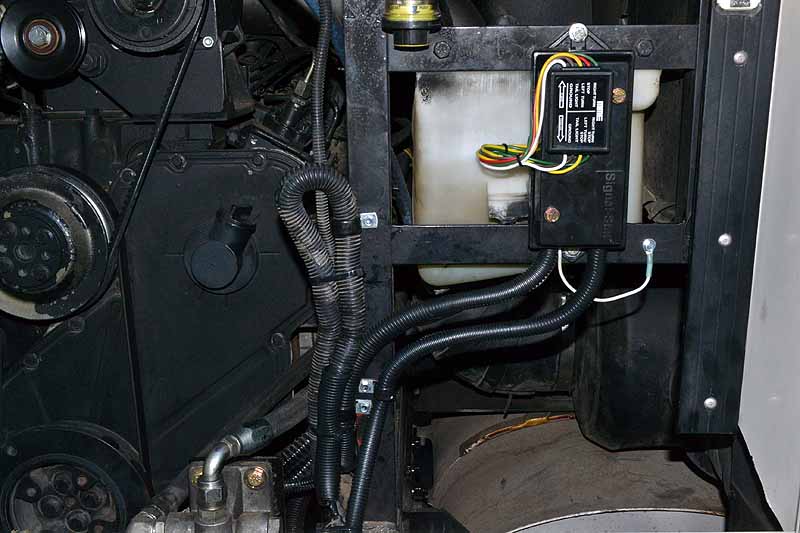

And this is how it should look, a junction box with the conversion module. All connections are soldered and heat shirked |
