2010 Front Engine Dragster Week 2010 09 09

 REMEMBER TO CLICK PICTURES FOR MORE DETAIL / LARGER PICTURE



It has been awhile since I produced an update. There has been progress on a couple of fronts. I am sitting here waiting from a call from the painter to see If I will be running out to Indiana tomorrow. If I do not leave tomorrow, I will not be able to leave for Indiana until next Thursday. It will be very tight but on tI might be picking up the dragster to brine.

First up are the mechanical updates

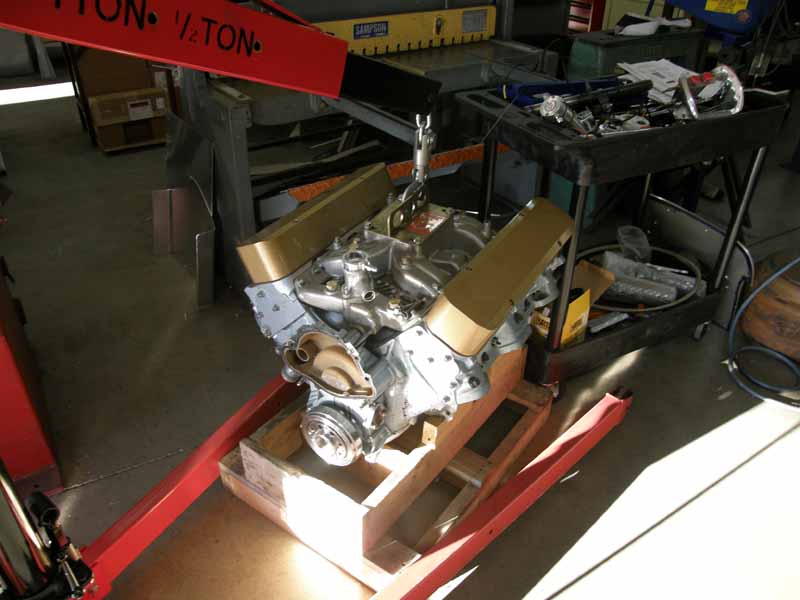

P8270007_small Here you see the front of the engine with out the water pump. The engine plate bolts between the water pump and the timing cover. This moves the water pump out so shims have to be made so that the nipples of the water pump engage the timing cover.

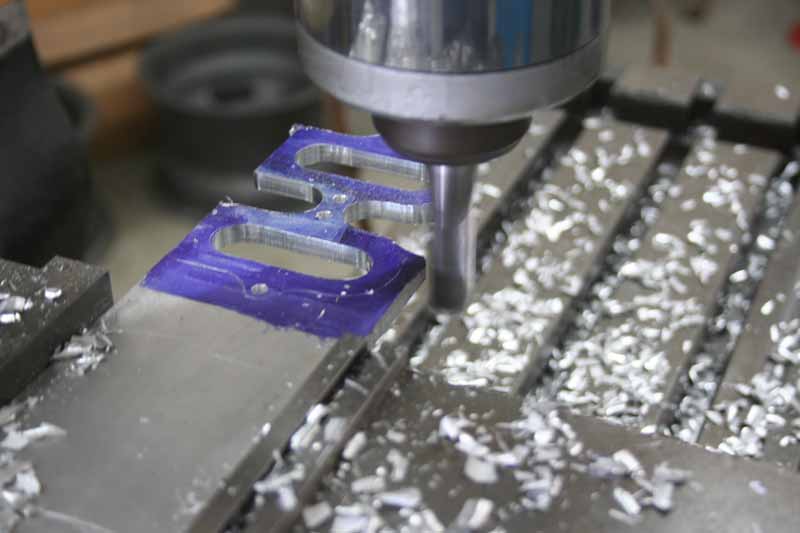

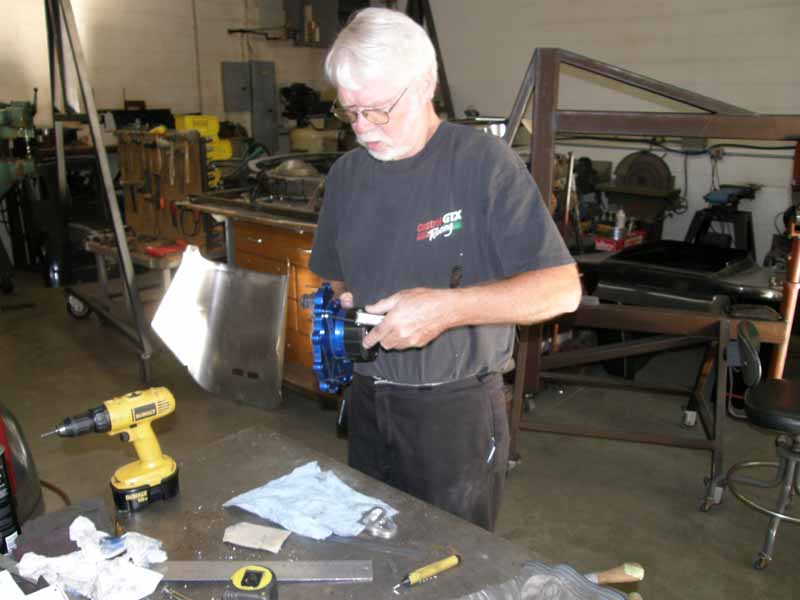

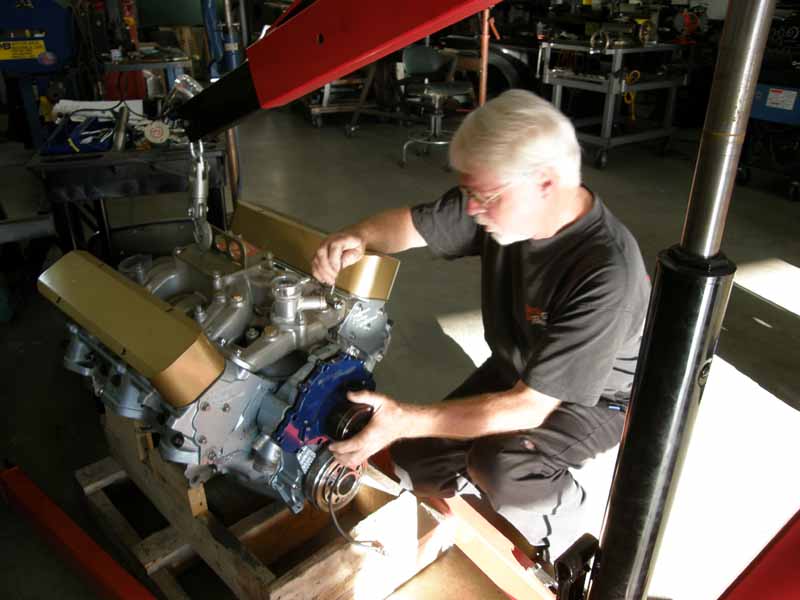

 IMG_6422_small Here the shims have been made, and below they are being installed. On the last trip out the engine was brought back here to Rochester for detailing. The valve covers need to be stripped and redone, and breathers installed.
 P8270009_small  P8270010_small

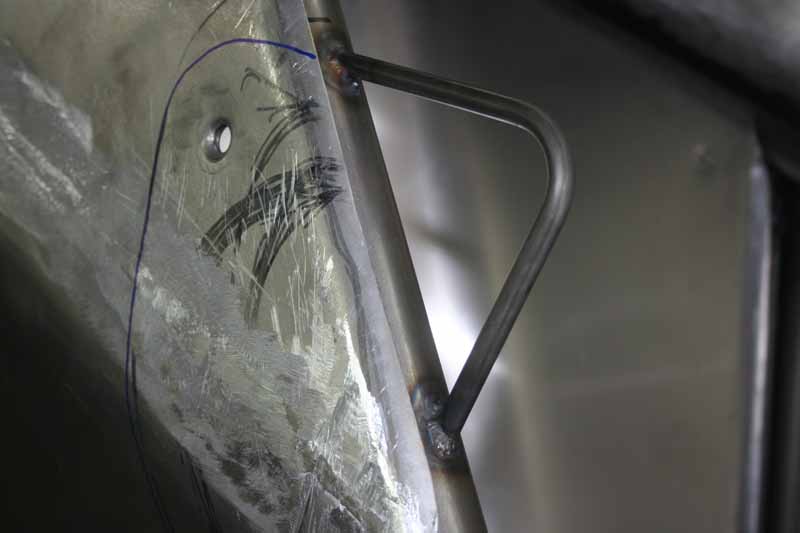

IMG_6412_small Arm rests have been installed to help getting in and out of the dragster.

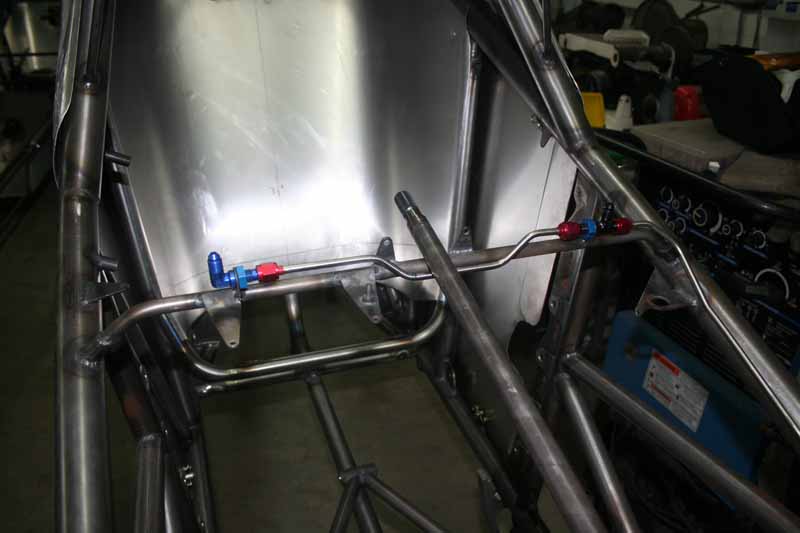

 IMG_6414_small Fire nozzles have been installed in the cockpit area.

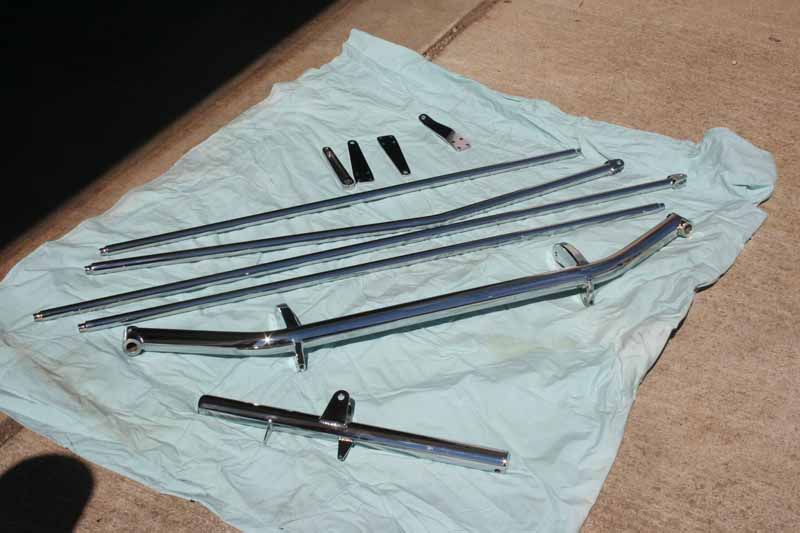

IMG_6466_small The chrome work is back from the chromer.

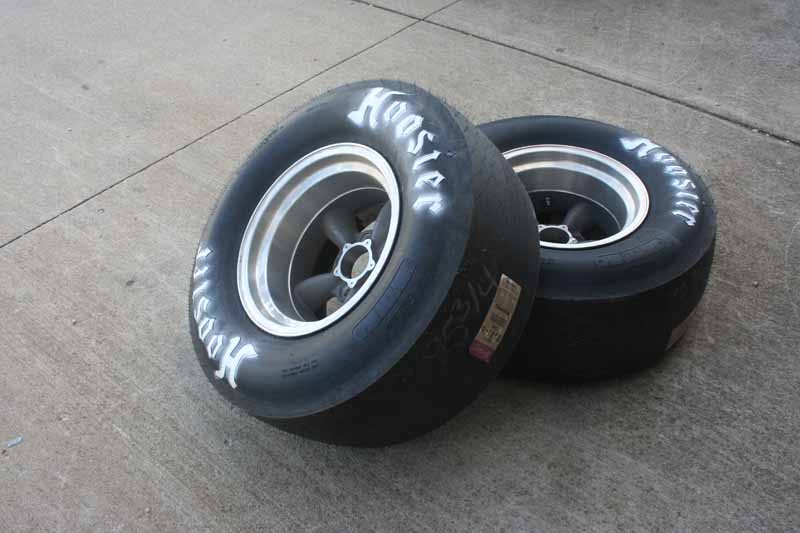

IMG_6468_small Tires have been mounted on the rims. Note the Hoosier tires from Indiana.

Next are updates on the body and chassis.

The Body and chassis has been shipped off to Bewley’s Garage, 220 Park Drive, Plainfield, Indiana, Carey Bewley is doing the paint work and his e-mail is careybewley@yahoo.com and phone number is (317) 372-2244.

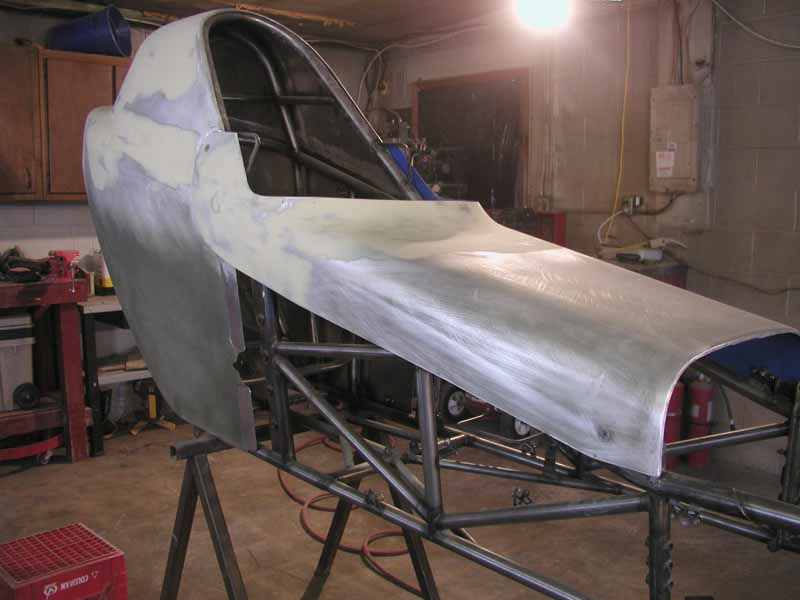

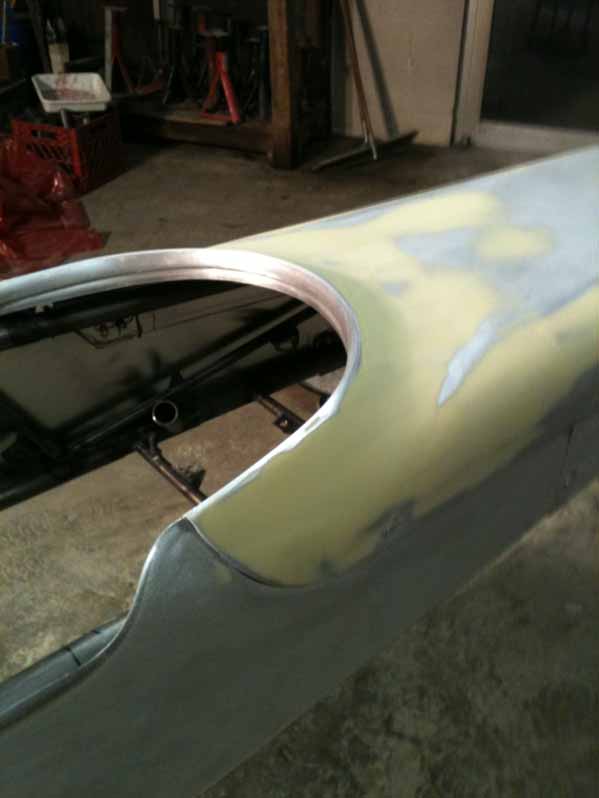

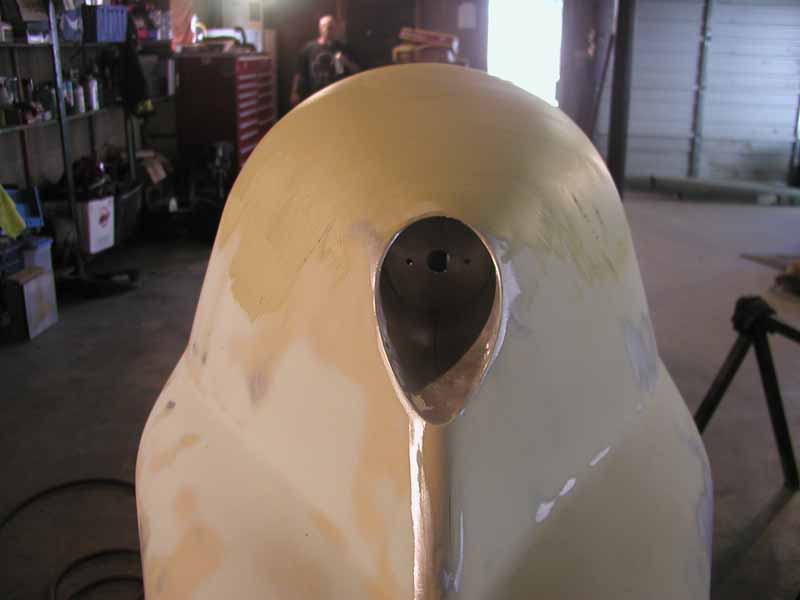

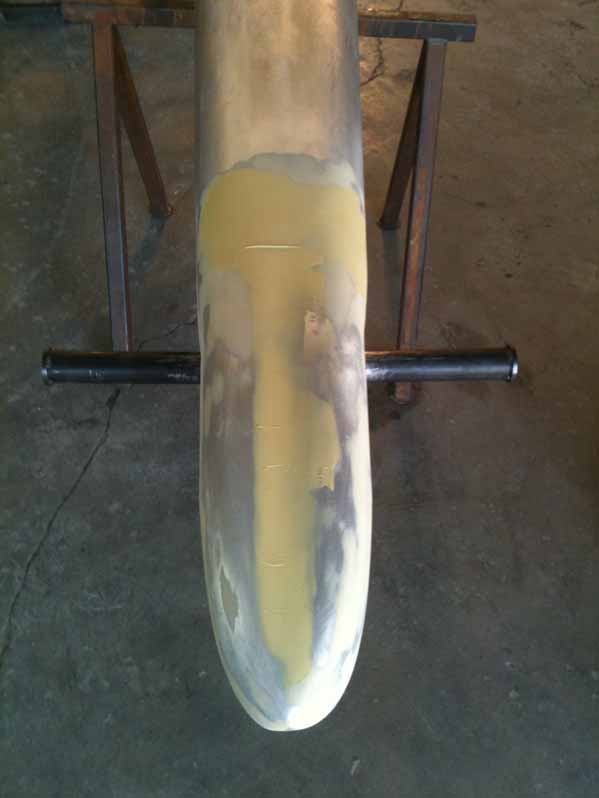

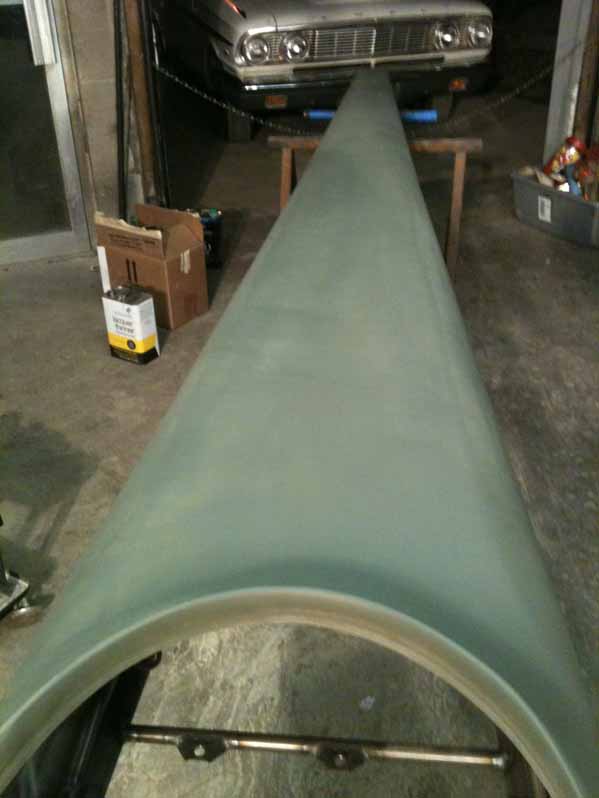

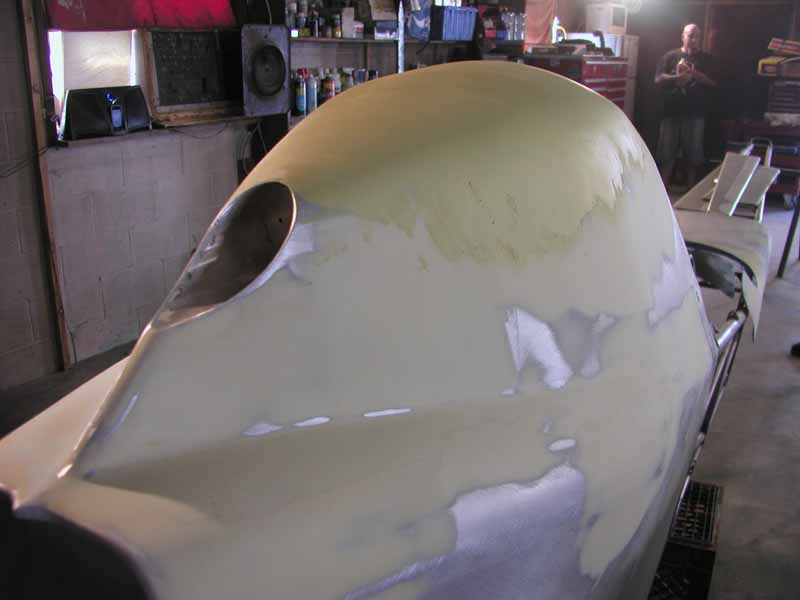

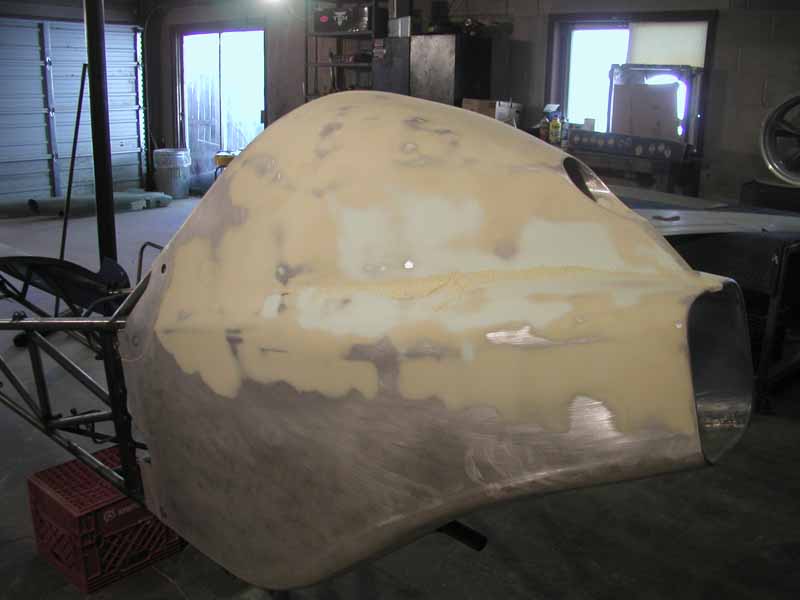

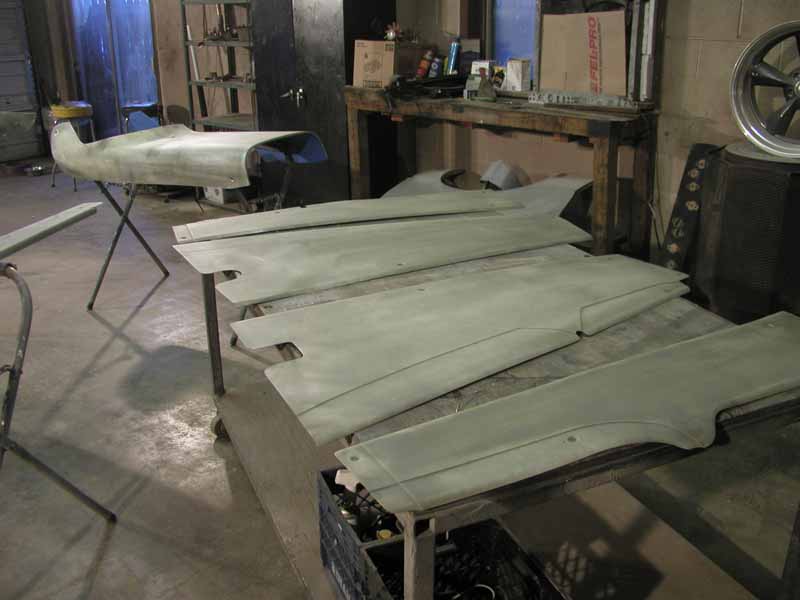

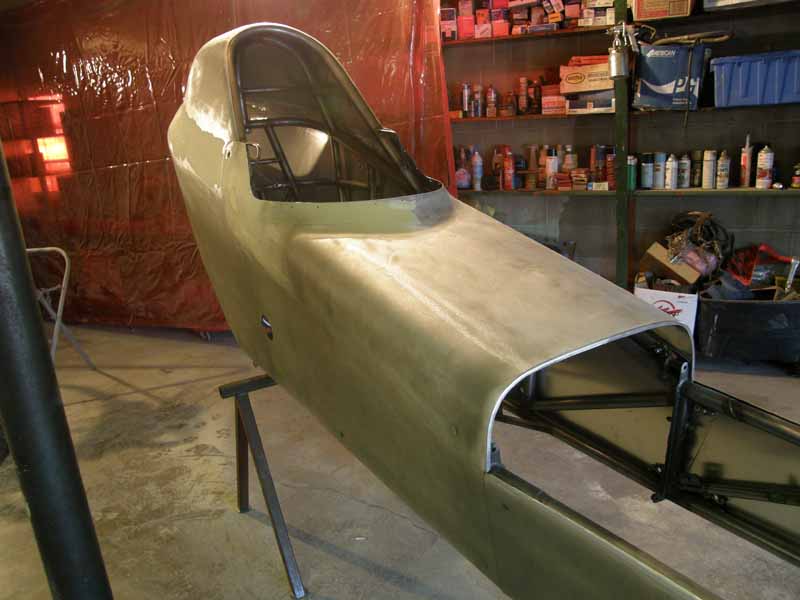

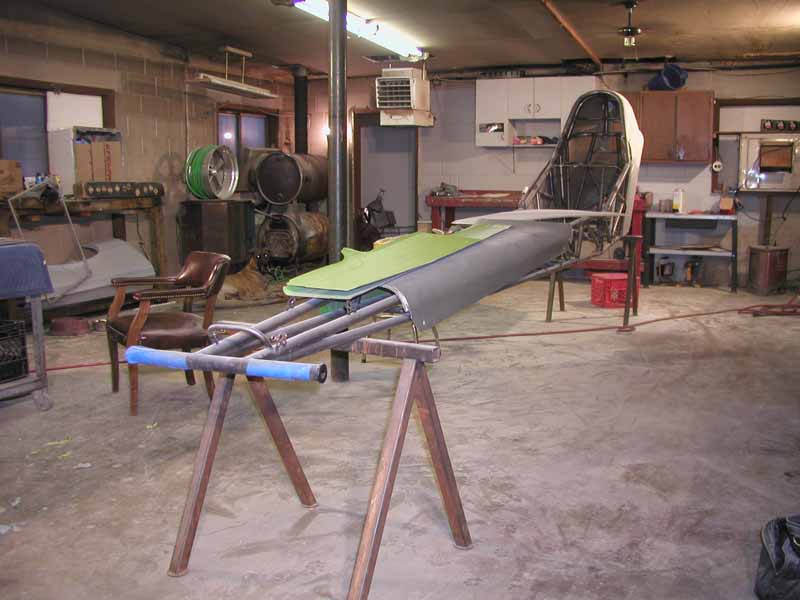

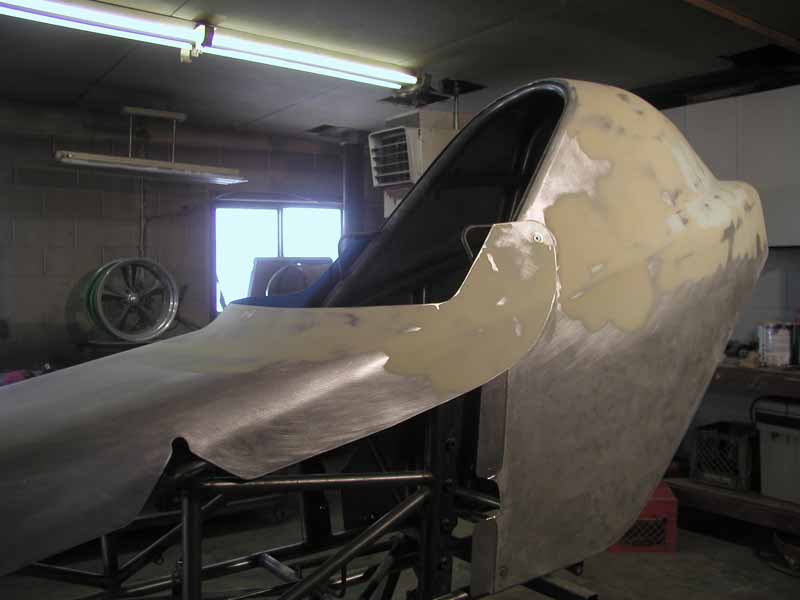

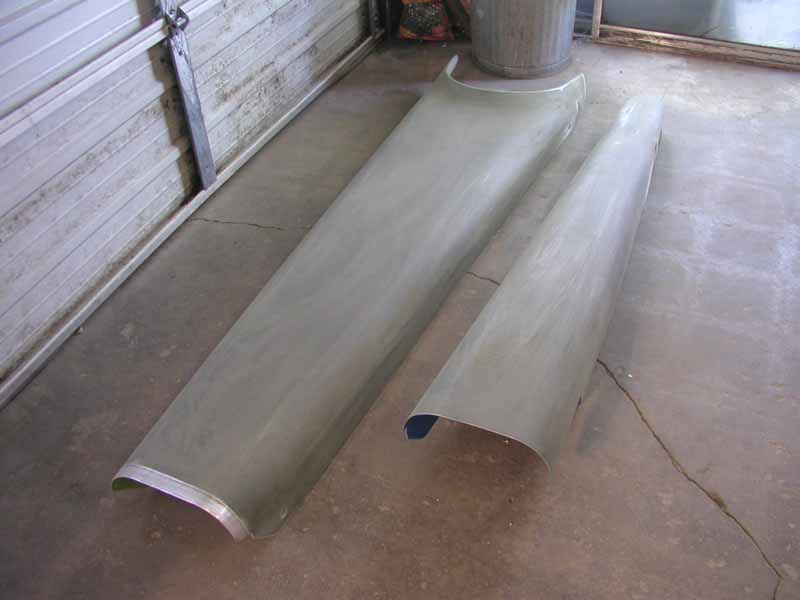

The entire body was sanded, then smoothed, guide coat applied and then block sanded.

P1010001_small  P1010004_small
P1010008_small1  P1010011_small
P1010013_small  P1010014_small
IMG_4146_small  IMG_4162_small
IMG_4172_small  P1010009_small1
P1010017_small  P8270021_small

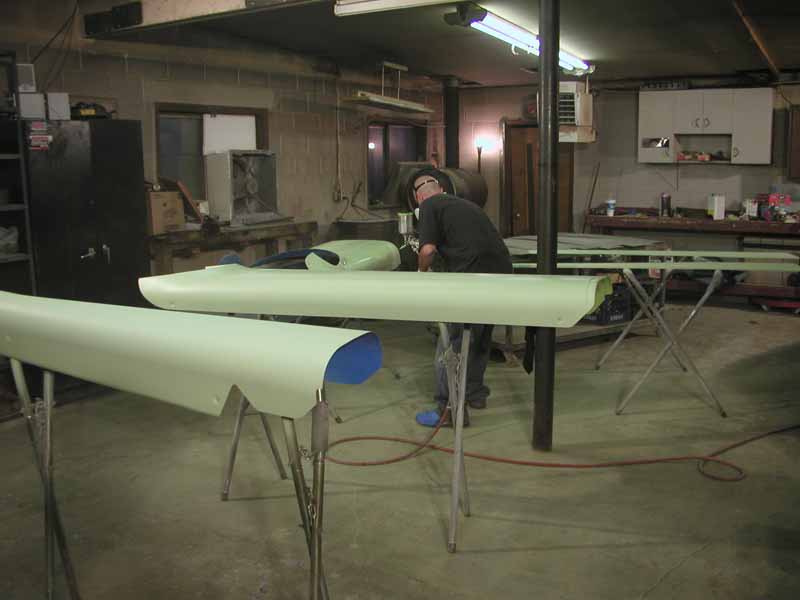

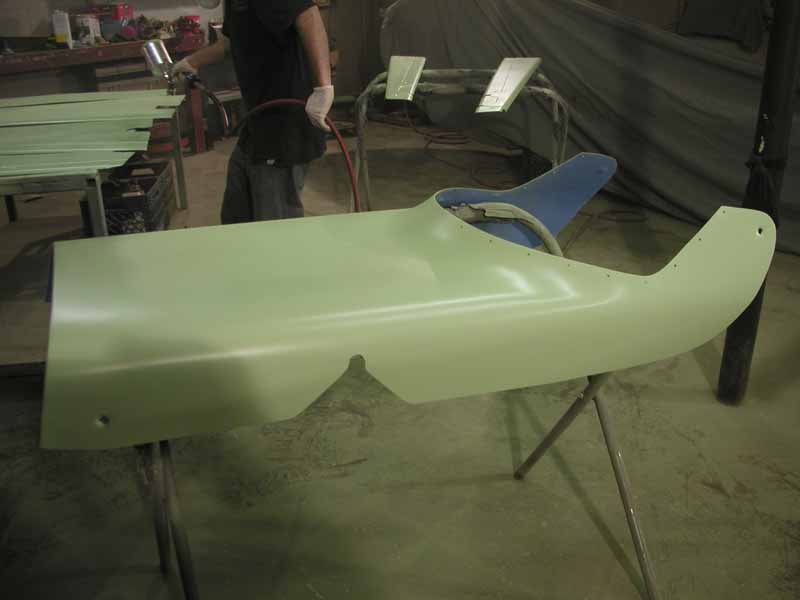

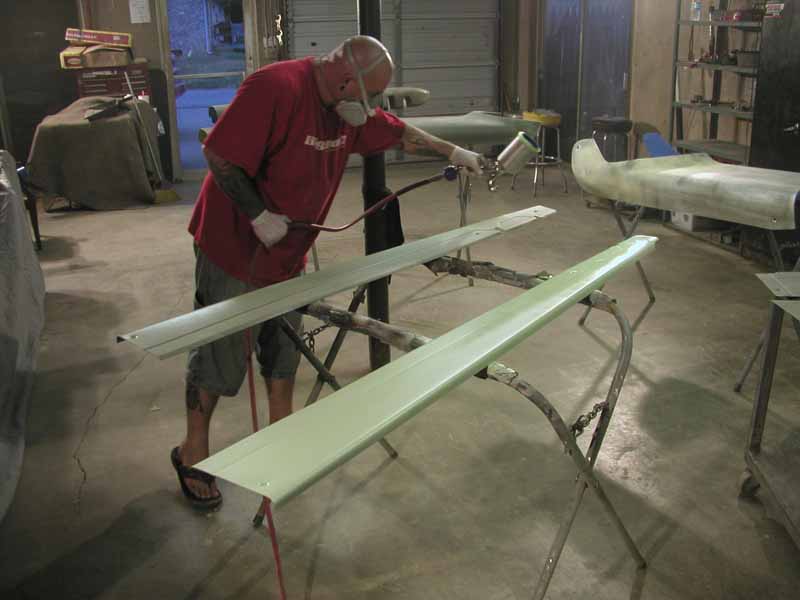

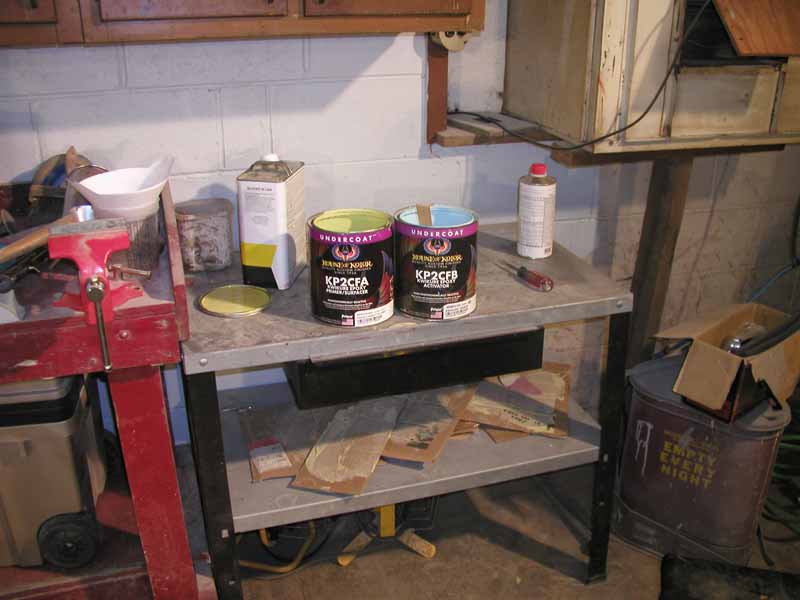

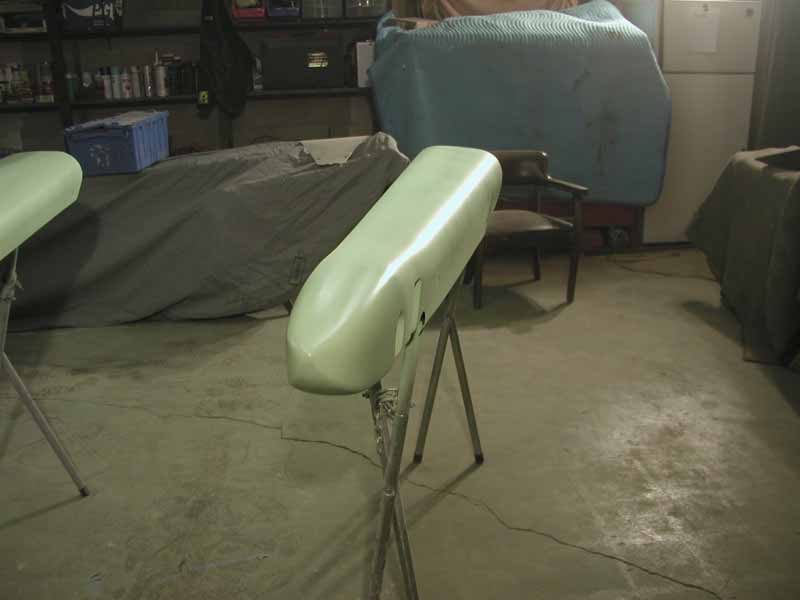

P1010020_small Now for the House of Kolor Epoxy Primer/Surfacer
P1010022_small  P1010023_small
 P1010025_small  P1010028_small
P1010029_small

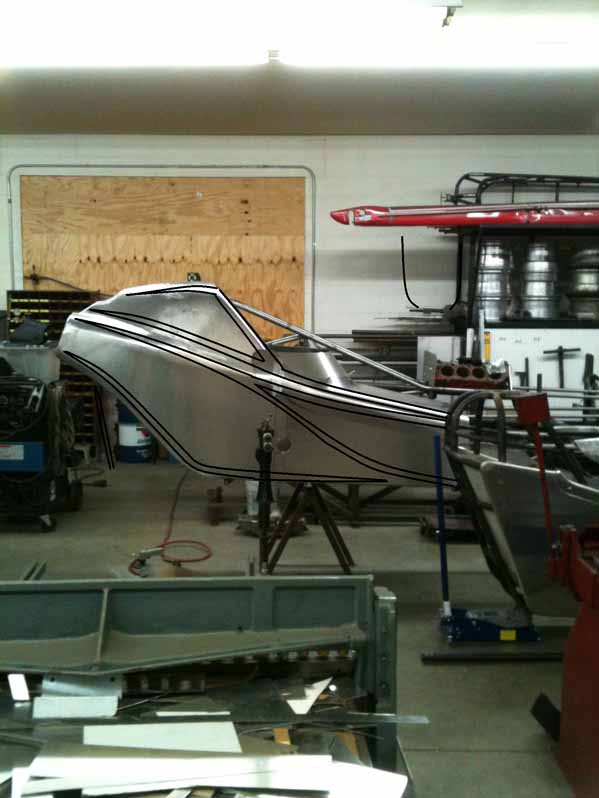

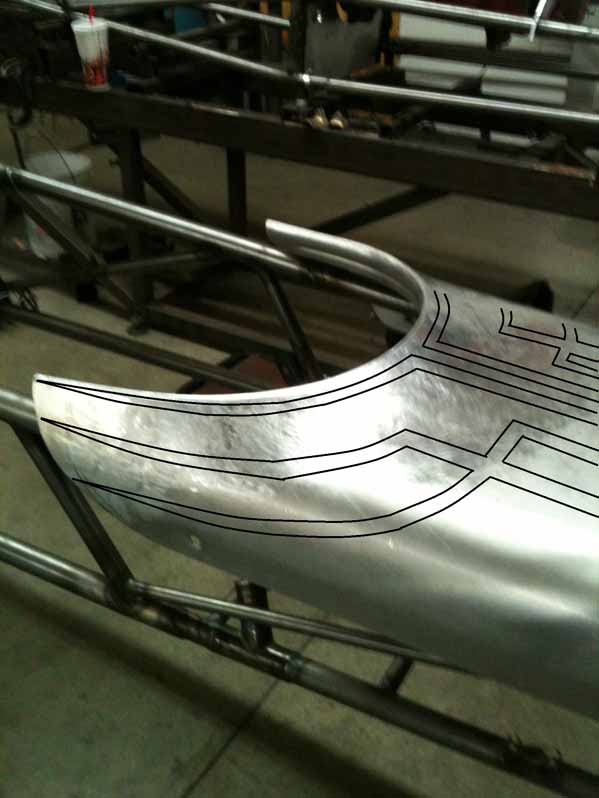

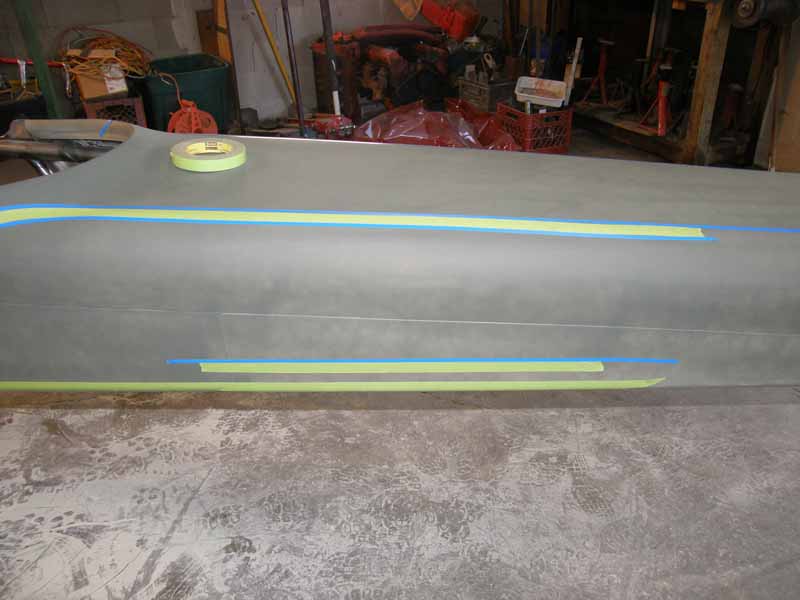

There have been several attempts at laying out graphics and we are getting close. I hope to see the finial layout this weekend.
P8270029_small ruff2_smallruff3_small
DSCN0185_small

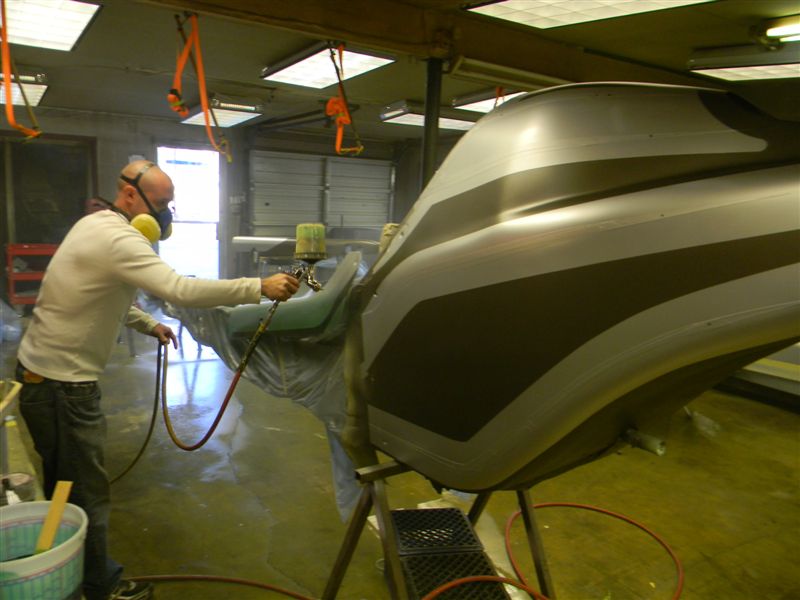

Here we see the base coats for the candy green to be applied later. The way the two different shades of green are obtained is the under coats are different.
DSCN0187_small

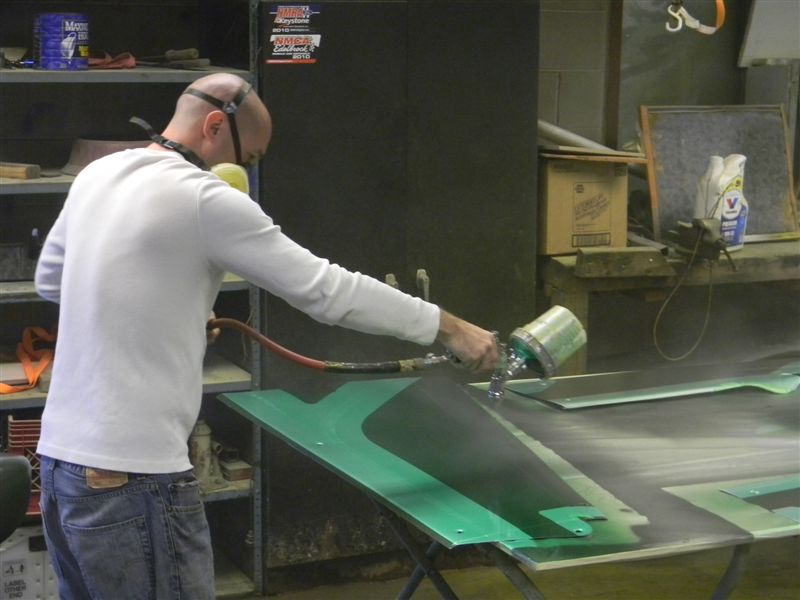

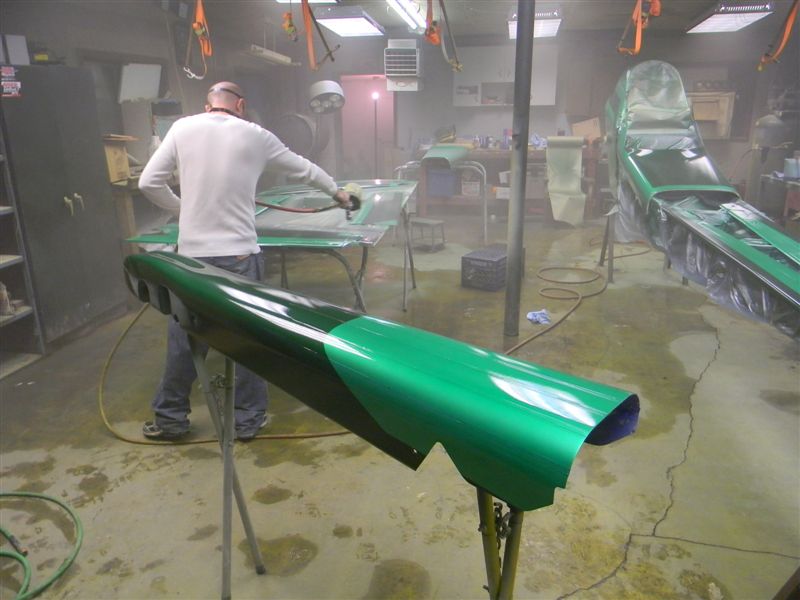

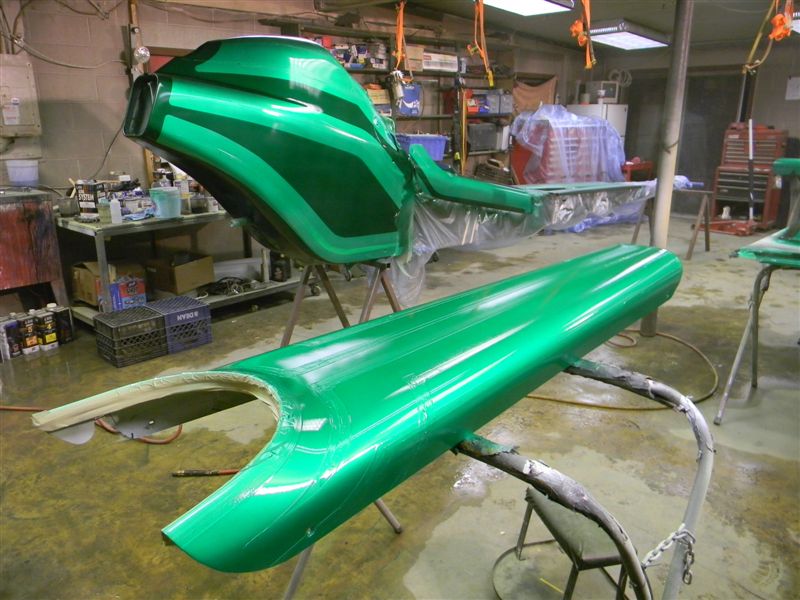

The candy green is going on, there will be five total coats of the candy green. Once that is done the tape covering the white strips is pulled and the pin striping and gold leaf begins. Once that is done three coats of clear.
DSCN0195_small  DSCN0204_small

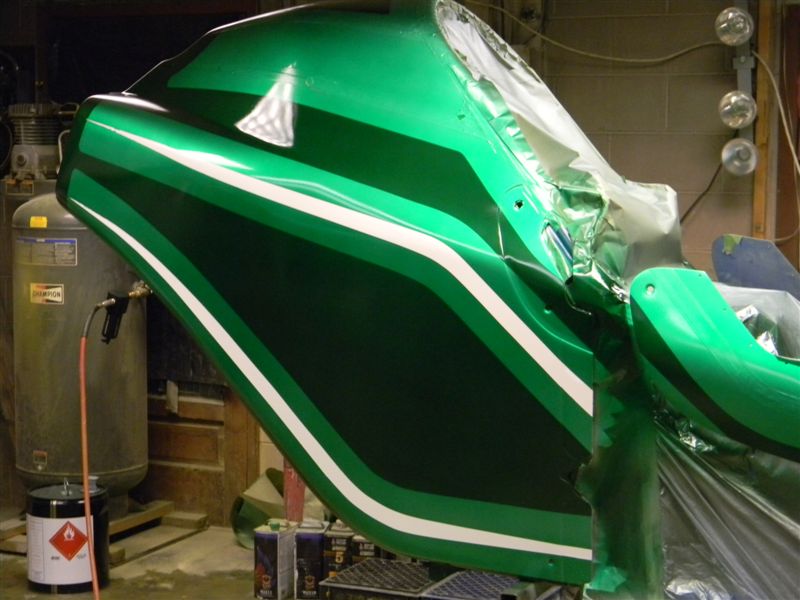

DSCN0206_small
This is only some of the tape pulled to revile some of the white strips.
DSCN0824_small Ok, it has made the trip home and is now in my garage. It now needs to be wired, plumbed, and started. LOTS of work to be done by February 01 for the show out in Indianapolis. It will be awhile before it looks this complete again.
