2010 Front Engine Dragster Week 2012 11 10

REMEMBER TO CLICK PICTURES FOR MORE DETAIL / LARGER PICTURE

I am combining the car nuts meetings of 11/3/2012 and 11/10/2012.  I will finally be caught up.

There will be not car nuts meeting for 11/17/2012.

I received yet another injector hat in the mail.  This one is a bug catcher that came with a bunch of other parts which we will be able to use.  Packing was not great and the items were not in as good condition as I had hoped.  Fee-Bay is always a crap shoot.

DSC_0369_small                                           DSC_0372_small

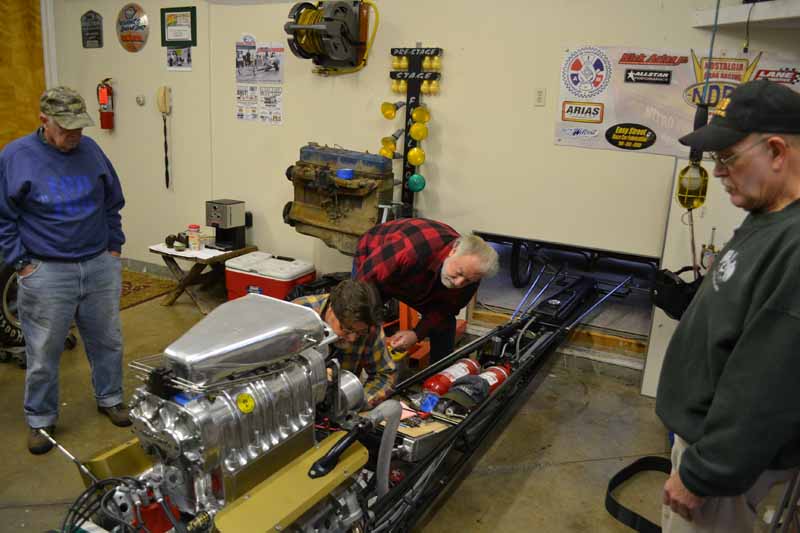

DSC_0375_smallWe had a number of contributors through out these to gatherings

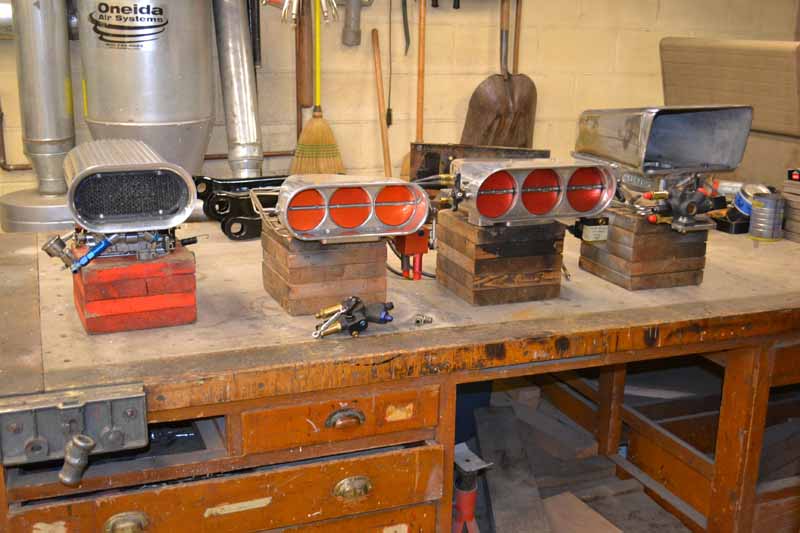

DSC_0386_smallWith the addition of the bug catcher the workbench is being taken over by injector hats and carburetor scoops.

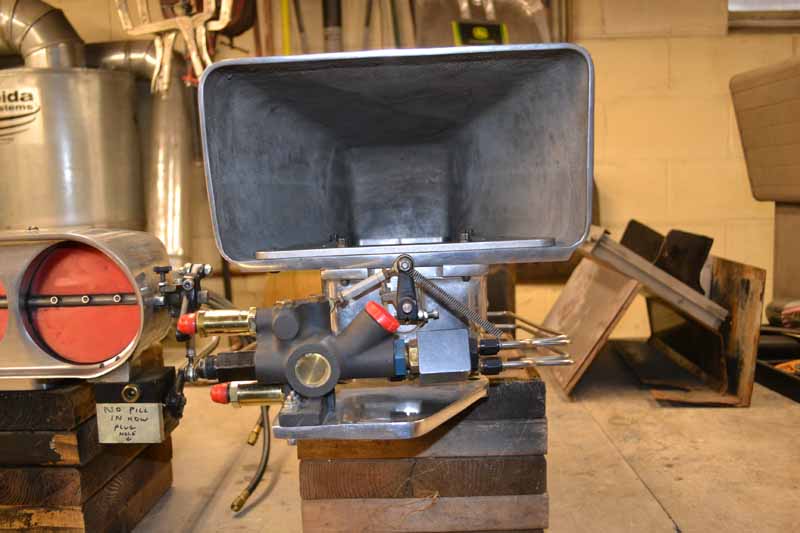

TDSC_0390_smallhe Enderle BarnDoor has now been sold

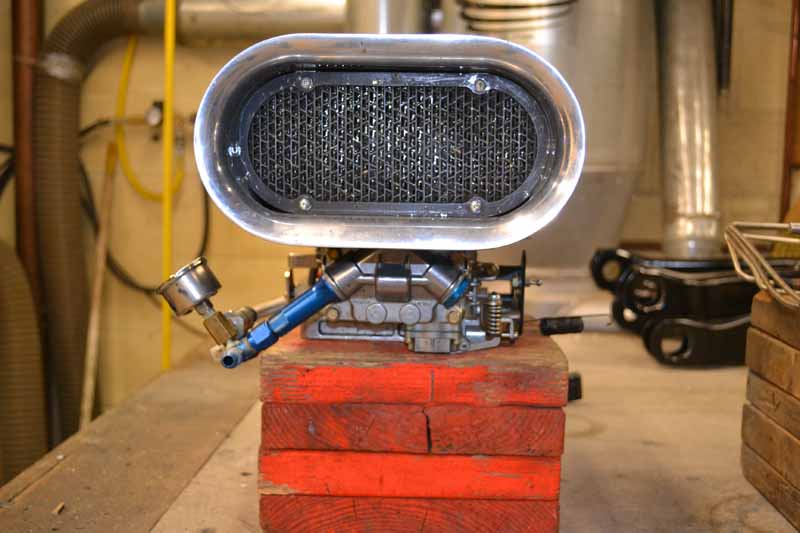

DSC_0387_smalland the bug catcher will be put up for sale. The alcohol carburetor will be held on to as plan “B”

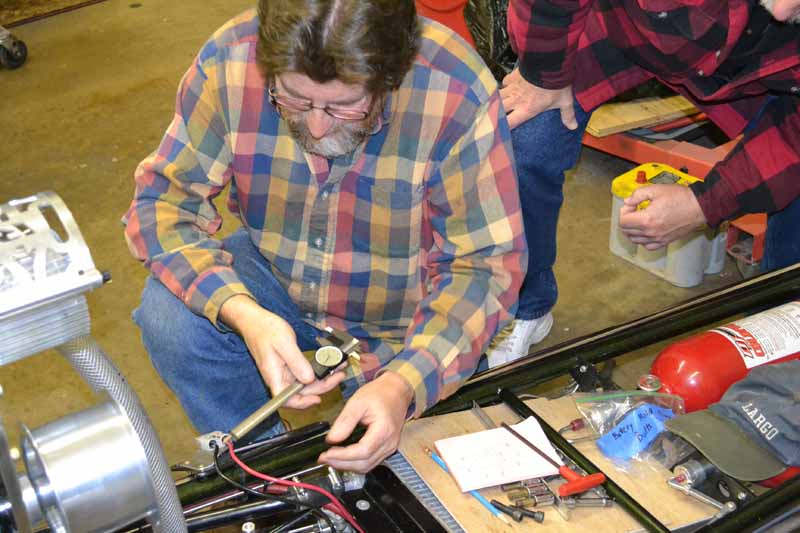

DSC_0377_smallBetween Ray and Steve we were able to come up with plan for the spacers needed for both the bottom pulley and the idler pulley

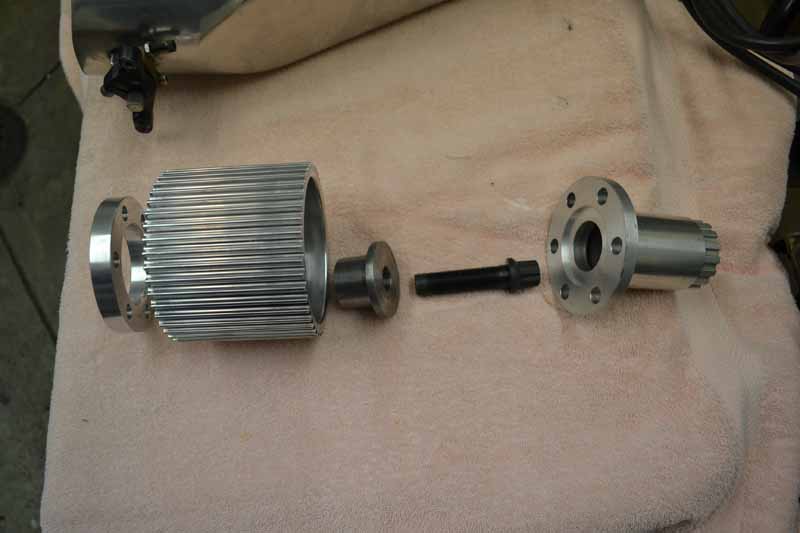

DSC_0424_smallThe bottom pulley was fairly interesting as a number of things had to happen

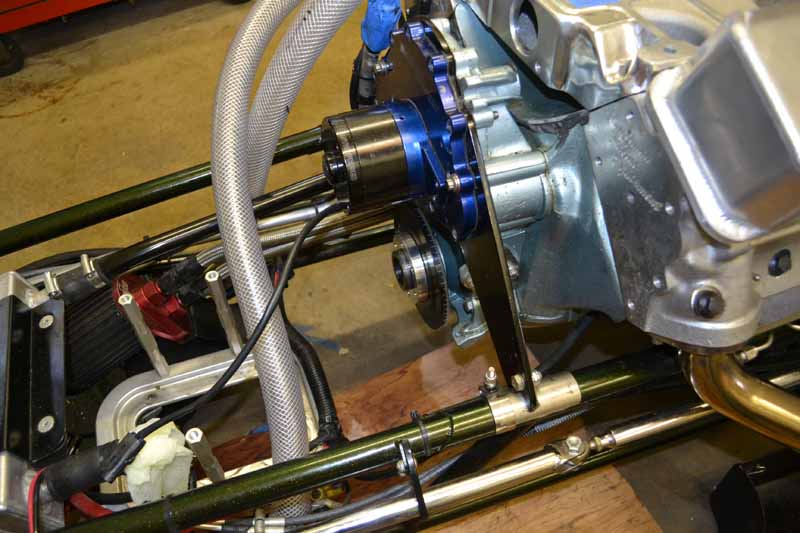

TDSC_0423_smallhe pulley had to be moved ½ inch out from the hub to get the belt to ride in the center of the pulley

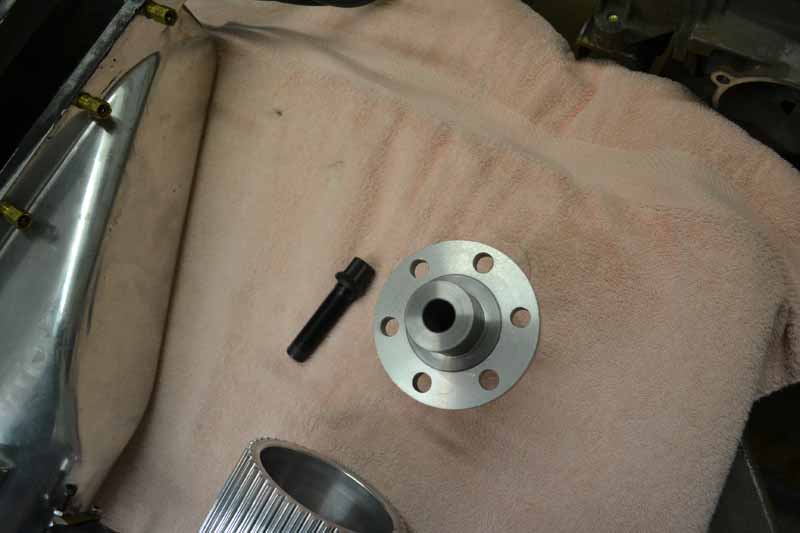

By doing this we lost the register for the fuel pump drive, also with the new crank hub the stock retaining washer was to small in diameter to reach the outside diameter of the new crank hub. So Ray machined a new retaining washer that had the outside dimension of the crank hub, The washer was stepped so that it would fit inside the crank hub.

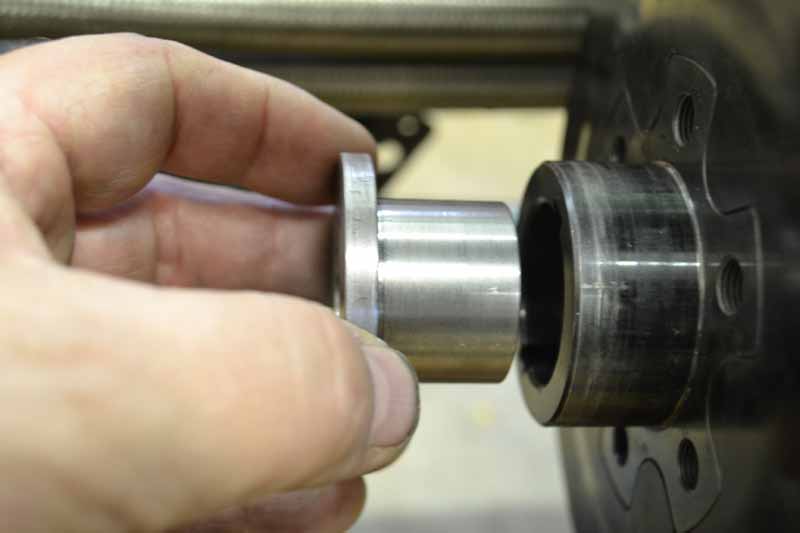

DSC_0447_small                                          DSC_0452_small

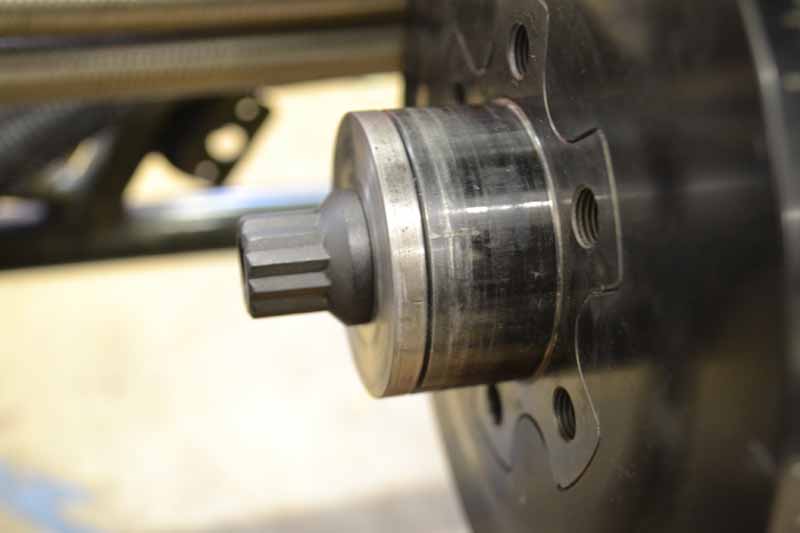

With the outside dimension the same as the hub and sitting proud of the hub this became the register for the fuel pump drive.

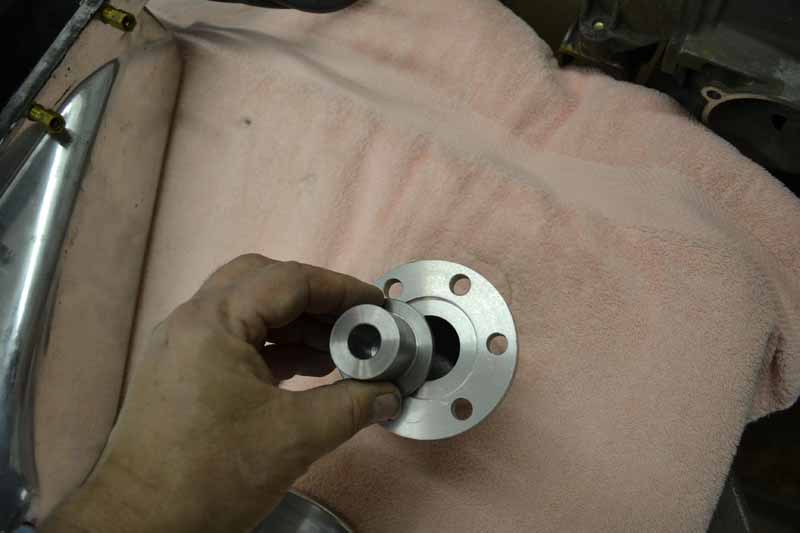

DSC_0427_small                                           DSC_0428_small

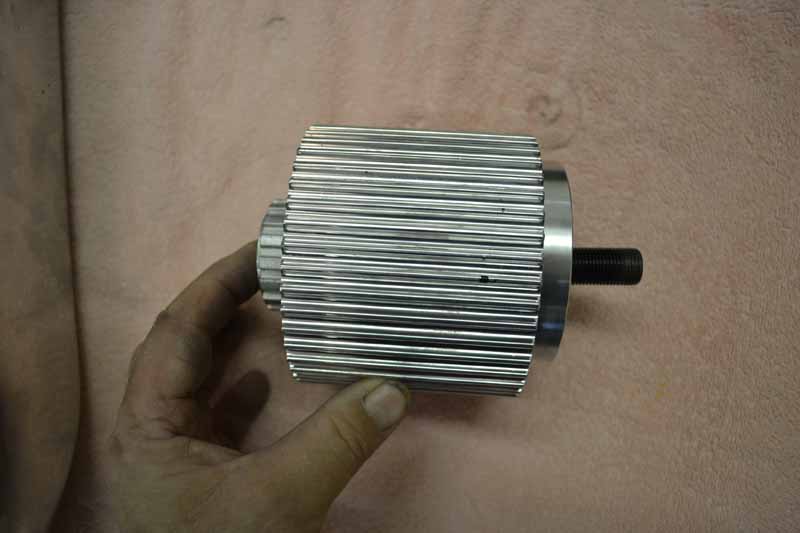

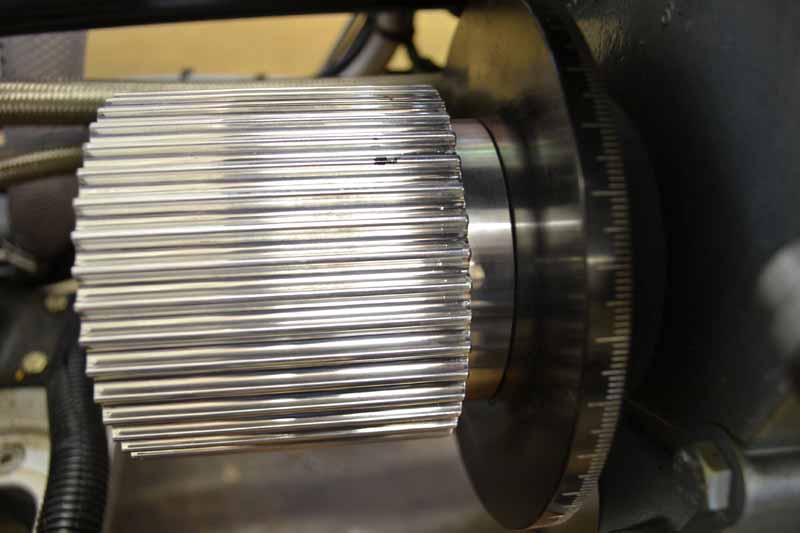

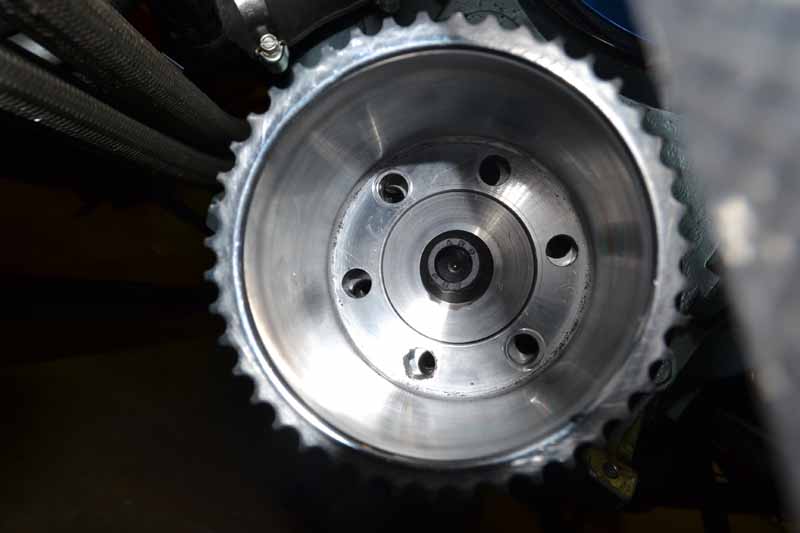

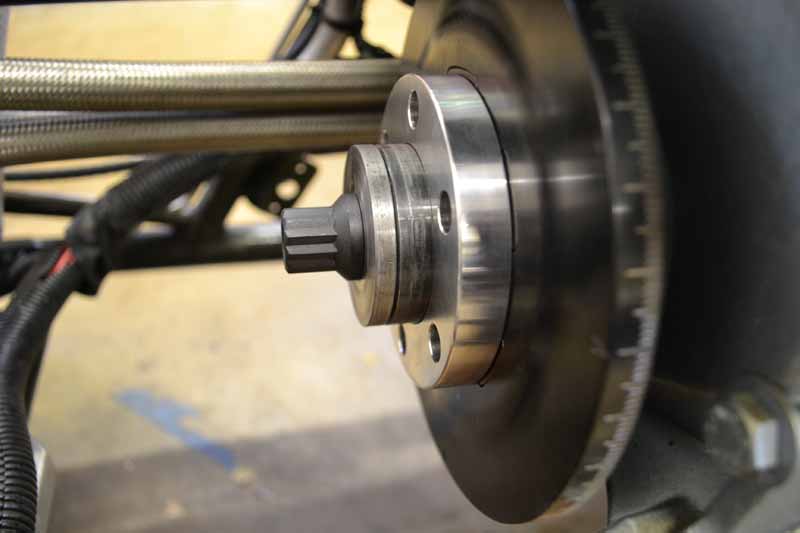

It goes together like this
DSC_0431_small                                           DSC_0452_small
DSC_0455_small                                           DSC_0456_small
DSC_0458_small                                           DSC_0497_small

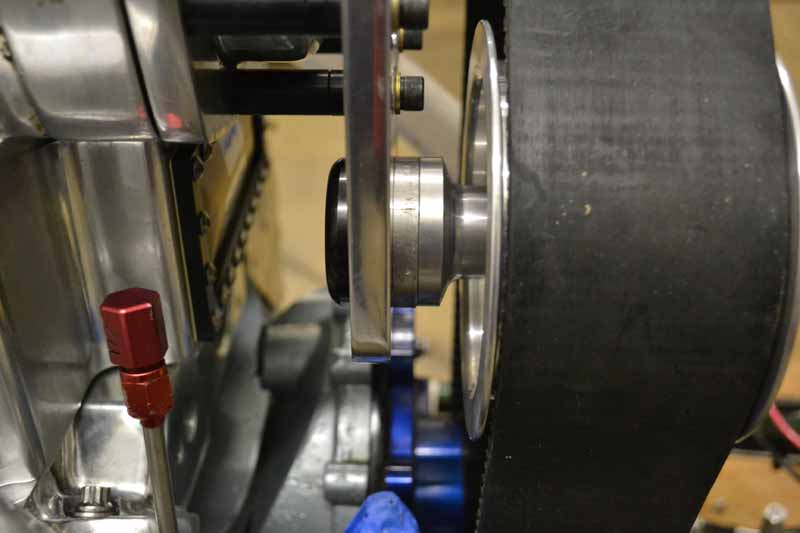

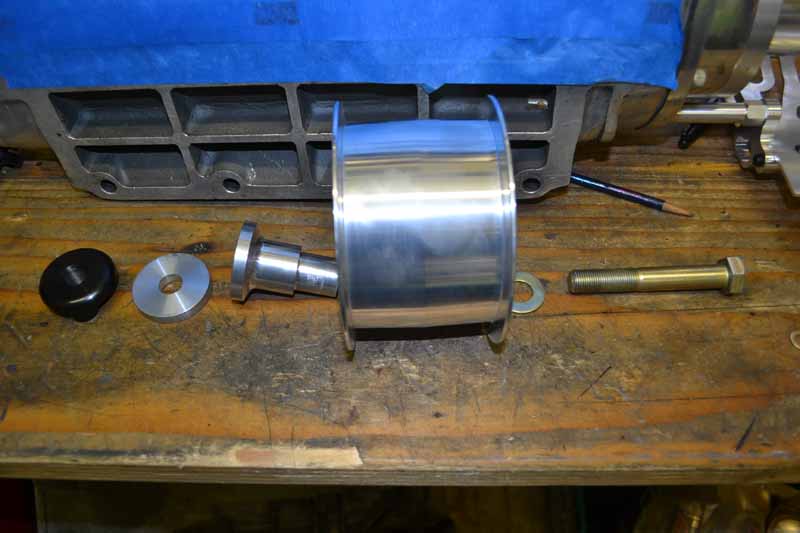

The Idler pulley was a lot easier, all it required was a 5/16 spacer to get the belt into the correct position
DSC_0439_small                                          DSC_0501_small

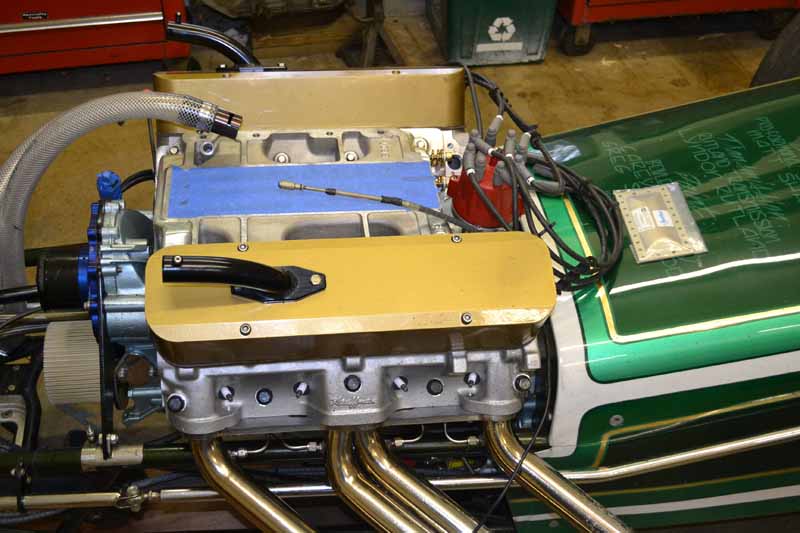

DSC_0400_smallI have been told a number of times that my gold colored valve covers are not everyone’s favorite, I happen to think that they go nicely with the gold leaf stripping on the body of the dragster.

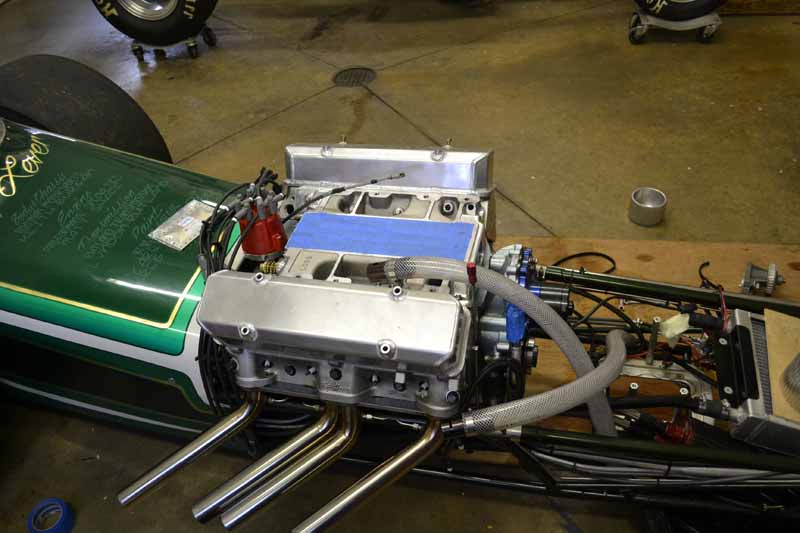

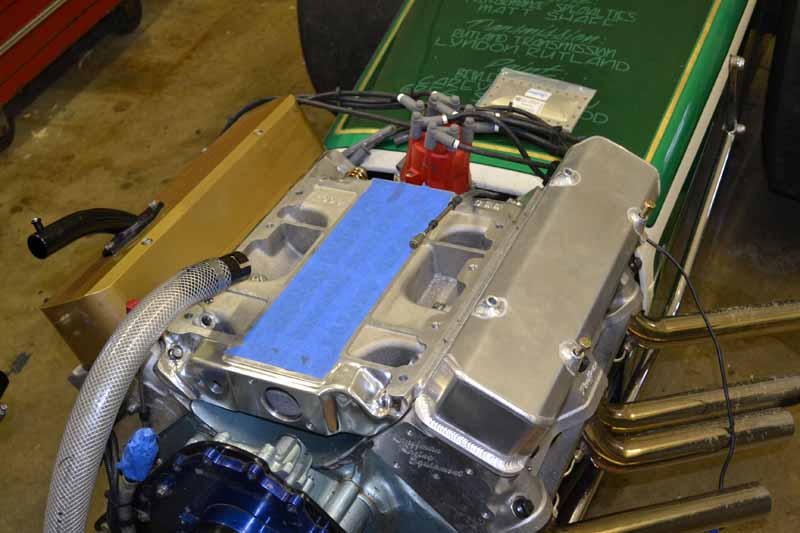

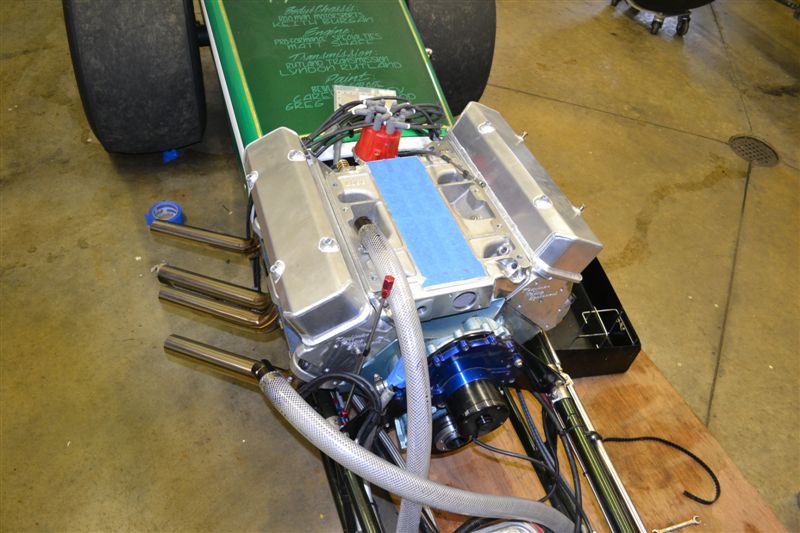

DSC_0402_smallAn informal vote was taken amongst the car nuts and it has been decided to go to a set of fabricated aluminum valve covers, what do you think?
DSC_0410_small                                          DSC_0411_small
DSC_0474_smallOil was added to the gear housing on the blower and the snout bolted into place, Jack did the honors.

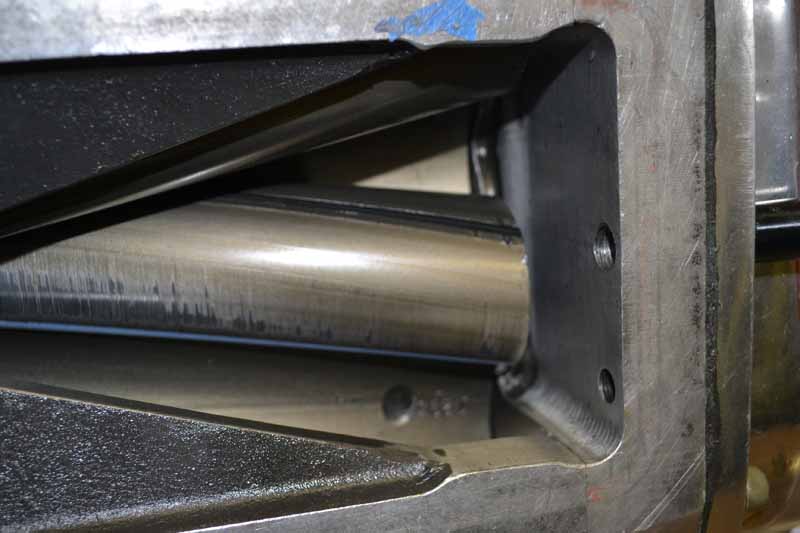

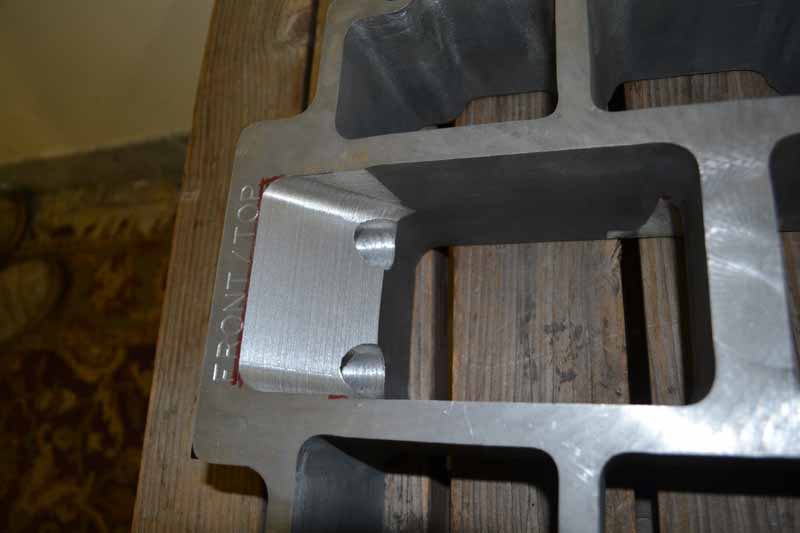

The four inch spacer has been machined in three areas, material was removed from the front top of the spacer to acuminate the retro outlet of the blower (A retro blower has it’s outlet further forward than a standard blower which is supposed to increase the efficiency of the blower).
DSC_0417_small                                          DSC_0418_small

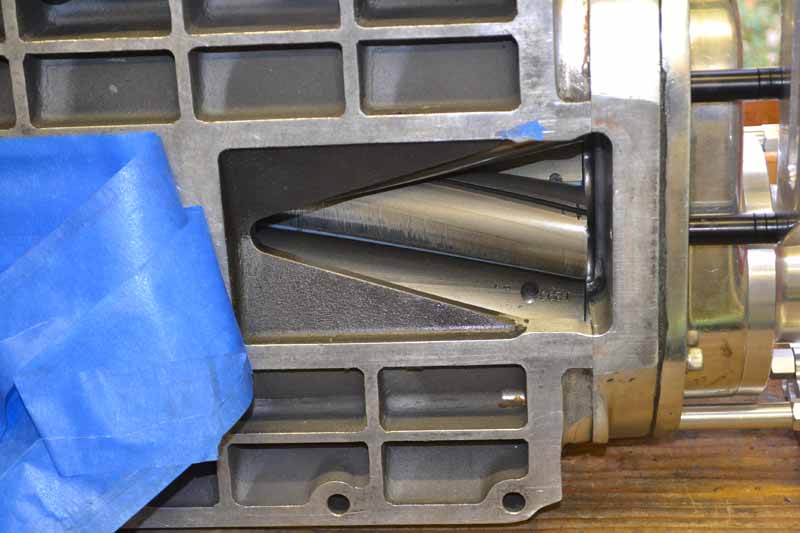

DSC_0443_small                                          DSC_0444_small

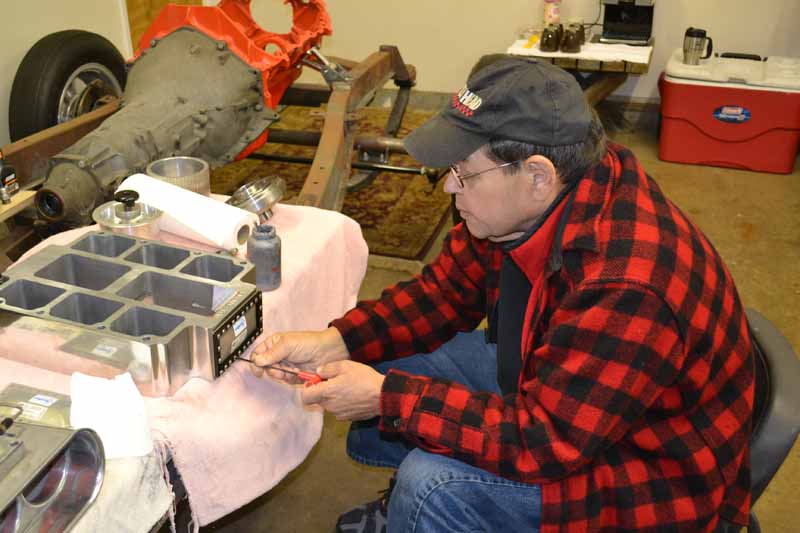

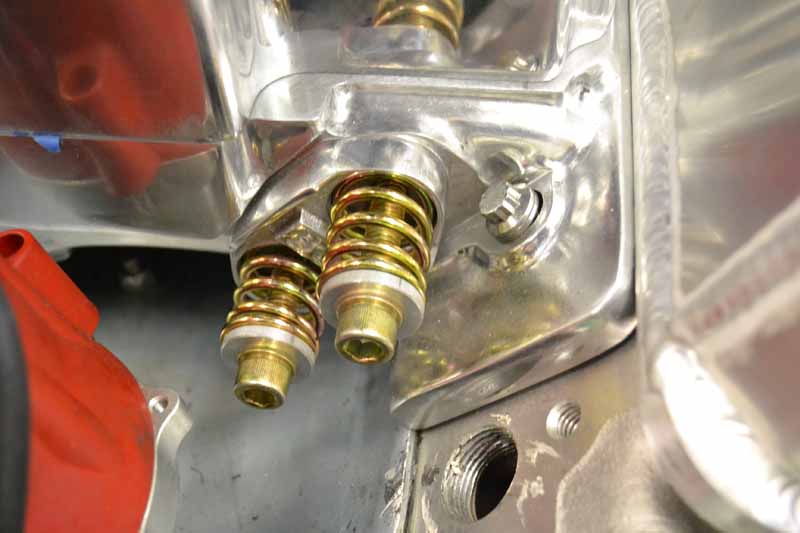

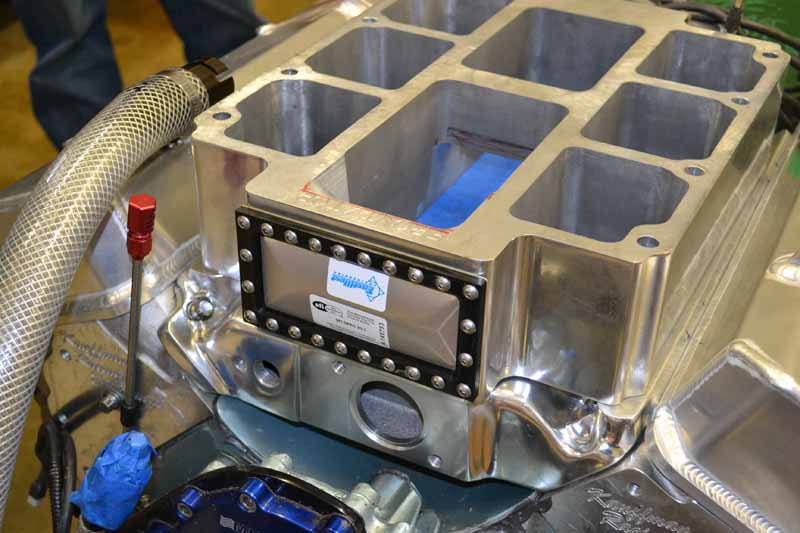

DSC_0492_smallThe front outside was machined to accept a burst panel frame. The current BDS manifold has a pop off valve at the rear which is not acceptable by either NHRA or IHRA. Lenny installed the panel

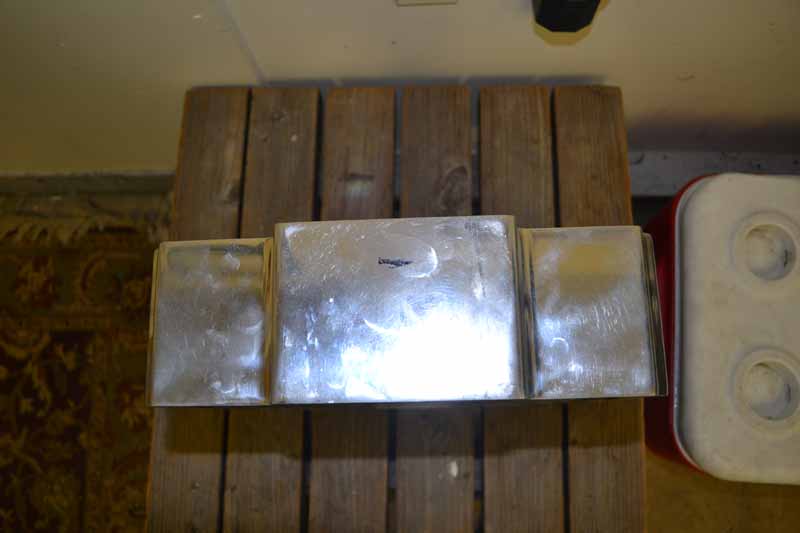

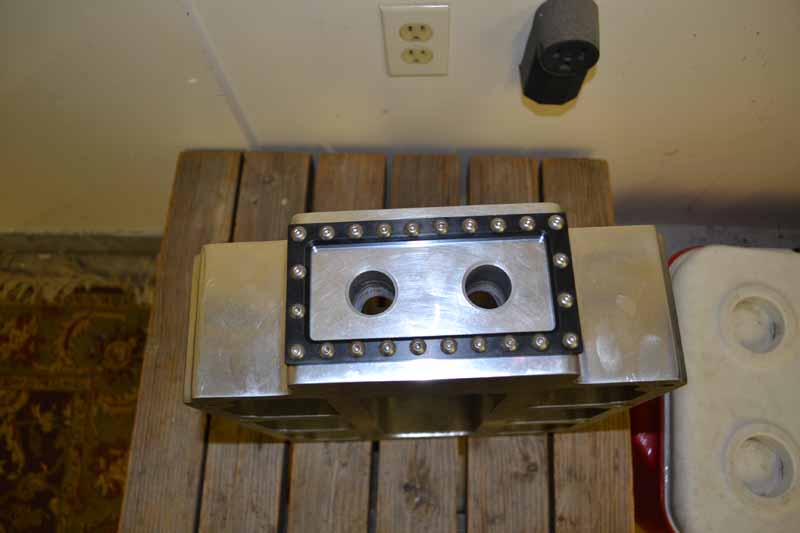

DSC_0420_small                                          DSC_0419_small
DSC_0466_small                                          DSC_0468_small

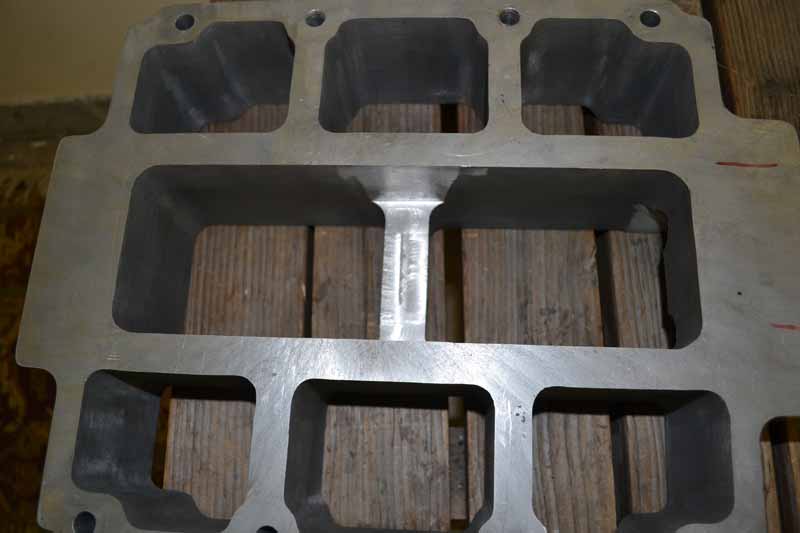

DSC_0421_smallThe bottom of the center rib was machined out to allow for better flow inside the manifold from front to rear

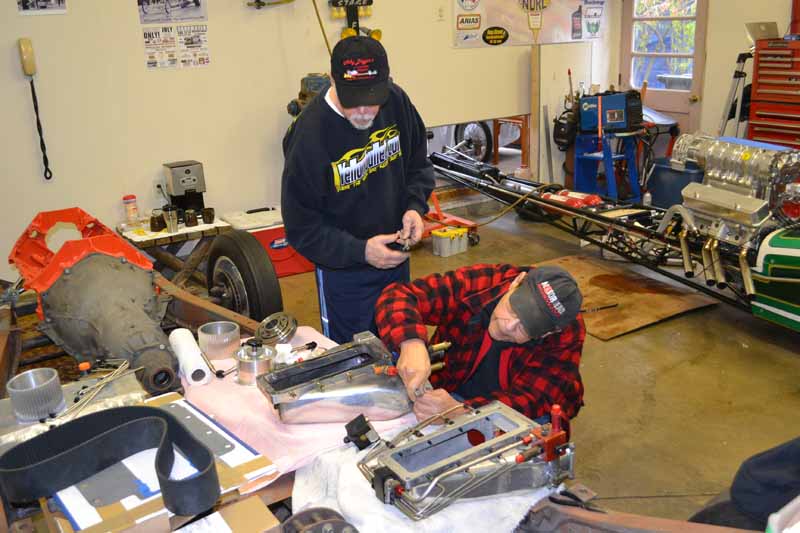

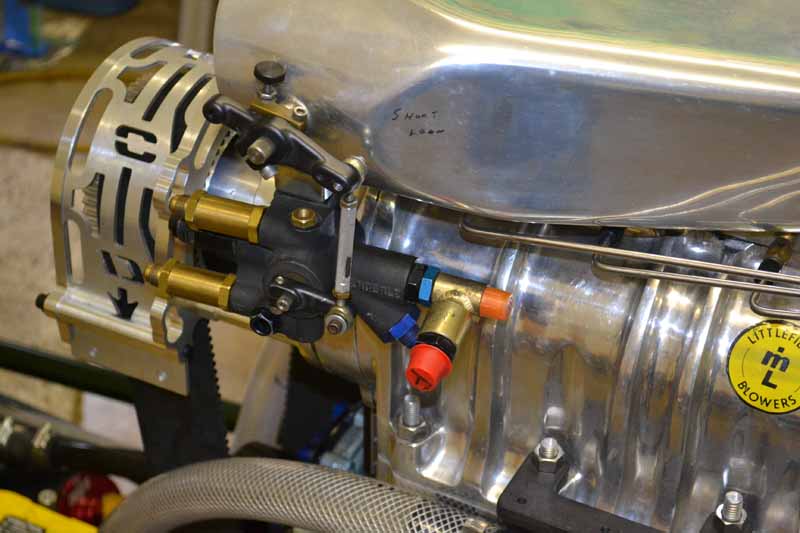

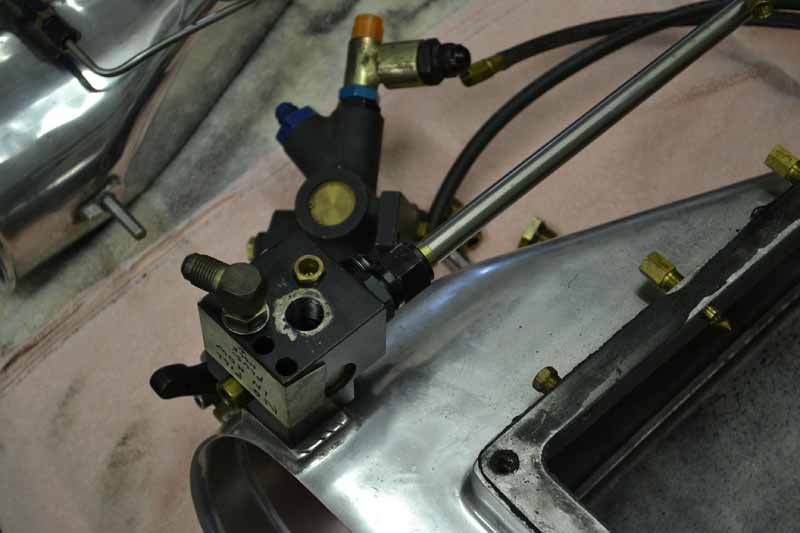

DSC_0432_smallIn the vein of reasoning that nothing can remain untouched the Birdcatcher injector hat will not remain untouched. The barrel valve that was on it will be switched to a “K” valve, by Jack and Lenny. (Please no e-mails about the alignment of the “K” valve lever to the shutter lever on the injector hat)
DSC_0478_small                                           DSC_0487_small

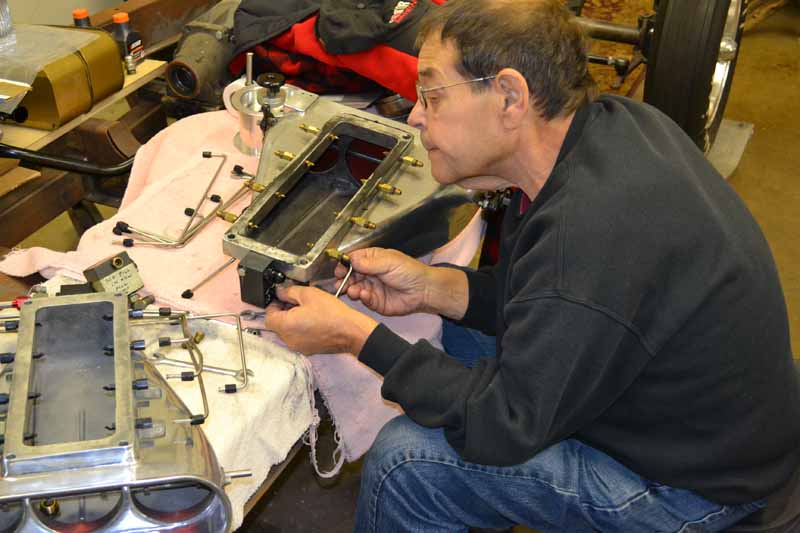

The hoses that were on the birdcatcher have been removed and new hard lines installed

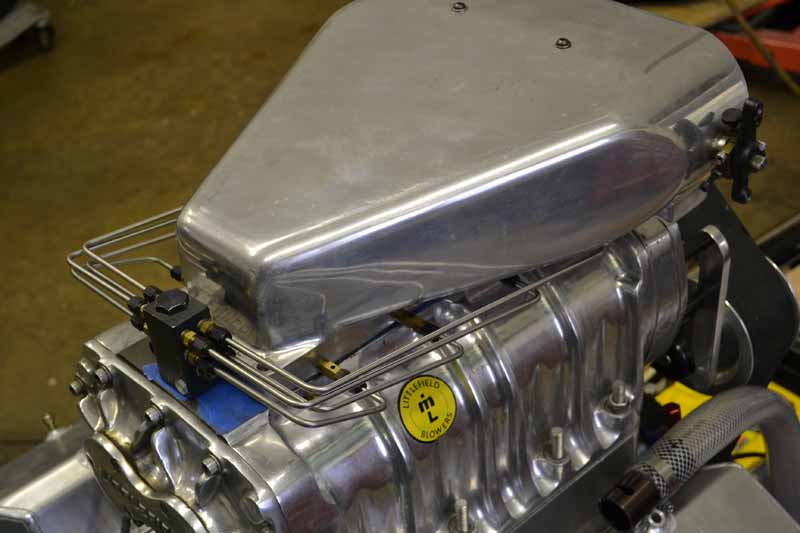

DSC_0482_small                                          DSC_0484_small

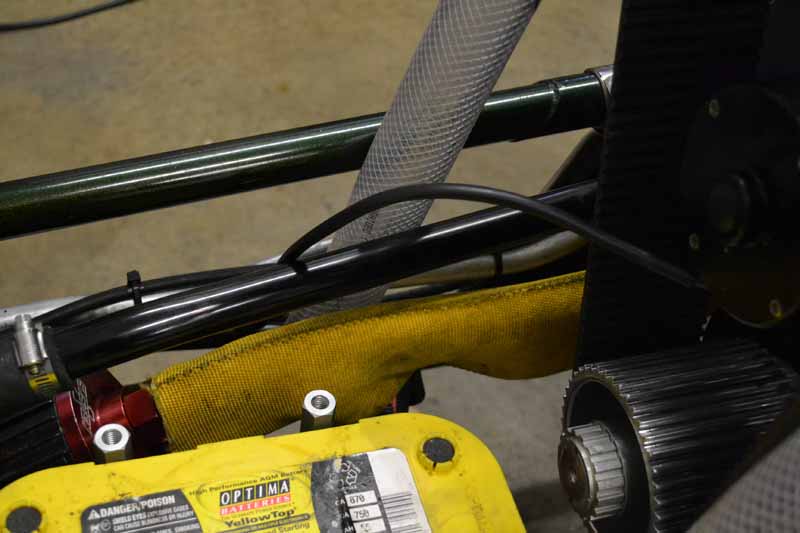

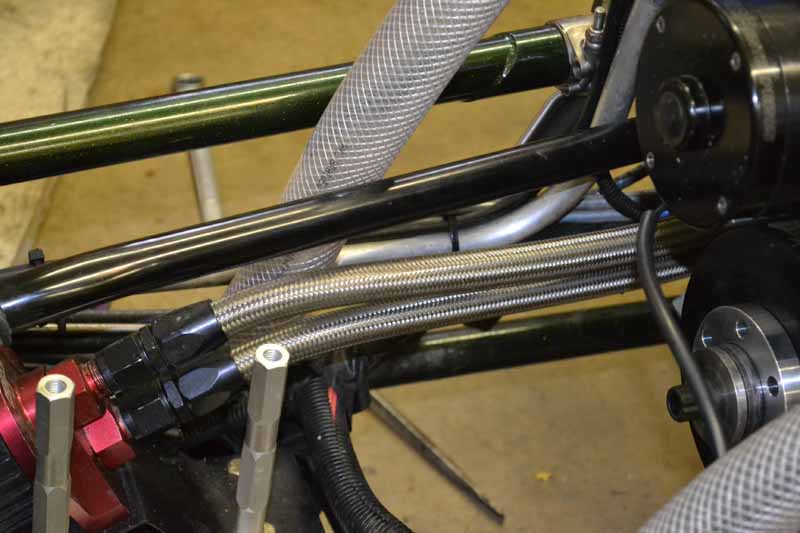

The oil filter lines have been “protected”
DSC_0464_small                                          DSC_0495_small

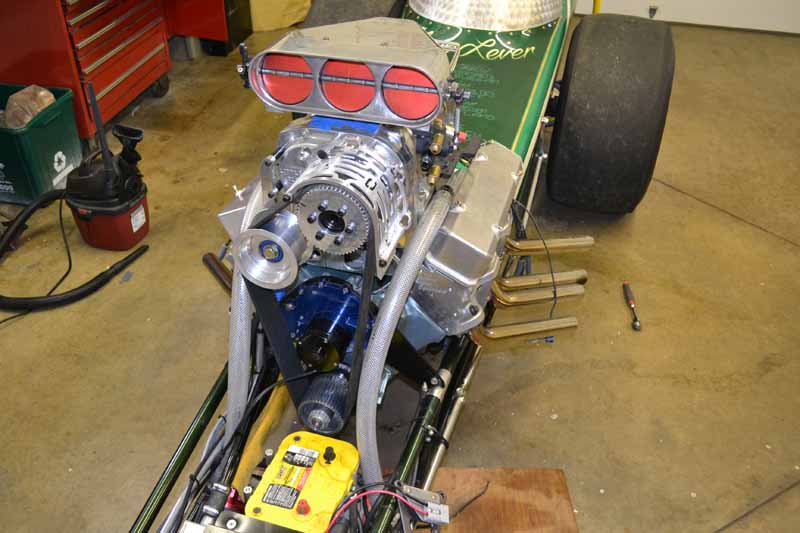

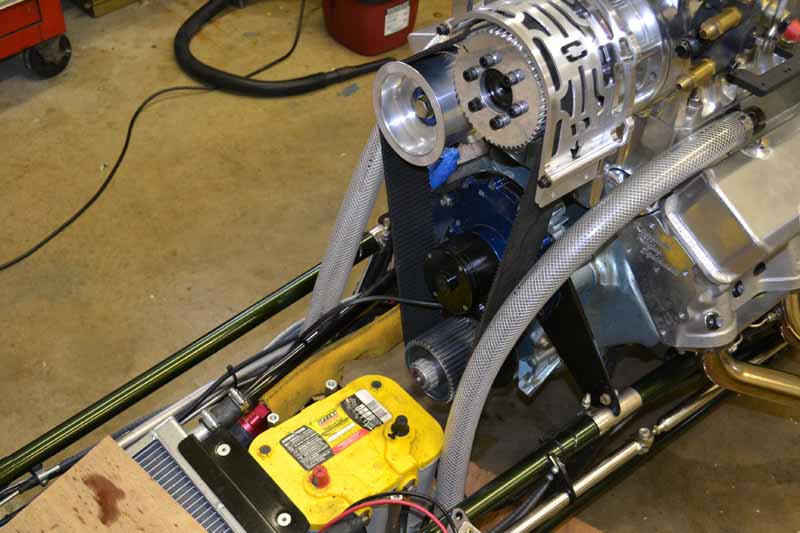

So here is the final fitment check
DSC_0488_small                                          DSC_0490_small
The valve covers do not fit right and will have to be modified, I wish the belt was centered more on the upper pulley
Plans are now moving forward to the mounting of the pump. The pump will be remote mounted and driven by a belt from the bottom pulley. This pump came with the stuff from Fee-Bay. It is a Hillborn 150A-0 pump which turns out to be way too small for this application. The remote mount however appears that it will work out with some modifications.

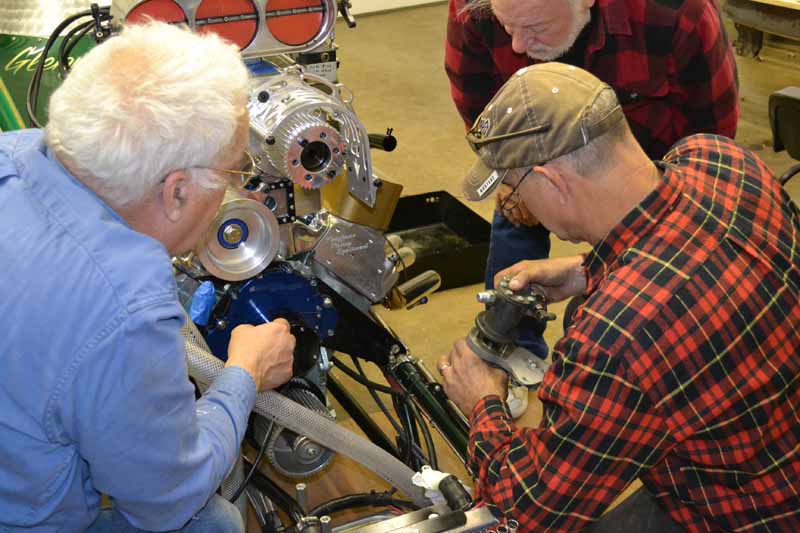

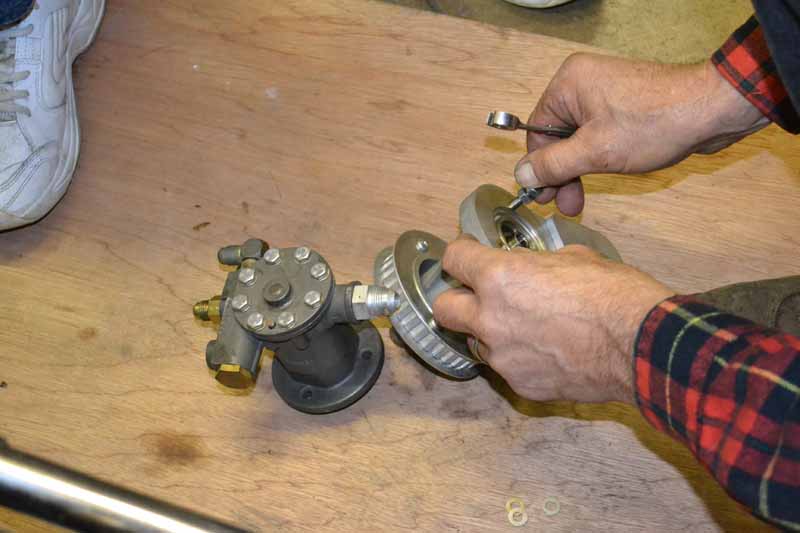

DSC_0379_small                                          DSC_0381_small

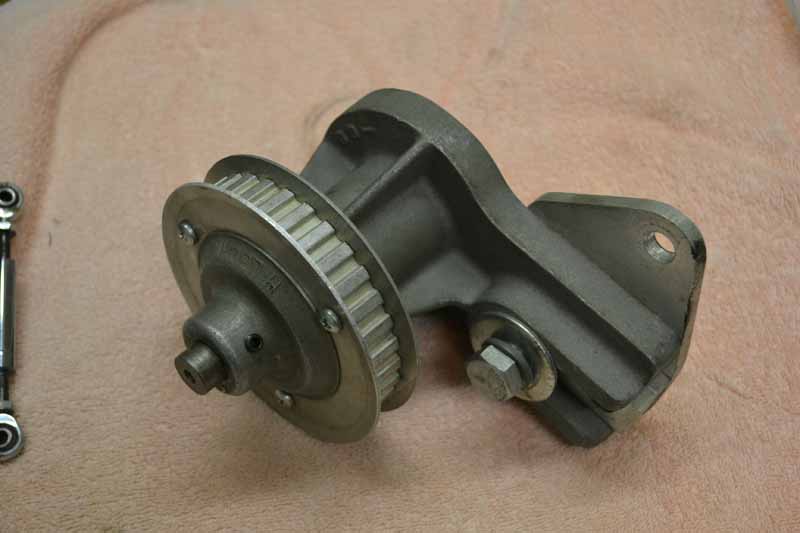

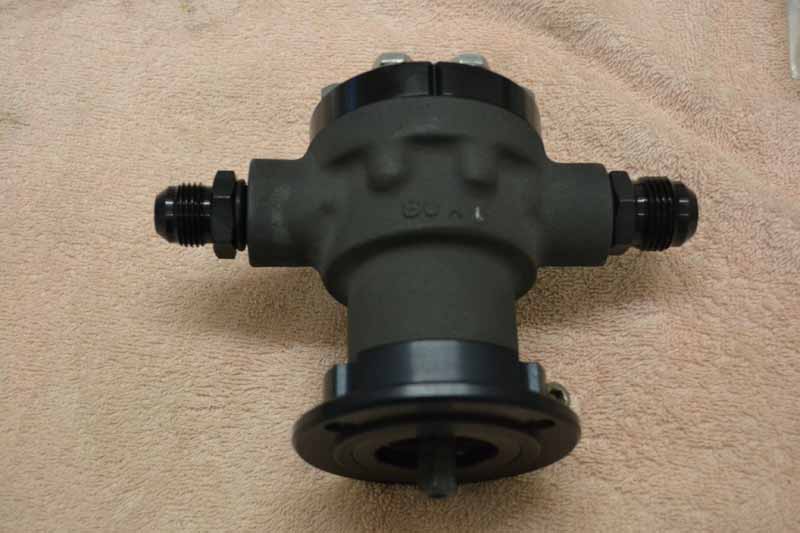

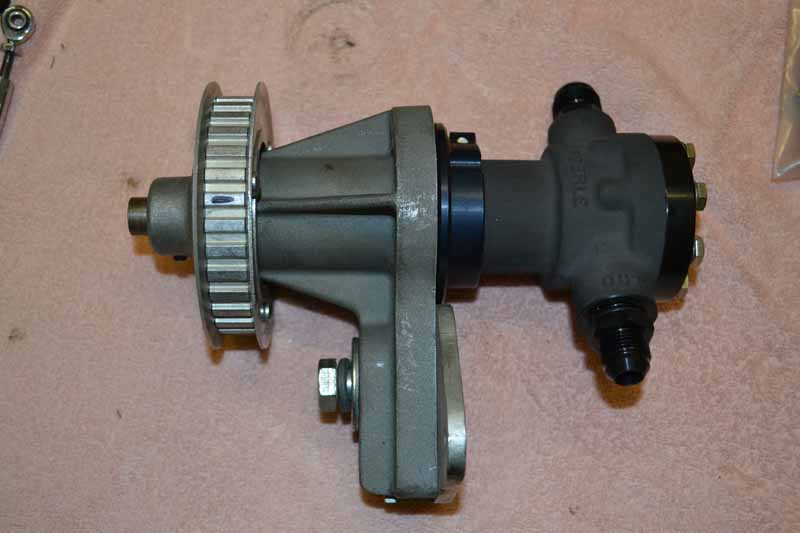

DSC_0494_smallA new Enderle 80A-1 has been purchased and the Hillborn remote mount will be modified to accept the Enderle Pump.
DSC_0498_small                                          DSC_0499_small
That’s it for a couple of weeks, other projects require my time.
